Airports for X-Plane

Canberra

Airport details

CountryAustralia
StateAustralian Capital Territory
RegionYM
AirspaceMelbourne Ctr
MunicipalityCanberra
Elevation1887ft (575m)
TimezoneGMT +10
Coordinates-35.30350, 149.19595
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYSCB
IATA codeCBR
FAA coden/a

Communication

Canberra YSCB ATIS127.450
Canberra CANBERRA MULT118.700
Canberra CANBERRA GROUND CLD121.700
Canberra CANBERRA Ground Control121.900
Canberra CANBERRA Tower118.700
Canberra MELBOURNE CENTRE CNTR125.900
Canberra CANBERRA Approach124.500
Canberra CANBERRA Approach125.900

Approach frequencies

ILS-cat-IIRW35109.518.00mi
3° GSRW35109.518.00mi
Nearby Points of Interest:
Kingston Powerhouse
-
Queanbeyan railway bridges over Queanbeyan and Molonglo Rivers
-
John Gorton Building
-
Queanbeyan railway station
-
Byrnes Mill and Millhouse
-
Christ Church, Queanbeyan
-
Tocumwal houses
-
Bungendore
-
Tharwa Primary School
-
Lanyon Homestead
-
Michelago railway station
-
Tarago
-
Bimberi Nature Reserve
-
Wee Jasper Bridge over Goodradigbee River
-
Albion Hotel, Braidwood
-
Yass Town railway station
-
Ingalara Creek railway bridge, Michelago
-
Braidwood
-
Yass Post Office
-
Yass River railway bridge, Yass
-
Gunning railway station
-
Yass Junction railway station

Runway info

Runway 17 / 35
 length3286m (10781ft)
 bearing180° / 0°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 599m (1965ft)
 blast zone0m (0ft) / 29m (95ft)
Runway 12 / 30
 length1678m (5505ft)
 bearing124° / 304°
 width30m (98ft)
 surfaceasphalt
 displ threshold0m (0ft) / 66m (217ft)

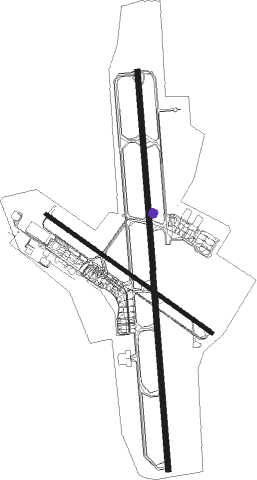

Airport layout - taxiway location A


Taxiway locations

 A  B  C  C1  C5  D  E  F
 G  H  J  K  M  P
Parking locations

 GA  Gate  Mil  QantasLink

Nearby beacons

codeidentifierdistbearingfrequency
CBCANBERRA NDB0.755°263
CBCANBERRA VOR/DME1.3359°116.70
GLBGOULBURN NDB39.947°407

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW17
 CULIN135mi19°
 AKMIR281mi39°
 TANTA247mi229°
 DUBUS282mi238°
 NONUP845mi262°
 HOWLY884mi289°
 AVBEG230mi342°
RW35
 CULIN135mi19°
 AKMIR281mi39°
 TANTA247mi229°
 DUBUS282mi238°
 NONUP845mi262°
 HOWLY884mi289°
 AVBEG230mi342°

STAR starting pointsdistanceinbound heading
RW17
 MAND2A, MAND2X29.991°
 AVBE4A29.5162°
 BUNG3A40.7238°
 RAZI6A, RAZI6W, RAZI6Y40.4252°
RW30
 BUNG3V40.7238°
RW35
 POLI8A, POLI8X39.154°
 AVBE4A29.5162°
 BUNG3A, BUNG3V40.7238°
 RAZI6Y, RAZI6W, RAZI6V, RAZI6A40.4252°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW30CBREA (283°)CBREA 7500ft
CBREI (7mi, 244°) 6380ft
RW30CBREB (305°)CBREB 7500ft
CBREI (7mi, 304°) 6380ft
RW30CBREC (331°)CBREC 7500ft
CBREI (7mi, 24°) 6380ft
 RNAVCBREI 6380ft
CBREF (5mi, 304°) 4410ft
CBREM (6mi, 304°) 2057ft
CBREH (6mi, 206°)
(8073mi, 283°) 7500ft
RW35-ZCBRSD (334°)CBRSD 7500ft
CBRSI (6mi, 287°) 5400ft
RW35-ZCBRSG (27°)CBRSG 7500ft
CBRSI (6mi, 73°) 5400ft
RW35-ZMENZI (0°)MENZI 5400ft
CBRSI (2mi, 0°) 5400ft
 RNAVCBRSI 5400ft
CBRSF (5mi, 360°) 3830ft
CBRSM (6mi, 0°) 2012ft
CBRSH (6mi, 17°)
(8083mi, 283°) 7500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUNG3ABUNGOVHFleft42 (222)°< 60000ft1.0min timedICAO rules
BUNG3VBUNGOVHFleft42 (222)°< 60000ft1.0min timedICAO rules
MAND2ANONUPVHFleft221 (41)°20000ft - 60000ft1.5min timedICAO rules
MAND2XNONUPVHFleft221 (41)°20000ft - 60000ft1.5min timedICAO rules
POLI8APOLLIVHFleft238 (58)°DME 4.0miICAO rules
POLI8XPOLLIVHFleft238 (58)°DME 4.0miICAO rules
RAZI6ARAZZIVHFleft42 (222)°DME 4.0miICAO rules
RAZI6VRAZZIVHFleft42 (222)°DME 4.0miICAO rules
RAZI6WRAZZIVHFleft42 (222)°DME 4.0miICAO rules
RAZI6YRAZZIVHFleft42 (222)°DME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
