Airports for X-Plane

Tamworth

Airport details

CountryAustralia
StateNew South Wales
RegionYB
AirspaceBrisbane Ctr
MunicipalityTamworth
Elevation1333ft (406m)
TimezoneGMT +10
Coordinates-31.08389, 150.84666
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYSTW
IATA codeTMW
FAA coden/a

Communication

Tamworth ATIS123.800
Tamworth Ground Control121.900
Tamworth Tower118.250
Tamworth Departure118.250

Approach frequencies

ILS-cat-IRW30R109.918.00mi
3° GSRW30R109.918.00mi
Nearby Points of Interest:
Werris Creek railway station
-
Quirindi railway station
-
Macdonald River railway bridge, Woolbrook
-
Walcha Road railway station

Runway info

Runway 12L / 30R
 length2202m (7224ft)
 bearing129° / 309°
 width45m (148ft)
 surfaceasphalt
Runway 06 / 24
 length839m (2753ft)
 bearing75° / 255°
 width30m (98ft)
 surfacedirt
Runway 18 / 36
 length1023m (3356ft)
 bearing190° / 10°
 width30m (98ft)
 surfacedirt
 displ threshold36m (118ft) / 0m (0ft)
Runway 12R / 30L
 length1112m (3648ft)
 bearing129° / 309°
 width18m (59ft)
 surfaceasphalt

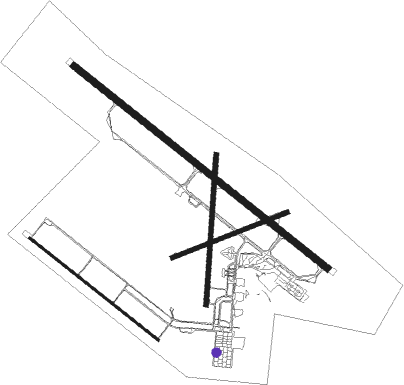

Airport layout - parking location GA3


Taxiway locations

 A  B  C  D
Parking locations

 CAR  GA  GA1  GA10  GA11  GA12  GA13  GA14
 GA15  GA16  GA17  GA18  GA2  GA3  GA4  GA5
 GA6  GA7  GA8  GA9  Gat  Gate  H1  H2
 H3  H4  H5  HA

Nearby beacons

codeidentifierdistbearingfrequency
TWTAMWORTH NDB1.1309°341
TWTAMWORTH VOR/DME1.3317°116
QDIQUIRINDI NDB29.6218°386
GDHGUNNEDAH NDB31.7282°407
ARMARMIDALE NDB51.854°401
SCOSCONE NDB57.1181°209

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LSTWWD (111°)STWWD 5600ft
STWWI (5mi, 66°) 4600ft
RW12LSTWWE (129°)STWWE 5600ft
STWWI (5mi, 129°) 4600ft
RW12LSTWWG (150°)STWWG 5600ft
STWWI (5mi, 206°) 4600ft
 RNAVSTWWI 4600ft
STWWF (5mi, 129°) 3010ft
STWWM (5mi, 129°) 1419ft
STWWH (3mi, 129°)
(8313mi, 282°) 3500ft
(turn) 5600ft
RW30RSTWEA (288°)STWEA 5600ft
STWEI (5mi, 246°) 4650ft
RW30RSTWEB (308°)STWEB 5600ft
STWEI (5mi, 308°) 4650ft
RW30RSTWEC (329°)STWEC 5600ft
STWEI (5mi, 26°) 4650ft
 RNAVSTWEI 4650ft
STWEF (5mi, 309°) 3050ft
STWEM (5mi, 309°) 1463ft
STWEH (3mi, 309°)
(8313mi, 282°) 3500ft
(turn) 5600ft
