Airports for X-Plane

Hohhot - Baita Airport

Airport details

CountryChina
StateInner Mongolia
RegionZB
AirspaceBeijing Ctr
MunicipalitySaihan
Elevation3556ft (1084m)
TimezoneGMT +8
Coordinates40.84833, 111.82333
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeZBHH
IATA codeHET
FAA coden/a

Communication

BAITA Airport ATIS126.250
BAITA Airport BAITA GROUND121.900
BAITA Airport BAITA TOWER118.100
BAITA Airport BAITA Approach124.850
BAITA Airport BAITA Departure123.850

Approach frequencies

ILS-cat-IRW08108.918.00mi
ILS-cat-IRW26109.518.00mi
3° GSRW08108.918.00mi
3° GSRW26109.518.00mi

Runway info

Runway 08 / 26
 length3603m (11821ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceconcrete
 blast zone75m (246ft) / 75m (246ft)

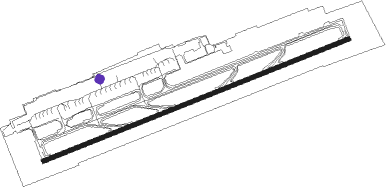

Airport layout - parking location 15


Taxiway locations

 A  B  C  D  E  F  G  H
 K  L01  L07  L09  N
Parking locations

 1  10  11  12  12A  13  14  15
 16  17  18  19  1A  2  20  21
 22  23  24  25  26  27  28  29
 3  30  31  32  33  34  35  36
 37  38  39  4  40  41  42  43
 44  45  46  46L  47  48  49  5
 50  51  52  6  61  62  63  64
 65  66  67  68  69  7  70  8
 9

Nearby beacons

codeidentifierdistbearingfrequency
FXBAITA (HOHHOT) NDB2.8259°372
KJCHENJIAYING (HOHHOT) NDB3.275°434
HETHOHHOT VOR/DME8.1148°116.90
SZLIANGCHENG NDB36.4116°282

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW08
 RUR01D, RUR03D, RUR04D, RUR9ZD75mi37°
 TMR01D, TMR9ZD, TMR04D, TMR03D85mi53°
 LUG9ZD, LUG02D, LUG01D, LUG04D44mi105°
 TUS01D, TUS03D, TUS06D, TUS9ZD, TUS02D, TUS04D65mi112°
 TOD9ZD, TOD04D, TOD03D, TOD02D, TOD01D83mi164°
 IBA03D, IBA9ZD, IBA02D, IBA01D52mi179°
 DUD01D, DUD02D, DUD03D, DUD9ZD63mi261°
RW26
 RUR11D, RUR13D, RUR8ZD, RUR12D75mi37°
 TMR11D, TMR12D, TMR13D, TMR17D, TMR8ZD, TMR14D85mi53°
 LUG11D, LUG12D, LUG13D, LUG14D, LUG8ZD44mi105°
 TUS8ZD, TUS11D, TUS12D, TUS13D, TUS14D65mi112°
 TOD8ZD, TOD13D, TOD12D, TOD11D, TOD14D83mi164°
 IBA8ZD, IBA14D, IBA13D, IBA12D, IBA11D52mi179°
 DUD8YD, DUD14D, DUD8ZD, DUD13D, DUD11D, DUD12D63mi261°

STAR starting pointsdistanceinbound heading
RW08
 VAL01A, VAL02A, VAL9YA, VAL9ZA77.775°
 TMR9ZA, TMR9YA, TMR9XA, TMR02A, TMR01A, TMR03A84.6233°
 LUG01A, LUG9ZA, LUG9YA, LUG02A43.9285°
 TOD9ZA, TOD9YA, TOD02A, TOD01A83.2344°
RW26
 VAL11A, VAL12A, VAL8ZA77.775°
 TMR8ZA, TMR8YA, TMR14A, TMR13A, TMR12A, TMR11A84.6233°
 LUG11A, LUG16A, LUG8YA, LUG8ZA43.9285°
 TOD8YA, TOD8ZA, TOD12A, TOD11A83.2344°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LUG01AHETNDBright241 (61)°> 8860ft1.0min timed230
LUG02AKJFIXleft273 (93)°> 7880ft1.0min timed230
LUG11AHETNDBright241 (61)°> 8860ft1.0min timed230
LUG8YAHH707VHFright168 (348)°> 8860ft1.0min timed230
LUG8ZAHH707VHFright168 (348)°> 8860ft1.0min timed230
LUG9YAHH612VHFleft148 (328)°> 7880ft1.0min timed230
LUG9ZAHH612VHFleft148 (328)°> 7880ft1.0min timed230
TMR01AHETNDBright241 (61)°> 8860ft1.0min timed230
TMR02AKJFIXleft273 (93)°> 7880ft1.0min timed230
TMR03AHETNDBright241 (61)°> 8860ft1.0min timed230
TMR13AHETNDBright241 (61)°> 8860ft1.0min timed230
TMR14AKJFIXleft273 (93)°> 7880ft1.0min timed230
TMR8YAHH718VHFright46 (226)°> 11800ft1.0min timed230
TMR8ZAHH718VHFright46 (226)°> 11800ft1.0min timed230
TMR8ZASUROSVHFleft345 (165)°> 8860ft1.0min timed230
TMR9XAHH611VHFleft77 (257)°> 7880ft1.0min timed230
TMR9XAHH615VHFright45 (225)°> 12800ft1.0min timed230
TMR9YAHH611VHFleft77 (257)°> 7880ft1.0min timed230
TMR9YAHH615VHFright45 (225)°> 12800ft1.0min timed230
TMR9ZAHH615VHFright45 (225)°> 12800ft1.0min timed230
TOD01AHETNDBright241 (61)°> 8860ft1.0min timed230
TOD02AKJFIXleft273 (93)°> 7880ft1.0min timed230
TOD11AHETNDBright241 (61)°> 8860ft1.0min timed230
TOD12AKJFIXleft273 (93)°> 7880ft1.0min timed230
TOD8YAHH707VHFright168 (348)°> 8860ft1.0min timed230
TOD8YAHH716VHFright183 (3)°> 12800ft1.0min timed230
TOD8ZAHH707VHFright168 (348)°> 8860ft1.0min timed230
TOD8ZAHH716VHFright183 (3)°> 12800ft1.0min timed230
TOD9YAHH612VHFleft148 (328)°> 7880ft1.0min timed230
TOD9ZAHH612VHFleft148 (328)°> 7880ft1.0min timed230
VAL01AHETNDBright241 (61)°> 8860ft1.0min timed230
VAL02AKJFIXleft273 (93)°> 7880ft1.0min timed230
VAL11AHETNDBright241 (61)°> 8860ft1.0min timed230
VAL12AKJFIXleft273 (93)°> 7880ft1.0min timed230
VAL8ZAHH707VHFright168 (348)°> 8860ft1.0min timed230
VAL9YAHH612VHFleft148 (328)°> 7880ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
