Airports for X-Plane

Hailar - Hulunbuir Hailar

Airport details

CountryChina
StateInner Mongolia
RegionZY
AirspaceShenyang Ctr
MunicipalityEwenki
Elevation2167ft (661m)
TimezoneGMT +8
Coordinates49.20500, 119.82667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZBLA
IATA codeHLD
FAA coden/a

Communication

Hulunbuir Hailar HAILAR Tower130.000
Hulunbuir Hailar HAILAR Tower118.100

Approach frequencies

ILS-cat-IRW27110.318.00mi
3° GSRW27110.318.00mi
Nearby Points of Interest:
Hulunbuir

Runway info

Runway 09 / 27
 length2791m (9157ft)
 bearing86° / 266°
 width46m (151ft)
 surfaceconcrete

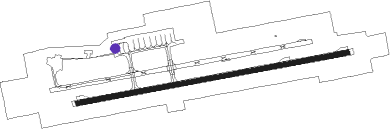

Airport layout - parking location 1


Parking locations

 1  10  11  2  3  4  5  6
 7  8  9  GA

Nearby beacons

codeidentifierdistbearingfrequency
HLDHAILAR VOR/DME0.2252°115.10
UHAILAR (HULUNBEIER) NDB1.384°529
UCXIHA NDB5.384°351

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW09
 TEP09D, TEP03D, TEP01D144mi115°
 ELP01D, ELP03D, ELP09D181mi157°
 KAG09D, KAG01D68mi272°
RW27
 TEP13D, TEP11D, TEP19D144mi115°
 ELP19D, ELP13D, ELP11D181mi157°
 KAG19D, KAG11D68mi272°

STAR starting pointsdistanceinbound heading
RW09
 KAG01A, KAG02A67.892°
 TEP01A144.2295°
 ELP01A, ELP02A181.1337°
RW27
 KAG11A67.892°
 TEP12A, TEP11A144.2295°
 ELP12A, ELP11A181.1337°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELP02AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
ELP12AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
KAG02AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
KAG11AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
TEP01AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
TEP12AHLDNDBleft289 (109)°> 4930ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
