Airports for X-Plane

Wuhan - Tianhe

Airport details

CountryChina
StateHubei
RegionZH
AirspaceWuhan Ctr
MunicipalityWuhan
Elevation115ft (35m)
TimezoneGMT +8
Coordinates30.78500, 114.20667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZHHH
IATA codeWUH
FAA coden/a

Communication

Tianhe ATIS126.200
Tianhe CDL121.800
Tianhe WUHAN Ground Control West121.650
Tianhe WUHAN Ground Control East121.975
Tianhe WUHAN Tower 2118.025
Tianhe WUHAN Tower 1124.350

Approach frequencies

ILS-cat-IIRW04R111.518.00mi
ILS-cat-IRW04L109.318.00mi
ILS-cat-IRW22R108.518.00mi
ILS-cat-IRW22L111.118.00mi
3° GSRW04L109.318.00mi
3° GSRW22R108.518.00mi
3° GSRW22L111.118.00mi
3° GSRW04R111.518.00mi
Nearby Points of Interest:
Consulate General of the United States, Wuhan
-
Dazhimen railway station
-
Baotong Temple

Runway info

Runway 04L / 22R
 length3405m (11171ft)
 bearing46° / 226°
 width45m (148ft)
 surfaceconcrete
 blast zone122m (400ft) / 121m (397ft)
Runway 04R / 22L
 length3605m (11827ft)
 bearing46° / 226°
 width45m (148ft)
 surfaceconcrete
 blast zone122m (400ft) / 121m (397ft)

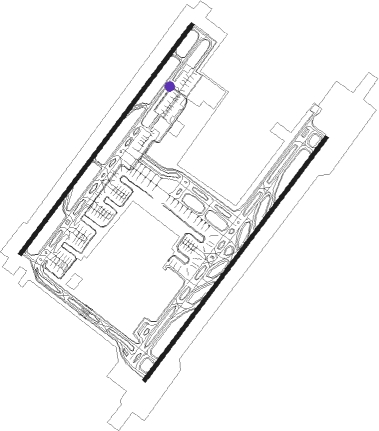

Airport layout - taxiway location C12


Taxiway locations

 B  B1  B10  B12  B9  C  C1  C10
 C11  C12  C13  C2  C3  C4  C5  C6
 C7  C8  C9  D  D10  D11  D12  D14
 D5  D6  D7  D8  D9  E  E1  E11
 E12  E14  E16  E3  E5  E6  E7  G
 G2  G3  G4  H  J  K1  K2  K3
 M  M1  M2  M3  P5
Parking locations

 101  102  103  104  105  106  107  108
 201  202  203  204  205  206  207  208
 209  210  211  212  213  214  215  216
 217  218  219  220  221  222  223  224
 301  302  303  304  305  306  307  308
 309  310  311  312  313  314  315  316
 317  318  319  320  321  322  323  324
 325  326  328  329  330  331  332  333
 334  335  336  337  338  339  340  341
 342  343  344  345  346  347  348  349
 350  351  352  353  354  355  356  357
 358  359  360  361  501  502  503  504
 505  506  507  508  509  510  511  512
 515  516  517  518  519  520  521  522
 523

Nearby beacons

codeidentifierdistbearingfrequency
WHATIANHE VOR/DME0.2225°112.20
HGTIANHE NDB11.347°254
DHBHEBAOHU VOR/DME13.1250°114.45
DHPHUANGPI VOR/DME14.572°113.75
DCDCAIDIAN VOR/DME20.8188°114.25
HOKHEKOU VOR/DME34.422°116
LKOLONGKOU VOR/DME59.1210°115.80

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW04L
 UBG09D, UBG07D, UBG03D, UBG01D57mi18°
 BIV01D, BIV03D, BIV07D, BIV09D59mi72°
 XSH09D, XSH07D, XSH01D, XSH05D59mi108°
 LKO09D, LKO07D, LKO01D59mi210°
 GUG01D, GUG09D63mi241°
RW04R
 UBG08D, UBG06D, UBG04D, UBG02D57mi18°
 BIV08D, BIV02D, BIV04D, BIV06D59mi72°
 XSH08D, XSH06D, XSH02D, XSH04D59mi108°
 LKO08D, LKO06D, LKO02D59mi210°
 GUG02D, GUG08D63mi241°
RW22L
 UBG18D, UBG12D, UBG16D57mi18°
 BIV18D, BIV14D, BIV12D, BIV16D59mi72°
 XSH18D, XSH14D, XSH12D, XSH16D59mi108°
 LKO18D, LKO16D, LKO14D, LKO12D59mi210°
 GUG16D, GUG12D63mi241°
RW22R
 UBG19D, UBG11D57mi18°
 BIV17D, BIV19D, BIV13D, BIV11D59mi72°
 XSH19D, XSH17D, XSH13D, XSH11D59mi108°
 LKO19D, LKO17D, LKO13D, LKO11D59mi210°
 GUG17D, GUG11D63mi241°

STAR starting pointsdistanceinbound heading
RW04 (ALL)
 LKO09A59.130°
RW04L
 LKO01A40.435°
 XSH02A, ONI01A13.170°
 AVP09A22.179°
 AVP01A22.780°
RW04R
 LKO01A40.435°
 XSH02A, ONI01A13.170°
 AVP09A22.179°
 AVP01A22.780°
RW22 (ALL)
 LKO19A, LKO11A59.130°
 AVP19A, AVP11A49.287°
 ONI11A, ONI19A60.4191°
 XSH18A58.6288°
RW22L
 XSH12A, XSH11A, LKO12A, AVP12A14.5252°
RW22R
 XSH12A, XSH11A, LKO12A, AVP12A14.5252°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVP01AD278YVHFright278 (98)°> 8860ft1.0min timed205
AVP09AHH420VHFright278 (98)°> 8860ft1.0min timed205
AVP11AD278SVHFright278 (98)°> 8860ft1.0min timed205
AVP12AD278SVHFright278 (98)°> 8860ft1.0min timed205
AVP18AHH518VHFright278 (98)°> 8860ft1.0min timed205
AVP19AHH518VHFright278 (98)°> 8860ft1.0min timed205
LKO01ADHB31VHFleft201 (21)°> 8860ft1.0min timed205
LKO09AHH417VHFleft196 (16)°> 8860ft1.0min timed205
LKO11ADHB31VHFleft201 (21)°> 8860ft1.0min timed205
LKO12ADHB31VHFleft201 (21)°> 8860ft1.0min timed205
LKO18AHH519VHFleft201 (21)°> 8860ft1.0min timed205
LKO19AHH519VHFleft201 (21)°> 8860ft1.0min timed205
ONI01AD360QVHFright360 (180)°> 11800ft1.0min timed220
ONI02AD360QVHFright360 (180)°> 11800ft1.0min timed220
ONI08AHH405VHFright360 (180)°> 11800ft1.0min timed220
ONI09AHH405VHFright360 (180)°> 11800ft1.0min timed220
ONI11AD170GVHFleft350 (170)°> 6890ft1.0min timed205
ONI19AHH521VHFleft1 (181)°> 6890ft1.0min timed205
XSH01AD307NVHFright127 (307)°> 11800ft1.0min timed220
XSH02AD307NVHFright127 (307)°> 11800ft1.0min timed220
XSH08AHH407VHFright127 (307)°> 11800ft1.0min timed220
XSH09AHH407VHFright127 (307)°> 11800ft1.0min timed220
XSH11AD288OVHFright108 (288)°> 11800ft1.0min timed220
XSH12AD307NVHFright127 (307)°> 11800ft1.0min timed220
XSH17AHH461VHFright99 (279)°> 11800ft1.0min timed220
XSH18AHH516VHFright154 (334)°> 11800ft1.0min timed220
XSH19AHH515VHFright108 (288)°> 11800ft1.0min timed220
*) magnetic outbound (inbound) holding course
