Airports for X-Plane

Shiyan - Shiyan Wudangshan

Airport details

CountryChina
StateHubei
RegionZH
AirspaceWuhan Ctr
MunicipalityMaojian
Elevation1065ft (325m)
TimezoneGMT +8
Coordinates32.58736, 110.90919
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZHSY
IATA codeWDS
FAA coden/a

Communication

Shiyan Wudangshan ATIS126.275
Shiyan Wudangshan Tower118.025

Runway info

Runway 13 / 31
 length2595m (8514ft)
 bearing127° / 307°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

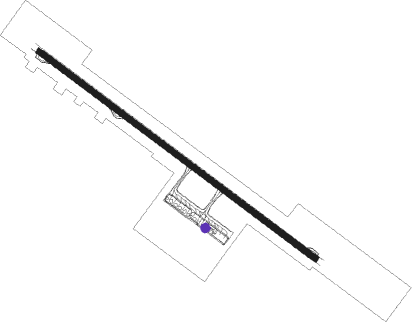

Airport layout - parking location 8


Taxiway locations

 A  B
Parking locations

 1  2  3  4  5  6  7  8
 8L  8R  9  9L  9R

Nearby beacons

codeidentifierdistbearingfrequency
DSYWUDANGSHAN VOR/DME1.6121°115.15
