Airports4XP | ZJHK | Haikou - Haikou Meilan Intl

Haikou - Haikou Meilan Intl

Airport details

Country	China
State	Hainan Province
Region	ZJ
Airspace	Sanya Ctr
Municipality	Haikou City
Elevation	74ft (23m)
Timezone	GMT +8
Coordinates	19.93333, 110.46000
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	ZJHK
IATA code	HAK
FAA code	n/a

Communication

Haikou Meilan Intl ATIS	127.650
Haikou Meilan Intl HAIKOU Approach	121.900
Haikou Meilan Intl Ground Control	121.650
Haikou Meilan Intl HAIKOU Tower	118.550
Haikou Meilan Intl HAIKOU Tower	124.300
Haikou Meilan Intl HAIKOU Approach	119.150
Haikou Meilan Intl HAIKOU Approach	123.850
Haikou Meilan Intl HAIKOU Departure	118.550

Approach frequencies

ILS-cat-II	RW10	108.95	18.00mi
ILS-cat-I	RW09	111.5	18.00mi
ILS-cat-I	RW27	108.5	18.00mi
ILS-cat-I	RW28	109.35	18.00mi
3° GS	RW09	111.5	18.00mi
3° GS	RW10	108.95	18.00mi
3° GS	RW27	108.5	18.00mi
3° GS	RW28	109.35	18.00mi

Nearby Points of Interest:

Dongzhai Port Nature Reserve

Runway info

Runway 09 / 27
	length	3599m (11808ft)
	bearing	90° / 270°
	width	45m (148ft)
	surface	concrete
	blast zone	58m (190ft) / 58m (190ft)
Runway 10 / 28
	length	3597m (11801ft)
	bearing	90° / 270°
	width	61m (200ft)
	surface	concrete
	blast zone	119m (390ft) / 119m (390ft)

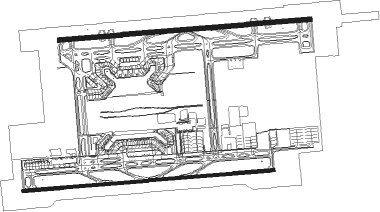

Airport layout

Taxiway locations

A	A1	A2	A3	A4	A5	A6	A7
B	B1	B10	B12	B14	B15	B16	B2
B3	B4	B5	B6	B7	B8	B9	C
D	D1	D10	D2	D3	D4	D5	D6
D7	D8	D9	N1	N2	S1	S3	T1
T2	V1	Y1	Y2

Parking locations

1	10	101	102	103	104	105	106
107	108	109	11	110	111	112	113
114	12	13	14	15	16	17	18
19	2	20	201	202	203	204	205
206	21	211	212	213	214	215	216
217	218	219	22	220	23	24	25
26	27	28	29	3	30	301	302
303	304	305	306	307	308	309	31
310	311	312	313	314	315	316	317
318	319	32	33	34	35	36	37
38	39	4	40	401	402	403	41
42	43	44	45	45L	45R	46	47
48	49	5	50	51	52	53	54
55	56	57	58	59	6	60	601
602	603	604	605	606	607	608	61
62	63	7	8	801	802	803	804
805	806	807	808	809	810	811	812
813	814	815	816	817	818	819	820
9	901

Nearby beacons

code	identifier	dist	bearing	frequency
P	MEILAN (HAIKOU) NDB	1.5	87°	402
H	HAIKOU NDB	1.6	273°	389
MLT	DONGMULANTOU VOR/DME	17.7	44°	112.70
NYB	NANYINGBINDAO VOR/DME	18.8	284°	113.30
WCF	WENCHANG VOR/DME	19.1	104°	117.50

Departure and arrival routes

Transition altitude

9800ft

Transition level

11800ft

SID end points		distance	outbound heading
RW09
	SAM1WD, SAM9WD	34mi	4°
	UPR9WD, UPR8WD, UPR2WD, UPR1WD	57mi	225°
	ASS9WD, ASS1WD	184mi	240°
	AGT1WD, AGT9WD	35mi	344°
RW10
	SAM9XD, SAM1XD	34mi	4°
	UPR2XD, UPR8XD, UPR9XD, UPR1XD	57mi	225°
	ASS1XD, ASS9XD	184mi	240°
	AGT9XD, AGT1XD	35mi	344°
RW27
	SAM1YD, SAM9YD	34mi	4°
	UPR9YD, UPR8YD, UPR2YD, UPR1YD	57mi	225°
	ASS9YD, ASS1YD	184mi	240°
	AGT9YD, AGT1YD	35mi	344°
RW28
	SAM9ZD, SAM1ZD	34mi	4°
	UPR8ZD, UPR2ZD, UPR1ZD, UPR9ZD	57mi	225°
	ASS1ZD, ASS9ZD	184mi	240°
	AGT9ZD, AGT1ZD	35mi	344°

STAR starting points		distance	inbound heading
RW09
	POR2XA	49.2	35°
	DOM7XA, POR8XA	16.9	53°
	DOM9XA	11.9	66°
	DOM1XA	12.4	68°
	ASS8XA, ASS2XA	75.7	72°
	POR1XA	20.8	77°
	DOM5XA, POR7XA, DOM6XA	30.9	81°
	RUN1XA	69.7	104°
	RUN9XA	81.7	104°
	LID1XA, ASS1XA	27.9	116°
	ASS9XA, LID9XA	27.5	118°
	POR9XA, DOM8XA	10.4	155°
	DOM2XA	10.5	155°
RW10
	POR2XA	49.2	35°
	DOM7XA, POR8XA	16.9	53°
	DOM9XA	11.9	66°
	DOM1XA	12.4	68°
	ASS2XA, ASS8XA	75.7	72°
	POR1XA	20.8	77°
	DOM6XA, POR7XA, DOM5XA	30.9	81°
	RUN9XA	81.7	104°
	RUN1XA	69.7	104°
	ASS1XA, LID1XA	27.9	116°
	LID9XA, ASS9XA	27.5	118°
	POR9XA, DOM8XA	10.4	155°
	DOM2XA	10.5	155°
RW27
	DOM1ZA, DOM9ZA	24.9	235°
	RUN8ZA, LID5ZA, DOM8ZA, ASS7ZA, POR7ZA	26.7	256°
	LID4ZA, LID6ZA, ASS6ZA, POR6ZA	26.3	280°
	POR8ZA, LID7ZA	22.6	296°
RW28
	DOM1ZA, DOM9ZA	24.9	235°
	RUN8ZA, ASS7ZA, DOM8ZA, POR7ZA, LID5ZA	26.7	256°
	POR6ZA, LID6ZA, LID4ZA, ASS6ZA	26.3	280°
	LID7ZA, POR8ZA	22.6	296°

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ASS1XA	D322J	VHF	left	322 (142)°		1.0min timed	205
ASS1XA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
ASS1ZA	D006L	VHF	right	6 (186)°	> 2960ft	1.0min timed	205
ASS1ZA	D089X	VHF	right	269 (89)°	> 3940ft	1.0min timed	205
ASS1ZA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
ASS2ZA	D218V	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
ASS2ZA	WCF	NDB	right	272 (92)°		1.0min timed	205
ASS6ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
ASS6ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
ASS7ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
ASS7ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
ASS7ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
ASS8ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
ASS8ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
ASS9XA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
ASS9XA	HK450	VHF	left	321 (141)°		1.0min timed	205
ASS9ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
ASS9ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
ASS9ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
DOM1XA	D006T	VHF	left	6 (186)°		1.0min timed	205
DOM1XA	WCF	NDB	right	272 (92)°		1.0min timed	205
DOM1XA	WCF30	VHF	left	92 (272)°	> 2960ft	1.0min timed	205
DOM1ZA	D006L	VHF	right	6 (186)°	> 2960ft	1.0min timed	205
DOM1ZA	D006T	VHF	left	6 (186)°		1.0min timed	205
DOM2XA	D006T	VHF	left	6 (186)°		1.0min timed	205
DOM2XA	D260Q	VHF	left	80 (260)°	> 3940ft	1.0min timed	205
DOM2XA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
DOM5XA	HK460	VHF	right	6 (186)°		1.0min timed	205
DOM5XA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM5XA	WCF	NDB	right	272 (92)°		1.0min timed	205
DOM6XA	HK411	VHF	left	92 (272)°	> 2960ft	1.0min timed	205
DOM6XA	HK460	VHF	right	6 (186)°		1.0min timed	205
DOM6XA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM6XA	WCF	NDB	right	272 (92)°		1.0min timed	205
DOM7XA	HK460	VHF	right	6 (186)°		1.0min timed	205
DOM7XA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM7XA	WCF	NDB	right	272 (92)°		1.0min timed	205
DOM8XA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
DOM8XA	HK432	VHF	left	80 (260)°	> 3940ft	1.0min timed	205
DOM8XA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM8ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
DOM8ZA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM9XA	HK411	VHF	left	92 (272)°	> 2960ft	1.0min timed	205
DOM9XA	HK460	VHF	right	6 (186)°		1.0min timed	205
DOM9XA	HK560	VHF	left	6 (186)°		1.0min timed	205
DOM9XA	WCF	NDB	right	272 (92)°		1.0min timed	205
DOM9ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
DOM9ZA	HK560	VHF	left	6 (186)°		1.0min timed	205
LID1XA	D322J	VHF	left	322 (142)°		1.0min timed	205
LID1XA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
LID1ZA	D006L	VHF	right	6 (186)°	> 2960ft	1.0min timed	205
LID1ZA	D089X	VHF	right	269 (89)°	> 3940ft	1.0min timed	205
LID1ZA	D322S	VHF	left	322 (142)°		1.0min timed	205
LID1ZA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
LID4ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID4ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID4ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
LID4ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
LID5ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID5ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID5ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
LID5ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
LID6ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID6ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID6ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
LID6ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
LID7ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID7ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID7ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
LID7ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
LID8ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID8ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID8ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
LID8ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
LID9XA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID9XA	HK450	VHF	left	321 (141)°		1.0min timed	205
LID9ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
LID9ZA	HK451	VHF	left	321 (141)°		1.0min timed	205
LID9ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
LID9ZA	HK510	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
POR1XA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
POR1ZA	D006L	VHF	right	6 (186)°	> 2960ft	1.0min timed	205
POR1ZA	D089X	VHF	right	269 (89)°	> 3940ft	1.0min timed	205
POR1ZA	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
POR2ZA	D218V	VHF	right	272 (92)°	> 2960ft	1.0min timed	205
POR2ZA	WCF	NDB	right	272 (92)°		1.0min timed	205
POR6ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
POR7ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
POR7ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
POR8ZA	HK506	VHF	right	272 (92)°		1.0min timed	205
POR9XA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
POR9XA	HK432	VHF	left	80 (260)°	> 3940ft	1.0min timed	205
POR9ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
POR9ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
RUN1XA	NYB63	VHF	left	287 (107)°		1.0min timed	205
RUN1Z	D006L	VHF	right	6 (186)°	> 2960ft	1.0min timed	205
RUN1Z	D089X	VHF	right	269 (89)°	> 3940ft	1.0min timed	205
RUN1Z	NYB	NDB	left	322 (142)°	> 2960ft	1.0min timed	205
RUN1Z	NYB63	VHF	left	287 (107)°		1.0min timed	205
RUN8ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
RUN8ZA	HK490	VHF	left	287 (107)°		1.0min timed	205
RUN8ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
RUN8ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
RUN9XA	HK490	VHF	left	287 (107)°		1.0min timed	205
RUN9ZA	HK430	VHF	left	2 (182)°	> 2960ft	1.0min timed	205
RUN9ZA	HK490	VHF	left	287 (107)°		1.0min timed	205
RUN9ZA	HK526	VHF	right	2 (182)°		1.0min timed	205
RUN9ZA	HK530	VHF	right	272 (92)°	> 3940ft	1.0min timed	205
*) magnetic outbound (inbound) holding course
