Haikou - Haikou Meilan Intl
Airport details
| Country | China |
| State | Hainan Province |
| Region | ZJ |
| Airspace | Sanya Ctr |
| Municipality | Haikou City |
| Elevation | 74ft (23m) |
| Timezone | GMT +8 |
| Coordinates | 19.93333, 110.46000 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ZJHK |
| IATA code | HAK |
| FAA code | n/a |
Communication
| Haikou Meilan Intl ATIS | 127.650 |
| Haikou Meilan Intl HAIKOU Approach | 121.900 |
| Haikou Meilan Intl Ground Control | 121.650 |
| Haikou Meilan Intl HAIKOU Tower | 118.550 |
| Haikou Meilan Intl HAIKOU Tower | 124.300 |
| Haikou Meilan Intl HAIKOU Approach | 119.150 |
| Haikou Meilan Intl HAIKOU Approach | 123.850 |
| Haikou Meilan Intl HAIKOU Departure | 118.550 |
Approach frequencies
| ILS-cat-II | RW10 | 108.95 | 18.00mi |
| ILS-cat-I | RW09 | 111.5 | 18.00mi |
| ILS-cat-I | RW27 | 108.5 | 18.00mi |
| ILS-cat-I | RW28 | 109.35 | 18.00mi |
| 3° GS | RW09 | 111.5 | 18.00mi |
| 3° GS | RW10 | 108.95 | 18.00mi |
| 3° GS | RW27 | 108.5 | 18.00mi |
| 3° GS | RW28 | 109.35 | 18.00mi |
Nearby Points of Interest:
Dongzhai Port Nature Reserve
Runway info
Runway 09 / 27  | ||
| length | 3599m (11808ft) | |
| bearing | 90° / 270° | |
| width | 45m (148ft) | |
| surface | concrete | |
| blast zone | 58m (190ft) / 58m (190ft) | |
| Runway 10 / 28 | ||
| length | 3597m (11801ft) | |
| bearing | 90° / 270° | |
| width | 61m (200ft) | |
| surface | concrete | |
| blast zone | 119m (390ft) / 119m (390ft) | |

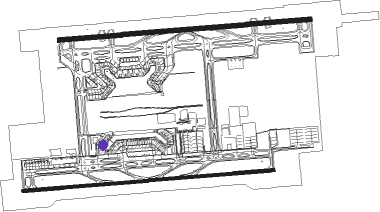

Airport layout - parking location 4
Taxiway locations
|
Parking locations
|
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| P | MEILAN (HAIKOU) NDB | 1.5 | 87° | 402 |
| H | HAIKOU NDB | 1.6 | 273° | 389 |
| MLT | DONGMULANTOU VOR/DME | 17.7 | 44° | 112.70 |
| NYB | NANYINGBINDAO VOR/DME | 18.8 | 284° | 113.30 |
| WCF | WENCHANG VOR/DME | 19.1 | 104° | 117.50 |
Departure and arrival routes
| Transition altitude | 9800ft |
| Transition level | 11800ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW09 | |||
| SAM1WD, SAM9WD | 34mi | 4° | |
| UPR9WD, UPR8WD, UPR2WD, UPR1WD | 57mi | 225° | |
| ASS9WD, ASS1WD | 184mi | 240° | |
| AGT1WD, AGT9WD | 35mi | 344° | |
| RW10 | |||
| SAM9XD, SAM1XD | 34mi | 4° | |
| UPR2XD, UPR8XD, UPR9XD, UPR1XD | 57mi | 225° | |
| ASS1XD, ASS9XD | 184mi | 240° | |
| AGT9XD, AGT1XD | 35mi | 344° | |
| RW27 | |||
| SAM1YD, SAM9YD | 34mi | 4° | |
| UPR9YD, UPR8YD, UPR2YD, UPR1YD | 57mi | 225° | |
| ASS9YD, ASS1YD | 184mi | 240° | |
| AGT9YD, AGT1YD | 35mi | 344° | |
| RW28 | |||
| SAM9ZD, SAM1ZD | 34mi | 4° | |
| UPR8ZD, UPR2ZD, UPR1ZD, UPR9ZD | 57mi | 225° | |
| ASS1ZD, ASS9ZD | 184mi | 240° | |
| AGT9ZD, AGT1ZD | 35mi | 344° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW09 | |||
| POR2XA | 49.2 | 35° | |
| DOM7XA, POR8XA | 16.9 | 53° | |
| DOM9XA | 11.9 | 66° | |
| DOM1XA | 12.4 | 68° | |
| ASS8XA, ASS2XA | 75.7 | 72° | |
| POR1XA | 20.8 | 77° | |
| DOM5XA, POR7XA, DOM6XA | 30.9 | 81° | |
| RUN1XA | 69.7 | 104° | |
| RUN9XA | 81.7 | 104° | |
| LID1XA, ASS1XA | 27.9 | 116° | |
| ASS9XA, LID9XA | 27.5 | 118° | |
| POR9XA, DOM8XA | 10.4 | 155° | |
| DOM2XA | 10.5 | 155° | |
| RW10 | |||
| POR2XA | 49.2 | 35° | |
| DOM7XA, POR8XA | 16.9 | 53° | |
| DOM9XA | 11.9 | 66° | |
| DOM1XA | 12.4 | 68° | |
| ASS2XA, ASS8XA | 75.7 | 72° | |
| POR1XA | 20.8 | 77° | |
| DOM6XA, POR7XA, DOM5XA | 30.9 | 81° | |
| RUN9XA | 81.7 | 104° | |
| RUN1XA | 69.7 | 104° | |
| ASS1XA, LID1XA | 27.9 | 116° | |
| LID9XA, ASS9XA | 27.5 | 118° | |
| POR9XA, DOM8XA | 10.4 | 155° | |
| DOM2XA | 10.5 | 155° | |
| RW27 | |||
| DOM1ZA, DOM9ZA | 24.9 | 235° | |
| RUN8ZA, LID5ZA, DOM8ZA, ASS7ZA, POR7ZA | 26.7 | 256° | |
| LID4ZA, LID6ZA, ASS6ZA, POR6ZA | 26.3 | 280° | |
| POR8ZA, LID7ZA | 22.6 | 296° | |
| RW28 | |||
| DOM1ZA, DOM9ZA | 24.9 | 235° | |
| RUN8ZA, ASS7ZA, DOM8ZA, POR7ZA, LID5ZA | 26.7 | 256° | |
| POR6ZA, LID6ZA, LID4ZA, ASS6ZA | 26.3 | 280° | |
| LID7ZA, POR8ZA | 22.6 | 296° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ASS1XA | D322J | VHF | left | 322 (142)° | 1.0min timed | 205 | |
| ASS1XA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| ASS1ZA | D006L | VHF | right | 6 (186)° | > 2960ft | 1.0min timed | 205 |
| ASS1ZA | D089X | VHF | right | 269 (89)° | > 3940ft | 1.0min timed | 205 |
| ASS1ZA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| ASS2ZA | D218V | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| ASS2ZA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| ASS6ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| ASS6ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| ASS7ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| ASS7ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| ASS7ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| ASS8ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| ASS8ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| ASS9XA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| ASS9XA | HK450 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| ASS9ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| ASS9ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| ASS9ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| DOM1XA | D006T | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM1XA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| DOM1XA | WCF30 | VHF | left | 92 (272)° | > 2960ft | 1.0min timed | 205 |
| DOM1ZA | D006L | VHF | right | 6 (186)° | > 2960ft | 1.0min timed | 205 |
| DOM1ZA | D006T | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM2XA | D006T | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM2XA | D260Q | VHF | left | 80 (260)° | > 3940ft | 1.0min timed | 205 |
| DOM2XA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| DOM5XA | HK460 | VHF | right | 6 (186)° | 1.0min timed | 205 | |
| DOM5XA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM5XA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| DOM6XA | HK411 | VHF | left | 92 (272)° | > 2960ft | 1.0min timed | 205 |
| DOM6XA | HK460 | VHF | right | 6 (186)° | 1.0min timed | 205 | |
| DOM6XA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM6XA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| DOM7XA | HK460 | VHF | right | 6 (186)° | 1.0min timed | 205 | |
| DOM7XA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM7XA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| DOM8XA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| DOM8XA | HK432 | VHF | left | 80 (260)° | > 3940ft | 1.0min timed | 205 |
| DOM8XA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM8ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| DOM8ZA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM9XA | HK411 | VHF | left | 92 (272)° | > 2960ft | 1.0min timed | 205 |
| DOM9XA | HK460 | VHF | right | 6 (186)° | 1.0min timed | 205 | |
| DOM9XA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| DOM9XA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| DOM9ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| DOM9ZA | HK560 | VHF | left | 6 (186)° | 1.0min timed | 205 | |
| LID1XA | D322J | VHF | left | 322 (142)° | 1.0min timed | 205 | |
| LID1XA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| LID1ZA | D006L | VHF | right | 6 (186)° | > 2960ft | 1.0min timed | 205 |
| LID1ZA | D089X | VHF | right | 269 (89)° | > 3940ft | 1.0min timed | 205 |
| LID1ZA | D322S | VHF | left | 322 (142)° | 1.0min timed | 205 | |
| LID1ZA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| LID4ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID4ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID4ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| LID4ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| LID5ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID5ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID5ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| LID5ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| LID6ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID6ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID6ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| LID6ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| LID7ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID7ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID7ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| LID7ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| LID8ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID8ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID8ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| LID8ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| LID9XA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID9XA | HK450 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID9ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| LID9ZA | HK451 | VHF | left | 321 (141)° | 1.0min timed | 205 | |
| LID9ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| LID9ZA | HK510 | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| POR1XA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| POR1ZA | D006L | VHF | right | 6 (186)° | > 2960ft | 1.0min timed | 205 |
| POR1ZA | D089X | VHF | right | 269 (89)° | > 3940ft | 1.0min timed | 205 |
| POR1ZA | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| POR2ZA | D218V | VHF | right | 272 (92)° | > 2960ft | 1.0min timed | 205 |
| POR2ZA | WCF | NDB | right | 272 (92)° | 1.0min timed | 205 | |
| POR6ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| POR7ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| POR7ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| POR8ZA | HK506 | VHF | right | 272 (92)° | 1.0min timed | 205 | |
| POR9XA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| POR9XA | HK432 | VHF | left | 80 (260)° | > 3940ft | 1.0min timed | 205 |
| POR9ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| POR9ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| RUN1XA | NYB63 | VHF | left | 287 (107)° | 1.0min timed | 205 | |
| RUN1Z | D006L | VHF | right | 6 (186)° | > 2960ft | 1.0min timed | 205 |
| RUN1Z | D089X | VHF | right | 269 (89)° | > 3940ft | 1.0min timed | 205 |
| RUN1Z | NYB | NDB | left | 322 (142)° | > 2960ft | 1.0min timed | 205 |
| RUN1Z | NYB63 | VHF | left | 287 (107)° | 1.0min timed | 205 | |
| RUN8ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| RUN8ZA | HK490 | VHF | left | 287 (107)° | 1.0min timed | 205 | |
| RUN8ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| RUN8ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| RUN9XA | HK490 | VHF | left | 287 (107)° | 1.0min timed | 205 | |
| RUN9ZA | HK430 | VHF | left | 2 (182)° | > 2960ft | 1.0min timed | 205 |
| RUN9ZA | HK490 | VHF | left | 287 (107)° | 1.0min timed | 205 | |
| RUN9ZA | HK526 | VHF | right | 2 (182)° | 1.0min timed | 205 | |
| RUN9ZA | HK530 | VHF | right | 272 (92)° | > 3940ft | 1.0min timed | 205 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
