Airports for X-Plane

Sanya - Sanya Phoenix Intl'

Airport details

CountryChina
StateHainan Province
RegionZJ
AirspaceSanya Ctr
MunicipalitySanya City
Elevation92ft (28m)
TimezoneGMT +8
Coordinates18.30167, 109.41333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZJSY
IATA codeSYX
FAA coden/a

Communication

Sanya Phoenix Intl' ATIS126.450
Sanya Phoenix Intl' Fenghuang Ground121.700
Sanya Phoenix Intl' Fenghuang Apron121.600
Sanya Phoenix Intl' Fenghuang Tower118.150
Sanya Phoenix Intl' Sanya Approach 01127.925
Sanya Phoenix Intl' Sanya Approach 02125.550

Approach frequencies

ILS-cat-IRW26108.518.00mi
ILS-cat-IRW08109.518.00mi
3° GSRW26108.518.00mi
3° GSRW08109.518.00mi

Runway info

Runway 08 / 26
 length3396m (11142ft)
 bearing83° / 263°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

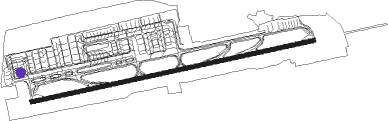

Airport layout - parking location 211


Taxiway locations

 A  A1  A2  D
Parking locations

 201  202  203  204  205  206  207  208
 209  210  211  212  Gate  Ramp  Stand

Nearby beacons

codeidentifierdistbearingfrequency
HUTFENGHUANG VOR/DME1.479°114.70
KPHOENIX INTL (SANYA) NDB1.6265°305
ALSANYA NDB5.382°205
WLBAOLONG NDB11.2357°426
SYXSANYA VOR/DME13.6272°112.50

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW08
 POR2YD, POR8YD, POR9YD, POR1YD65mi31°
 ATA1YD, ATA9YD38mi191°
 KAG9YD, KAG2YD, KAG1YD41mi201°
RW26
 POR8ZD, POR2ZD, POR1ZD, POR9ZD65mi31°
 ATA9ZD, ATA1ZD38mi191°
 KAG9ZD, KAG1ZD41mi201°

STAR starting pointsdistanceinbound heading
RW08
 DAB2YA, DAB8YA, DAB9YA74.2170°
 UPR8YA, UPR9YA60.4201°
RW26
 DAB9ZA, DAB8ZA, DAB2ZA, DAB1ZA74.2170°
 UPR8ZA, UPR9ZA60.4201°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DAB1YAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB1ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB2YAHUTNDBleft70 (250)°> 4930ft1.0min timed205
DAB2YAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB2ZAHUTNDBleft70 (250)°> 4930ft1.0min timed205
DAB2ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB8YAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB8ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB9YAWLFIXleft26 (206)°> 7880ft1.0min timed205
DAB9ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
KAG1YAAVHFright56 (236)°14000ft - 60000ft1.5min timedICAO rules
KAG1ZAAVHFright56 (236)°14000ft - 60000ft1.5min timedICAO rules
KAG2YAAVHFright56 (236)°14000ft - 60000ft1.5min timedICAO rules
KAG2YASYXNDBright353 (173)°> 3940ft1.0min timed205
KAG2ZAAVHFright56 (236)°14000ft - 60000ft1.5min timedICAO rules
KAG2ZAHUTNDBleft70 (250)°> 4930ft1.0min timed205
KAG8ZASY508VHFright182 (2)°> 5910ft1.0min timed220
KAG9YASY462VHFright173 (353)°> 3940ft1.0min timed220
KAG9ZASYXNDBright353 (173)°> 3940ft1.0min timed205
UPR1YAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR1ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR2YAHUTNDBleft70 (250)°> 4930ft1.0min timed205
UPR2YAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR2ZAHUTNDBleft70 (250)°> 4930ft1.0min timed205
UPR2ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR8YAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR8ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR9YAWLFIXleft26 (206)°> 7880ft1.0min timed205
UPR9ZAWLFIXleft26 (206)°> 7880ft1.0min timed205
*) magnetic outbound (inbound) holding course
