Airports for X-Plane

Dunhuang

Airport details

CountryChina
StateGansu
RegionZL
AirspaceLanzhou Ctr
MunicipalityDunhuang City
Elevation3688ft (1124m)
TimezoneGMT +8
Coordinates40.16550, 94.80600
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZLDH
IATA codeDNH
FAA coden/a

Communication

No airport communication available for ZLDH

Approach frequencies

ILS-cat-IRW26108.718.00mi
ILS-cat-IRW08109.318.00mi
3° GSRW26108.718.00mi
3° GSRW08109.318.00mi
Nearby Points of Interest:
Mogao Caves
-
Xuanquanzhi

Runway info

Runway 08 / 26
 length3393m (11132ft)
 bearing85° / 265°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

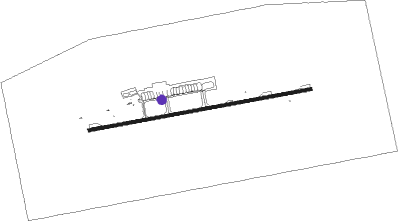

Airport layout - taxiway location H


Taxiway locations

 A  B  C  H
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
DNHDUNHUANG VOR/DME1.793°115.50

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW08
 NUK01D, NUK09D103mi13°
 VIK09D, VIK01D70mi115°
 TUS09D, TUS01D133mi247°
 BIK09D, BIK01D63mi308°
RW26
 NUK19D, NUK11D103mi13°
 VIK11D, VIK19D70mi115°
 TUS11D, TUS19D133mi247°
 BIK19D, BIK11D63mi308°

STAR starting pointsdistanceinbound heading
RW08
 TUS09A, TUS02A, TUS01A132.867°
 MOV01A, MOV02A, MOV09A64.8117°
 NUK01A, NUK02A, NUK09A103.4193°
 TOD09A, TOD01A89.6286°
RW26
 TUS19A, TUS11A132.867°
 MOV11A, MOV19A64.8117°
 NUK11A, NUK19A, NUK12A103.4193°
 TOD11A, TOD19A89.6286°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MOV02ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
MOV09ADH603VHFright354 (174)°> 6890ft1.0min timedICAO rules
MOV11ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
MOV19ADH703VHFleft354 (174)°> 8860ft1.0min timedICAO rules
NUK02ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
NUK09ADH603VHFright354 (174)°> 6890ft1.0min timedICAO rules
NUK12ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
NUK19ADH703VHFleft354 (174)°> 8860ft1.0min timedICAO rules
TOD01ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
TOD09ADH603VHFright354 (174)°> 6890ft1.0min timedICAO rules
TOD19ADH704VHFright84 (264)°> 8860ft1.0min timedICAO rules
TUS02ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
TUS09ADH604VHFleft264 (84)°> 7880ft1.0min timedICAO rules
TUS11ADNHNDBright84 (264)°> 7880ft1.0min timedICAO rules
TUS19ADH703VHFleft354 (174)°> 8860ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
