Yinchuan - Yinchuan Hedong Intl'
Airport details
| Country | China |
| State | Ningxia |
| Region | ZL |
| Airspace | Lanzhou Ctr |
| Municipality | Yongning |
| Elevation | 3744ft (1141m) |
| Timezone | GMT +8 |
| Coordinates | 38.32000, 106.39333 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ZLIC |
| IATA code | INC |
| FAA code | n/a |
Communication
| Yinchuan Hedong Intl' ATIS | 126.650 |
| Yinchuan Hedong Intl' Yinchuan Ground | 121.800 |
| Yinchuan Hedong Intl' Yinchuan Apron | 121.950 |
| Yinchuan Hedong Intl' Yinchuan Operation Control | 121.600 |
| Yinchuan Hedong Intl' Yinchuan Tower | 118.350 |
| Yinchuan Hedong Intl' Yinchuan Approach 03 | 126.075 |
| Yinchuan Hedong Intl' Yinchuan Approach 04 | 119.400 |
| Yinchuan Hedong Intl' Yinchuan Approach 01 | 124.050 |
| Yinchuan Hedong Intl' Yinchuan Approach STBY | 119.100 |
| Yinchuan Hedong Intl' Yinchuan Approach 02 | 125.600 |
Approach frequencies
| ILS-cat-I | RW03 | 109.3 | 18.00mi |
| ILS-cat-I | RW21 | 108.5 | 18.00mi |
| 3° GS | RW03 | 109.3 | 18.00mi |
| 3° GS | RW21 | 108.5 | 18.00mi |
Nearby Points of Interest:
Shuidonggou
-Najiahu mosque
-Hongfo Pagoda

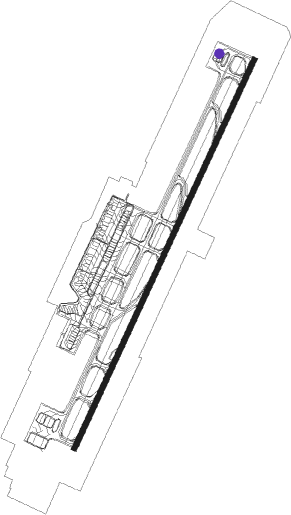

Runway info
| Runway 03 / 21 | ||
| length | 3603m (11821ft) | |
| bearing | 36° / 216° | |
| width | 45m (148ft) | |
| surface | concrete | |
| blast zone | 120m (394ft) / 60m (197ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| V | HEDONG (YINCHUAN) NDB | 1.5 | 32° | 249 |
| YHD | YINCHUAN VOR/DME | 1.7 | 32° | 112 |
| DWZ | WUZHONG VOR/DME | 24 | 187° | 112.40 |
Departure and arrival routes
| Transition altitude | 9843ft |
| Transition level | 11811ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| DOX08D, DOX03D, DOX01D | 62mi | 59° | |
| DOM03D, DOM01D, DOM08D | 60mi | 159° | |
| BEL09D, BEL08D, BEL04D, BEL02D, BEL03D, BEL01D | 52mi | 252° | |
| OPU09D, OPU08D, OPU03D, OPU01D | 66mi | 288° | |
| RW21 | |||
| DOX13D, DOX18D, DOX11D | 62mi | 59° | |
| DOM11D, DOM13D, DOM18D | 60mi | 159° | |
| BEL11D, BEL19D, BEL13D | 52mi | 252° | |
| OPU11D, OPU12D, OPU13D, OPU14D, OPU18D, OPU19D | 66mi | 288° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW03 | |||
| LUV03A, LUV09A, LUV01A, LUV08A | 50.8 | 60° | |
| OPU08A, OPU04A, OPU03A, OPU01A, OPU09A | 66.1 | 108° | |
| AGV01A, AGV03A, AGV08A | 48.9 | 226° | |
| IDG01A, IDG03A, IDG08A | 61.6 | 327° | |
| RW21 | |||
| LUV11A, LUV18A, LUV19A, LUV13A | 50.8 | 60° | |
| OPU11A, OPU13A, OPU18A, OPU19A | 66.1 | 108° | |
| AGV11A, AGV13A, AGV18A | 48.9 | 226° | |
| IDG18A, IDG11A, IDG13A | 61.6 | 327° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| AGV01A | DWZ56 | VHF | left | 29 (209)° | > 11800ft | 1.0min timed | ICAO rules |
| AGV03A | DWZ56 | VHF | left | 29 (209)° | > 11800ft | 1.0min timed | ICAO rules |
| AGV08A | YC720 | VHF | left | 32 (212)° | > 8860ft | 1.0min timed | ICAO rules |
| AGV11A | YHD29 | VHF | left | 32 (212)° | > 8860ft | 1.0min timed | ICAO rules |
| AGV13A | YHD29 | VHF | left | 32 (212)° | > 8860ft | 1.0min timed | ICAO rules |
| AGV18A | YC820 | VHF | left | 32 (212)° | > 8860ft | 1.0min timed | ICAO rules |
| IDG01A | YHD36 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| IDG03A | YHD36 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| IDG08A | YC722 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| IDG11A | YHD36 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| IDG13A | YHD36 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| IDG18A | YC722 | VHF | left | 158 (338)° | > 9850ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
