Airports for X-Plane

Lanzhou - Lanzhou Zhongchuan

Airport details

CountryChina
StateGansu
RegionZL
AirspaceLanzhou Ctr
MunicipalityZhongchuan
Elevation6388ft (1947m)
TimezoneGMT +8
Coordinates36.51522, 103.62081
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZLLL
IATA codeLHW
FAA coden/a

Communication

No airport communication available for ZLLL

Approach frequencies

ILS-cat-IRW18108.518.00mi
ILS-cat-IRW36109.318.00mi
3° GSRW18108.518.00mi
3° GSRW36109.318.00mi
Nearby Points of Interest:
Lanzhou Fu Chenghuang Miao

Runway info

Runway 18 / 36
 length4012m (13163ft)
 bearing176° / 356°
 width45m (148ft)
 surfaceconcrete

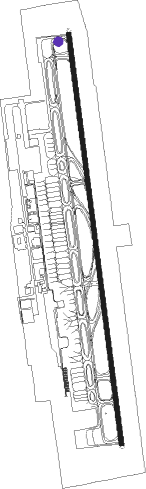

Airport layout - taxiway location A1


Taxiway locations

 A  A1  A2  A7  A8  A9  B  B7
Parking locations

 Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
DNCLANZHOU VOR/DME1.5356°114
DJCWANGJIACHUAN VOR/DME17.5325°115.20
DZHZHONGHE VOR/DME18.8148°116
JTAJINGTAI VOR/DME46.434°114.90

Departure and arrival routes

Transition altitude13779ft
Transition level15748ft
SID end pointsdistanceoutbound heading
RW18
 AKM09D, AKM01D66mi12°
 LEV09D, LEV01D63mi55°
 IRS02D, IRS09D, IRS08D, IRS01D58mi115°
 BES01D, BES09D, BES08D, BES02D51mi144°
 AND09D, AND01D76mi306°
RW36
 AKM19D, AKM11D66mi12°
 LEV11D, LEV19D63mi55°
 IRS19D, IRS12D, IRS11D58mi115°
 BES19D, BES11D, BES12D51mi144°
 AND19D, AND11D76mi306°

STAR starting pointsdistanceinbound heading
RW18
 AVB01A, AVB09A72.3115°
 AKM01A, AKM09A66.1192°
 OVT09A, OVT02A, OVT01A54.3276°
 BES09A, BES08A, BES03A, BES02A, BES01A51.3324°
RW36
 AVB19A38.6113°
 AVB11A72.3115°
 AKM12A, AKM11A66.1192°
 AKM17A, AKM19A46.4214°
 OVT19A, OVT12A, OVT11A54.3276°
 BES19A, BES17A, BES13A, BES12A, BES11A51.3324°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKM01AD032QVHFleft90 (270)°> 11820ft1.0min timed230
AKM09ALL905VHFright151 (331)°> 11820ft1.0min timed230
AKM11ADZHNDBright82 (262)°> 10830ft1.0min timed230
AKM12AD275QVHFleft275 (95)°> 10830ft1.0min timed230
AKM17ALL923VHFright323 (143)°> 10830ft1.0min timed230
AKM19ADZHNDBright82 (262)°> 10830ft1.0min timed230
AVB01ADJCNDBleft180 (0)°> 11820ft1.0min timed230
AVB09ADJCNDBleft180 (0)°> 11820ft1.0min timed230
AVB11AD275QVHFleft275 (95)°> 10830ft1.0min timed230
AVB19ALL923VHFright323 (143)°> 10830ft1.0min timed230
BES01AD032QVHFleft90 (270)°> 11820ft1.0min timed230
BES02AD032QVHFleft90 (270)°> 11820ft1.0min timed230
BES03ADJCNDBleft180 (0)°> 11820ft1.0min timed230
BES08ADJCNDBleft180 (0)°> 11820ft1.0min timed230
BES09ALL905VHFright151 (331)°> 11820ft1.0min timed230
BES11ADZHNDBright82 (262)°> 10830ft1.0min timed230
BES12AD275QVHFleft275 (95)°> 10830ft1.0min timed230
BES13ADZHNDBright82 (262)°> 10830ft1.0min timed230
BES17ADZHNDBright82 (262)°> 10830ft1.0min timed230
BES19ADZHNDBright82 (262)°> 10830ft1.0min timed230
OVT01AD032QVHFleft90 (270)°> 11820ft1.0min timed230
OVT02AD032QVHFleft90 (270)°> 11820ft1.0min timed230
OVT09ALL905VHFright151 (331)°> 11820ft1.0min timed230
OVT11ADZHNDBright82 (262)°> 10830ft1.0min timed230
OVT12AD275QVHFleft275 (95)°> 10830ft1.0min timed230
OVT19ADZHNDBright82 (262)°> 10830ft1.0min timed230
*) magnetic outbound (inbound) holding course
