Airports for X-Plane

Ningbo - Lishe

Airport details

CountryChina
StateZhejiang
RegionZS
AirspaceShanghai Ctr
MunicipalityNingbo
Elevation13ft (4m)
TimezoneGMT +8
Coordinates29.82667, 121.46333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSNB
IATA codeNGB
FAA coden/a

Communication

Lishe Ningbo ATIS126.450
Lishe Ningbo Ground121.950
Lishe Ningbo Tower118.350
Lishe Ningbo Approach125.450

Approach frequencies

ILS-cat-IRW13108.918.00mi
ILS-cat-IRW31110.918.00mi
3.2° GSRW13108.918.00mi
3° GSRW31110.918.00mi
Nearby Points of Interest:
Lin's Residence on Zijin Street
-
Qin's Ancestral Temple
-
Tianning Temple
-
Ningbo Banking Guild Hall
-
Sacred Heart Cathedral
-
Guangji Bridge, Fenghua
-
Tuoshan Weir
-
Cicheng Confucian Temple
-
Erling Pagoda
-
Tombs near Dongqian Lake
-
Small Villa, Xikou
-
Wenchang Pavilion
-
Hengsheng Stone Arch
-
Chiang's Ancestral Temple
-
Mohe Temple, Xikou
-
Fenghao House
-
Tomb of Shi Miyuan
-
Yutai Salt Store
-
Tomb of Chiang Kai-shek‎'s mother
-
Ashoka Temple
-
Former residence of Yu Qiaqing in Longshan
-
Zishan Site
-
Hongyuan Fort

Runway info

Runway 13 / 31
 length3198m (10492ft)
 bearing120° / 300°
 width45m (148ft)
 surfaceconcrete
 displ threshold150m (492ft) / 0m (0ft)
 blast zone0m (0ft) / 60m (197ft)

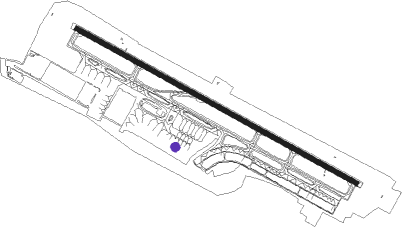

Airport layout - parking location 315


Taxiway locations

 A  A1  A3  A4  A5  A7  B  B13
 B2  B9  K1  L2
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  3  305  306  307  308
 309  310  311  312  313  314  315  316
 317  318  326  327  328  329  330  331
 4  5  510  511  512  513  514  515
 516  517  518  519  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
NGBNINGBO VOR/DME0.1336°116.30
BKLISHE NDB7.9298°227
ANDANDONG VOR/DME28.7331°114.80
SHZSHENGZHOU VOR/DME36.3251°113.40
HSNZHOUSHAN VOR/DME47.283°112.30
LPUTUOSHAN (ZHOUSHAN) NDB47.382°228
LAPUTUOSHAN NDB50.179°363
DSHDANGSHAN VOR/DME53.6288°117.30

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW13
 HSN11D, HSN81D, HSN82D47mi83°
 SHZ81D, SHZ11D36mi251°
RW31
 HSN01D, HSN91D, HSN92D47mi83°
 SHZ01D, SHZ91D36mi251°

STAR starting pointsdistanceinbound heading
RW13
 SHZ81A, SHZ11A36.371°
 ISP81A, ISP82A, ISP11A, ISP12A35.2228°
 HSN11A, HSN82A, HSN81A, HSN12A47.2263°
RW31
 SHZ91A, SHZ01A36.371°
 ISP91A, ISP01A35.2228°
 HSN92A, HSN91A, HSN01A47.2263°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AND01AANDNDBleft39 (219)°> 6890ft1.0min timed220
AND01ANGBNDBright307 (127)°> 5910ft1.0min timed230
AND11AANDNDBleft39 (219)°> 6890ft1.0min timed220
AND81AANDNDBleft39 (219)°> 6890ft1.0min timed220
AND91AANDNDBleft39 (219)°> 6890ft1.0min timed220
AND91ANB208VHFleft309 (129)°> 5910ft1.0min timed230
AND92AANDNDBleft39 (219)°> 6890ft1.0min timed220
AND92AOVNEVVHFleft314 (134)°1.0min timed230
HSN01ANGBNDBright307 (127)°> 5910ft1.0min timed230
HSN12ANGBNDBright307 (127)°> 5910ft1.0min timed230
HSN81ANB110VHFright129 (309)°> 6890ft1.0min timed230
HSN91ANB208VHFleft309 (129)°> 5910ft1.0min timed230
HSN91AOVNEVVHFleft314 (134)°1.0min timed230
HSN92AOVNEVVHFleft314 (134)°1.0min timed230
ISP01ANGBNDBright307 (127)°> 5910ft1.0min timed230
ISP12ANGBNDBright307 (127)°> 5910ft1.0min timed230
ISP81ANB110VHFright129 (309)°> 6890ft1.0min timed230
ISP91AOVNEVVHFleft314 (134)°1.0min timed230
SHZ11ANB108VHFleft219 (39)°> 5910ft1.0min timed230
*) magnetic outbound (inbound) holding course
