Airports for X-Plane

Nanjing - Nanjing Lukou Intl'

Airport details

CountryChina
StateJiangsu
RegionZS
AirspaceShanghai Ctr
MunicipalityNanjing City
Elevation47ft (14m)
TimezoneGMT +8
Coordinates31.74333, 118.86333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSNJ
IATA codeNKG
FAA coden/a

Communication

Nanjing Lukou Intl' ATIS126.250
Nanjing Lukou Intl' Nanjing Delivery121.900
Nanjing Lukou Intl' Nanjing Ground (North)121.700
Nanjing Lukou Intl' Nanjing Ground (South)121.600
Nanjing Lukou Intl' Nanjing Apron (North)121.975
Nanjing Lukou Intl' Nanjing Apron (South)121.800
Nanjing Lukou Intl' Tower and Ground Standby118.225
Nanjing Lukou Intl' Nanjing Tower (North)118.850
Nanjing Lukou Intl' Nanjing Tower (South)118.475
Nanjing Lukou Intl' Nanjing Approach 04121.300
Nanjing Lukou Intl' Nanjing Approach 01119.250
Nanjing Lukou Intl' Nanjing Approach 05119.900
Nanjing Lukou Intl' Approach Standby120.350
Nanjing Lukou Intl' Nanjing Approach 02126.550
Nanjing Lukou Intl' Nanjing Approach 03119.675

Approach frequencies

ILS-cat-IIRW07108.718.00mi
ILS-cat-IRW24110.918.00mi
ILS-cat-IRW06110.318.00mi
ILS-cat-IRW25111.318.00mi
3° GSRW24110.918.00mi
3° GSRW06110.318.00mi
3° GSRW25111.318.00mi
3° GSRW07108.718.00mi
Nearby Points of Interest:
Two Mausoleums of the Southern Tang Dynasty
-
Tomb of the King of Boni
-
Ming Palace
-
John Rabe House
-
Tomb of Chang Yuchun
-
Site of National Central University
-
Tomb of Wu Zhen
-
Nanjing Bell Tower
-
Tomb of Li Wenzhong
-
Yangshan Quarry
-
Tomb of Li Bai
-
Longchang Temple

Runway info

Runway 06 / 24
 length3599m (11808ft)
 bearing62° / 242°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)
Runway 07 / 25
 length3604m (11824ft)
 bearing62° / 242°
 width60m (197ft)
 surfaceconcrete
 blast zone120m (394ft) / 120m (394ft)

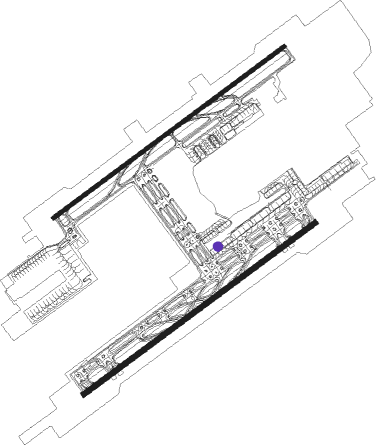

Airport layout - parking location 220


Taxiway locations

 A  A1  C  C1  C14  C2  D  D1
 D2  D5  K  N  T20  Z5
Parking locations

 201  202  203  204  205  206  207  208
 209  210  211  212  213  214  215  216
 217  218  219  220  221  222  223  224
 225  226  227  228  229  230  231  260
 261  262  263  264  265  266  267  268
 269  270  271  272  273  274  275  276
 277  278  279  51  52  53  54  55
 56  57  58  59  60  601  602  603
 604  605  606  607  608  609  61  610
 611  612  613  614  62  621  622  623
 624  625  626  627  628  63  631  632
 633  634  635  64  641  642  643  644
 645  646  647  648  649  65  650  651
 652  653  654  66  67  68  69  70
 71  72  74  74A  98  99

Nearby beacons

codeidentifierdistbearingfrequency
NJLLUKOU VOR/DME1.363°113.60
ZLUKOU NDB2.3217°420
MLJMOLING VOR/DME6.1355°117.05
SNQSHIQIU VOR/DME6.5121°115.75
IDXIAODANYANG NDB8.7242°440
GTQUNLI NDB10.177°276
ADAJIAOCHANG NDB14.9344°511
ZJBENNIU NDB44.877°217
CZOCHANGZHOU VOR/DME47.779°113.80
OFBANTAJI NDB57.7343°340
SJDYANGZHOU VOR/DME6547°113.10

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW06
 ESB11D, ESB61X42mi99°
 TES61X, TES11D42mi136°
 HFE61X, HFE11D80mi271°
RW07
 ESB21D, ESB71X42mi99°
 TES71X, TES21D42mi136°
 HFE71X, HFE21D80mi271°
RW24
 ESB12D, ESB42X42mi99°
 TES42X, TES12D42mi136°
 HFE42X, HFE12D80mi271°
RW25
 ESB22D, ESB52X42mi99°
 TES22D, TES52X42mi136°
 HFE22D, HFE52X80mi271°

STAR starting pointsdistanceinbound heading
RW06
 HFE11A, HFE61F79.791°
 ESB11A, ESB61F42.0279°
 KAK11A, KAK61F100.3314°
RW07
 HFE71F, HFE21A79.791°
 ESB71F, ESB21A42.0279°
 KAK21A, KAK71F100.3314°
RW24
 HFE44F, HFE42F, HFE12A79.791°
 ESB42F, ESB12A42.0279°
 KAK12A, KAK42F100.3314°
RW25
 HFE54F, HFE52F, HFE22A79.791°
 ESB52F, ESB22A42.0279°
 KAK52F, KAK22A100.3314°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ESB11ASNQNDBleft62 (242)°> 6890ft1.0min timed215
ESB21ASNQNDBleft62 (242)°> 6890ft1.0min timed215
ESB61FSNQNDBleft62 (242)°> 6890ft1.0min timed215
ESB71FSNQNDBleft62 (242)°> 6890ft1.0min timed215
HFE11ASNQ28VHFleft273 (93)°> 4930ft1.0min timed215
HFE12AMLJNDBright242 (62)°> 6890ft1.0min timed215
HFE21ASNQ28VHFleft273 (93)°> 4930ft1.0min timed215
HFE22AMLJNDBright242 (62)°> 6890ft1.0min timed215
HFE42FNJ216VHFright242 (62)°> 5910ft1.0min timed215
HFE44FMLJNDBright242 (62)°> 6890ft1.0min timed215
HFE52FNJ216VHFright242 (62)°> 5910ft1.0min timed215
HFE54FMLJNDBright242 (62)°> 6890ft1.0min timed215
HFE61FNJ114VHFleft275 (95)°> 4930ft1.0min timed215
HFE71FNJ114VHFleft275 (95)°> 4930ft1.0min timed215
KAK11ASNQNDBleft62 (242)°> 6890ft1.0min timed215
KAK12ASNQNDBleft62 (242)°> 6890ft1.0min timed215
KAK21ASNQNDBleft62 (242)°> 6890ft1.0min timed215
KAK22ASNQNDBleft62 (242)°> 6890ft1.0min timed215
KAK61FSNQNDBleft62 (242)°> 6890ft1.0min timed215
KAK71FSNQNDBleft62 (242)°> 6890ft1.0min timed215
OF11AMLJNDBright242 (62)°> 6890ft1.0min timed215
OF12AMLJNDBright242 (62)°> 6890ft1.0min timed215
OF21AMLJNDBright242 (62)°> 6890ft1.0min timed215
OF22AMLJNDBright242 (62)°> 6890ft1.0min timed215
OF42FMLJNDBright242 (62)°> 6890ft1.0min timed215
OF42FNJ216VHFright242 (62)°> 5910ft1.0min timed215
OF44FMLJNDBright242 (62)°> 6890ft1.0min timed215
OF52FMLJNDBright242 (62)°> 6890ft1.0min timed215
OF52FNJ216VHFright242 (62)°> 5910ft1.0min timed215
OF54FMLJNDBright242 (62)°> 6890ft1.0min timed215
OF61FNJ116VHFleft62 (242)°> 6890ft1.0min timed215
OF71FNJ116VHFleft62 (242)°> 6890ft1.0min timed215
ZJ11ASNQNDBleft62 (242)°> 6890ft1.0min timed215
ZJ21ASNQNDBleft62 (242)°> 6890ft1.0min timed215
ZJ61FSNQNDBleft62 (242)°> 6890ft1.0min timed215
ZJ71FSNQNDBleft62 (242)°> 6890ft1.0min timed215
*) magnetic outbound (inbound) holding course
