Airports for X-Plane

Hefei - Hefei Xinqiao Intl

Airport details

CountryChina
StateAnhui
RegionZS
AirspaceShanghai Ctr
MunicipalityHefei City
Elevation208ft (63m)
TimezoneGMT +8
Coordinates31.98667, 116.97500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSOF
IATA codeHFE
FAA coden/a

Communication

Hefei Xinqiao Intl ATIS128.850
Hefei Xinqiao Intl Ground Control121.625
Hefei Xinqiao Intl Tower118.750
Hefei Xinqiao Intl Approach119.850

Approach frequencies

ILS-cat-IRW15109.318.00mi
ILS-cat-IRW33108.518.00mi
3° GSRW15109.318.00mi
3° GSRW33108.518.00mi

Runway info

Runway 15 / 33
 length3405m (11171ft)
 bearing146° / 326°
 width45m (148ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)

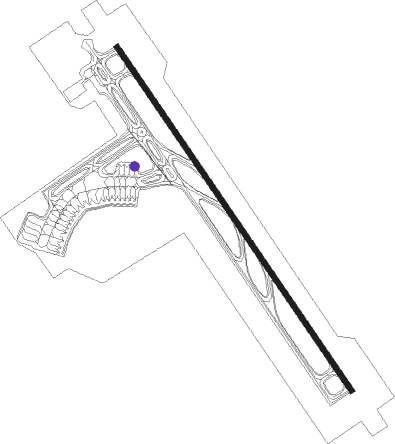

Airport layout - parking location 27


Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  21  22  23  24
 25  26  27  3  4  5  6  7
 8  9  Gate  Isolated

Nearby beacons

codeidentifierdistbearingfrequency
XQHXINQIAO VOR/DME1.5327°109.80
HFCCHA'AN VOR/DME11.9294°111.80
THATAOHUA VOR/DME14.6145°114.70
HFELUOGANG VOR/DME20.9123°116.70

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW15
 KAG01D, KAG11D, KAG15D, KAG91D, KAG93D, KAG03D46mi21°
 MAD03D, MAD11D, MAD01D, MAD91D60mi103°
 ORE91D, ORE11D, ORE01D64mi105°
 IKU91D, IKU11D, IKU01D87mi224°
 MID01D, MID11D, MID91D69mi239°
 BIP01D, BIP91D, BIP11D, BIP03D53mi306°
RW33
 KAG92D, KAG12D, KAG02D46mi21°
 MAD04D, MAD18D, MAD92D, MAD94D, MAD12D, MAD02D60mi103°
 ORE92D, ORE12D, ORE14D, ORE02D64mi105°
 IKU92D, IKU02D, IKU04D, IKU06D, IKU12D, IKU14D87mi224°
 MID02D, MID14D, MID92D, MID12D69mi239°
 BIP92D, BIP12D, BIP02D53mi306°

STAR starting pointsdistanceinbound heading
RW15
 IKU91A, IKU01A, IKU21A87.444°
 MID21A, MID91A, MID01A68.659°
 BIP01A, BIP91A, BIP21A53.1126°
 KAG01A, KAG91A, KAG21A45.9201°
 MAD21A, MAD91A, MAD01A59.8283°
 ORE91A, ORE21A, ORE01A64.1285°
RW33
 IKU92A, IKU02A, IKU22A87.444°
 MID92A, MID22A, MID02A68.659°
 BIP02A, BIP04A, BIP22A, BIP92A53.1126°
 KAG02A, KAG04A, KAG06A, KAG22A, KAG92A45.9201°
 MAD92A, MAD22A, MAD02A59.8283°
 ORE92A, ORE22A, ORE02A64.1285°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BIP01AOF217VHFright314 (134)°4930ft - 9850ft1.0min timed230
BIP02AOF119VHFright154 (334)°> 4930ft1.0min timed230
BIP02AOF217VHFright314 (134)°4930ft - 9850ft1.0min timed230
BIP21AD315WVHFright315 (135)°> 4930ft1.0min timed215
BIP22AD154PVHFleft334 (154)°> 5910ft1.0min timed215
BIP22AD315WVHFright315 (135)°> 4930ft1.0min timed215
BIP91AHFE42VHFright314 (134)°4930ft - 9850ft1.0min timed230
BIP92AD154IVHFleft334 (154)°> 4930ft1.0min timed230
BIP92AHFE42VHFright314 (134)°4930ft - 9850ft1.0min timed230
IKU01AOF119VHFright154 (334)°> 4930ft1.0min timed230
IKU02AOF108VHFleft154 (334)°> 3940ft1.0min timed230
IKU91AD154IVHFleft334 (154)°> 4930ft1.0min timed230
KAG01AOF216VHFright47 (227)°4930ft - 9850ft1.0min timed230
KAG02AOF216VHFright47 (227)°4930ft - 9850ft1.0min timed230
KAG04AOF119VHFright154 (334)°> 4930ft1.0min timed230
KAG04AOF216VHFright47 (227)°4930ft - 9850ft1.0min timed230
KAG21AAKAMIVHFright48 (228)°4930ft - 9850ft1.0min timed215
KAG22AAKAMIVHFright48 (228)°4930ft - 9850ft1.0min timed215
KAG22AD154PVHFleft334 (154)°> 5910ft1.0min timed215
KAG91AAKAMIVHFright48 (228)°4930ft - 9850ft1.0min timed215
KAG92AAKAMIVHFright48 (228)°4930ft - 9850ft1.0min timed215
KAG92AD154IVHFleft334 (154)°> 4930ft1.0min timed230
MAD01AHFENDBright130 (310)°1.0min timed230
MAD02AOF108VHFleft154 (334)°> 3940ft1.0min timed230
MAD91AD154IVHFleft334 (154)°> 4930ft1.0min timed230
MID01AOF119VHFright154 (334)°> 4930ft1.0min timed230
MID02AOF108VHFleft154 (334)°> 3940ft1.0min timed230
MID91AD154IVHFleft334 (154)°> 4930ft1.0min timed230
ORE01AHFENDBright130 (310)°1.0min timed230
ORE02AOF108VHFleft154 (334)°> 3940ft1.0min timed230
ORE91AD154IVHFleft334 (154)°> 4930ft1.0min timed230
*) magnetic outbound (inbound) holding course
