Airports for X-Plane

Shanghai - Shanghai Pudong

Airport details

CountryChina
StateShanghai
RegionZS
AirspaceShanghai Ctr
Elevation12ft (4m)
TimezoneGMT +8
Coordinates31.14500, 121.79333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSPD
IATA codePVG
FAA coden/a

Communication

Shanghai Pudong ATIS131.450
Shanghai Pudong ATIS127.850
Shanghai Pudong CLR DEL121.950
Shanghai Pudong Ground Control WEST121.700
Shanghai Pudong Ground Control EAST121.800
Shanghai Pudong Tower EAST118.400
Shanghai Pudong Tower WEST118.800
Shanghai Pudong Shanghai Approach Control119.200
Shanghai Pudong Shanghai Approach Control120.650
Shanghai Pudong Shanghai Approach Control124.050
Shanghai Pudong Shanghai Approach Control126.300
Shanghai Pudong Shanghai Approach Control128.050
Shanghai Pudong Shanghai Approach Control121.100
Shanghai Pudong Shanghai Approach Control125.400
Shanghai Pudong Shanghai Approach Control125.850
Shanghai Pudong Shanghai Approach Control127.750
Shanghai Pudong Shanghai Approach Control119.750
Shanghai Pudong Shanghai Approach Control120.300
Shanghai Pudong Shanghai Approach Control123.800
Shanghai Pudong Shanghai Approach Control126.650

Approach frequencies

ILS-cat-IIIRW34L108.318.00mi
ILS-cat-IIRW35R111.918.00mi
ILS-cat-IIRW17L110.718.00mi
ILS-cat-IRW34R108.918.00mi
ILS-cat-IRW16R108.718.00mi
ILS-cat-IRW35L108.118.00mi
ILS-cat-IRW17R111.118.00mi
ILS-cat-IRW16L111.518.00mi
3° GSRW16R108.718.00mi
3° GSRW17L110.718.00mi
3° GSRW17R111.118.00mi
3° GSRW16L111.518.00mi
3° GSRW34R108.918.00mi
3° GSRW34L108.318.00mi
3° GSRW35L108.118.00mi
3° GSRW35R111.918.00mi
Nearby Points of Interest:
Former Residence of Zhang Wentian
-
Yangshupu Power Plant
-
Asia Building
-
Bank of Taiwan Building
-
Bank of China Building
-
Gutzlaff Signal Tower
-
Yongnian Mansion
-
Shanghai Club Building
-
Brookside Apartments
-
Headquarter Buildings of Y.W.C.A
-
Shanghai Navy YMCA
-
Great World, Shanghai
-
Former Residence of Zhou Enlai in Shanghai
-
General Post Office Building, Shanghai
-
The Bank of China, Hongkew Branch
-
Saint Nicholas' Church, Shanghai
-
Our Lady Cathedral, Shanghai
-
Moller Villa
-
Bibliotheca Zi-Ka-Wei
-
Soong Ching-ling Memorial Residence (Shanghai)
-
Wukang Mansion

Runway info

Runway 15 / 33
 length3404m (11168ft)
 bearing159° / 339°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 66m (217ft)
Runway 16L / 34R
 length3804m (12480ft)
 bearing159° / 339°
 width60m (197ft)
 surfaceconcrete
 blast zone125m (410ft) / 125m (410ft)
Runway 16R / 34L
 length3804m (12480ft)
 bearing159° / 339°
 width60m (197ft)
 surfaceconcrete
 blast zone125m (410ft) / 125m (410ft)
Runway 17L / 35R
 length4004m (13136ft)
 bearing159° / 339°
 width60m (197ft)
 surfaceconcrete
 blast zone65m (213ft) / 65m (213ft)
Runway 17R / 35L
 length3403m (11165ft)
 bearing159° / 339°
 width60m (197ft)
 surfaceconcrete
 blast zone125m (410ft) / 125m (410ft)

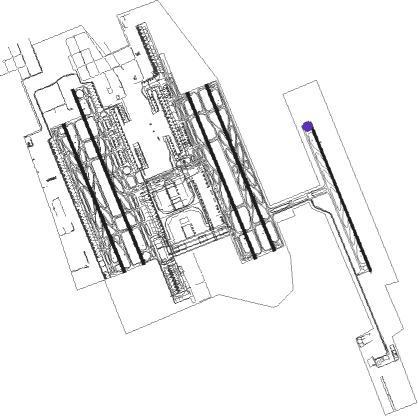

Airport layout - taxiway location K10


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  B
 B1  B2  B3  B7  B8  C  C1  C2
 C3  C4  C5  C6  D  D1  D2  D3
 D4  D5  D6  E  E0  E5  E7  E8
 F  F1  F2  F3  G  G1  G2  G3
 G4  G5  G6  H  H1  H2  H3  H4
 H5  H6  J1  K  K1  K10  K2  K3
 K4  K5  K6  K7  K8  K9  L06  L09
 L12  L12A  L15  L16  L17A  L18  L19  L22
 L23  P1  P2  P3  P4  P5  P6  Q1
 Q6  R  R1  R2  R4  R5  R6  S1
 S2  S3  T3  T5  T6  V2  W1  W5
 W6  W7
Parking locations

 1  10  101  102  103  104  105  106
 107  108  109  11  110  111  112  113
 114  115  116  117  118  119  12  120
 121  122  123  124  125  126  127  128
 129  130  131  132  133  134  135  136
 137  138  139  14  140  141  142  143
 144  145  146  147  148  149  15  150
 151  152  153  154  155  156  157  158
 159  16  160  161  162  163  164  165
 166  167  168  169  17  170  171  172
 173  174  175  176  177  178  179  18
 180  181  182  183  184  185  186  187
 188  189  19  190  2  20  201  202
 203  204  205  206  207  208  209  21
 210  211  22  23  24  25  26  27
 28  29  3  30  301  302  303  304
 305  306  307  308  31  310  311  312
 313  314  315  316  317  318  319  32
 320  321  322  323  324  325  326  327
 328  329  330  331  332  333  334  335
 336  337  338  339  340  341  346  347
 4  401A  401B  402A  402B  403  404  405
 406  407  408  409  410  411  412  413
 414  415  416  417  418  451  452  453
 458  459  5  50  501  502  503  504
 505  506  507  508  509  51  510  511
 512  52  53  54  55  551  552  553
 554  555  556  557  558  559  56  560
 561  562  563  564  565  566  567  568
 569  57  570  571  572  58  581  582
 583  584  585  586  589  59  590  6
 60  61  611  612  613  614  615  616
 617  618  619  62  620  621  622  623
 624  625  626  63  64  65  67  69
 7  71  73  75  77  79  8  80
 801  802  803  804  805  806  807  808
 809  81  810  811  812  813  814  815
 816  82  83  84  85  86  87  88
 89  9  90  91  92  93  94  95
 96  97  98  S1  S2  S3  S4  S5
 S6  S7  S8  Z11  Z12  Z13  Z14  Z15
 Z16  Z21  Z22  Z23  Z24  Z25  Z26  Z31
 Z32  Z33  Z34  Z35  Z36  Z37  Z38

Nearby beacons

codeidentifierdistbearingfrequency
PUDPUDONG VOR/DME1.6339°116.90
PDLLIUZAO VOR/DME6.3263°109.40
XSYSHUYUAN VOR/DME13.4159°112.70
HSHHENGSHA VOR/DME13.613°114.40
JTNJIUTING VOR/DME23.2267°109.60
SHAHONGQIAO VOR/DME24280°117.20
PKNANXIANG NDB25.2287°208
CGTCHONGGU VOR/DME31276°112.50
ANDANDONG VOR/DME60.9213°114.80
WXINGDONG (NANTONG) NDB68.3318°425
NTGNANTONG VOR/DME70.7320°115.60

Departure and arrival routes

Transition altitude9800ft
Transition level11800ft
SID end pointsdistanceoutbound heading
RW16L
 SUR12D, SUR82D95mi70°
 LAM84D, LAM82D, LAM12D117mi78°
 MIG12D, MIG82D101mi101°
 HSN12D, HSN82D79mi155°
 NXD84D, NXD82D, NXD12D72mi260°
 SAS84D, SAS82D, SAS12D80mi287°
 PIK86D, PIK84D, PIK82D, PIK14D, PIK12D82mi314°
 ODU12D, ODU14D, ODU82D, ODU84D127mi355°
RW16R
 SUR12D, SUR82D95mi70°
 LAM12D, LAM82D, LAM84D117mi78°
 MIG82D, MIG12D101mi101°
 HSN82D, HSN12D79mi155°
 NXD12D, NXD82D, NXD84D72mi260°
 SAS84D, SAS82D, SAS12D80mi287°
 PIK14D, PIK86D, PIK84D, PIK82D, PIK12D82mi314°
 ODU84D, ODU82D, ODU14D, ODU12D127mi355°
RW17 (ALL)
 NXD11D72mi260°
 SAS11D80mi287°
 PIK11D82mi314°
RW17L
 SUR11D, SUR81D95mi70°
 LAM81D, LAM11D117mi78°
 MIG11D, MIG81D101mi101°
 HSN11D, HSN81D79mi155°
 NXD81D72mi260°
 SAS81D80mi287°
 PIK83D, PIK13D, PIK81D82mi314°
 ODU83D, ODU81D, ODU13D, ODU11D127mi355°
RW17R
 SUR11D, SUR81D95mi70°
 LAM81D, LAM11D117mi78°
 MIG11D, MIG81D101mi101°
 HSN81D, HSN11D79mi155°
 NXD81D72mi260°
 SAS81D80mi287°
 PIK13D, PIK81D, PIK83D82mi314°
 ODU13D, ODU11D, ODU83D, ODU81D127mi355°
RW34L
 SUR02D, SUR04D, SUR92D, SUR94D95mi70°
 LAM96D, LAM94D, LAM92D, LAM02D, LAM04D117mi78°
 MIG92D, MIG02D101mi101°
 HSN92D, HSN02D79mi155°
 NXD02D, NXD94D, NXD92D72mi260°
 SAS94D, SAS92D, SAS02D80mi287°
 PIK98D, PIK96D, PIK94D, PIK92D, PIK04D, PIK02D82mi314°
 ODU02D, ODU04D, ODU92D, ODU94D127mi355°
RW34R
 SUR02D, SUR04D, SUR92D, SUR94D95mi70°
 LAM94D, LAM96D, LAM92D, LAM02D, LAM04D117mi78°
 MIG92D, MIG02D101mi101°
 HSN92D, HSN02D79mi155°
 NXD02D, NXD94D, NXD92D72mi260°
 SAS94D, SAS92D, SAS02D80mi287°
 PIK98D, PIK96D, PIK94D, PIK92D, PIK04D, PIK02D82mi314°
 ODU02D, ODU04D, ODU92D, ODU94D127mi355°
RW35 (ALL)
 HSN01D79mi155°
 PIK03D, PIK01D82mi314°
 ODU03D, ODU01D127mi355°
RW35L
 SUR01D, SUR03D, SUR91D, SUR93D, SUR95D95mi70°
 LAM95D, LAM91D, LAM01D, LAM03D, LAM93D117mi78°
 MIG01D, MIG91D101mi101°
 HSN91D79mi155°
 NXD91D, NXD01D72mi260°
 SAS91D, SAS01D80mi287°
 PIK95D, PIK93D, PIK91D82mi314°
 ODU91D, ODU93D127mi355°
RW35R
 SUR01D, SUR03D, SUR91D, SUR93D, SUR95D95mi70°
 LAM95D, LAM93D, LAM91D, LAM03D, LAM01D117mi78°
 MIG01D, MIG91D101mi101°
 HSN91D79mi155°
 NXD91D, NXD01D72mi260°
 SAS01D, SAS91D80mi287°
 PIK93D, PIK91D, PIK95D82mi314°
 ODU93D, ODU91D127mi355°

STAR starting pointsdistanceinbound heading
ALL
 BK01A, BK11A78.620°
 SAS11A, SAS01A80.1107°
 MAT01A53.0238°
 DUM01A52.0258°
RW16 (ALL)
 BK81A, BK82A, BK83A78.620°
 SAS82A, SAS81A80.1107°
 MAT81A, MAT82A53.0238°
 MAT11A38.3245°
 DUM83A, DUM82A, DUM81A52.0258°
RW17 (ALL)
 BK83A, BK82A, BK81A78.620°
 SAS82A, SAS81A80.1107°
 MAT82A, MAT81A53.0238°
 MAT11A38.3245°
 DUM82A, DUM81A52.0258°
RW34 (ALL)
 BK91A78.620°
 SAS93A, SAS92A, SAS91A80.1107°
 MAT91A, MAT92A53.0238°
 DUM93A, DUM92A, DUM91A52.0258°
RW35 (ALL)
 BK91A78.620°
 SAS93A, SAS92A, SAS91A80.1107°
 MAT92A, MAT91A53.0238°
 DUM92A, DUM91A52.0258°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AND01AD202XVHFleft242 (62)°1.0min timed225
AND11AD202XVHFleft242 (62)°1.0min timed225
AND11APDLNDBleft168 (348)°> 8860ft1.0min timed225
AND11AXSYNDBright202 (22)°1.0min timed225
AND12AD202XVHFleft242 (62)°1.0min timed225
AND12AHSHNDBright168 (348)°> 2960ft1.0min timed225
AND12AXSYNDBright202 (22)°1.0min timed225
AND81APD208VHFleft242 (62)°1.0min timed230
AND82APD208VHFleft242 (62)°1.0min timed230
AND83APD208VHFleft242 (62)°1.0min timed230
AND91APD208VHFleft242 (62)°1.0min timed230
BK01AD202XVHFleft242 (62)°1.0min timed225
BK11AD202XVHFleft242 (62)°1.0min timed225
BK11APDLNDBleft168 (348)°> 8860ft1.0min timed225
BK11AXSYNDBright202 (22)°1.0min timed225
BK12AD202XVHFleft242 (62)°1.0min timed225
BK12AHSHNDBright168 (348)°> 2960ft1.0min timed225
BK12AXSYNDBright202 (22)°1.0min timed225
BK81APD208VHFleft242 (62)°1.0min timed230
BK82APD208VHFleft242 (62)°1.0min timed230
BK83APD208VHFleft242 (62)°1.0min timed230
BK91APD208VHFleft242 (62)°1.0min timed230
DUM01APU31AVHFleft82 (262)°7880ft - 16700ft1.5min timed225
DUM11AHSHNDBright168 (348)°> 2960ft1.0min timed225
MAT01APINOTVHFleft86 (266)°1.0min timed225
MAT11AHSHNDBright168 (348)°> 2960ft1.0min timed225
MAT11APINOTVHFleft86 (266)°1.0min timed225
MAT81APINOTVHFleft86 (266)°1.0min timed225
MAT82APINOTVHFleft86 (266)°1.0min timed225
MAT91APINOTVHFleft86 (266)°1.0min timed225
MAT92APINOTVHFleft86 (266)°1.0min timed225
SAS01AJTNNDBleft274 (94)°1.0min timed225
SAS01APDLNDBleft168 (348)°> 8860ft1.0min timed225
SAS11ATOSASVHFright265 (85)°5910ft - 7880ft1.0min timed225
*) magnetic outbound (inbound) holding course
