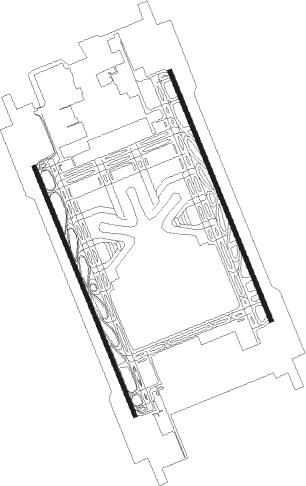

Qingdao - Qingdao Jiaodong Intl
Airport details
| Country | China |
| State | Shandong |
| Region | ZS |
| Airspace | Shanghai Ctr |
| Municipality | Qingdao City |
| Elevation | 28ft (9m) |
| Timezone | GMT +8 |
| Coordinates | 36.36475, 120.08683 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ZSQD |
| IATA code | TAO |
| FAA code | n/a |
Communication
Approach frequencies
| ILS-cat-II | RW16 | 111.9 | 18.00mi |
| ILS-cat-II | RW17 | 110.15 | 18.00mi |
| ILS-cat-I | RW34 | 108.55 | 18.00mi |
| ILS-cat-I | RW35 | 109.75 | 18.00mi |
| 3° GS | RW16 | 111.9 | 18.00mi |
| 3° GS | RW34 | 108.55 | 18.00mi |
| 3° GS | RW17 | 110.15 | 18.00mi |
| 3° GS | RW35 | 109.75 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| JDG | JIAODONG VOR/DME | 1.2 | 304° | 114.45 |
| JDW | JIAOBEI VOR/DME | 5.7 | 252° | 116.85 |
| JDE | SHANGMA VOR/DME | 9.2 | 114° | 116.25 |
| TAO | QINGDAO VOR/DME | 14.4 | 105° | 117.50 |
| YO | GAOMI NDB | 19.7 | 280° | 443 |
| XDX | XUEJIADAO VOR/DME | 25.2 | 152° | 110.40 |
| FD | LAIYANG NDB | 42.9 | 44° | 298 |
| WFG | WEIFANG VOR/DME | 49.6 | 286° | 116.60 |
Departure and arrival routes
| Transition altitude | 8860ft |
| Transition level | 10830ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW16 | |||
| TEK81D, TEK11D | 80mi | 29° | |
| LAT81D, LAT11D | 63mi | 142° | |
| WFG11D, WFG81D | 50mi | 286° | |
| DYN12D, DYN11D, DYN82D, DYN81D | 94mi | 312° | |
| DOV82D, DOV81D, DOV12D, DOV11D | 108mi | 342° | |
| RW17 | |||
| TEK81D, TEK11D | 80mi | 29° | |
| LAT11D, LAT81D | 63mi | 142° | |
| WFG11D, WFG81D | 50mi | 286° | |
| DYN11D, DYN12D, DYN81D, DYN82D | 94mi | 312° | |
| DOV81D, DOV11D, DOV12D, DOV82D | 108mi | 342° | |
| RW34 | |||
| TEK91D, TEK01D | 80mi | 29° | |
| LAT91D, LAT01D | 63mi | 142° | |
| WFG02D, WFG91D | 50mi | 286° | |
| DYN02D, DYN91D | 94mi | 312° | |
| DOV91D, DOV02D | 108mi | 342° | |
| RW35 | |||
| TEK91D | 80mi | 29° | |
| LAT91D | 63mi | 142° | |
| WFG01D, WFG91D | 50mi | 286° | |
| DYN01D, DYN91D | 94mi | 312° | |
| DOV01D, DOV91D | 108mi | 342° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW16 | |||
| HCH82A | 80.5 | 200° | |
| RW17 | |||
| WFG81A, WFG11A | 49.6 | 106° | |
| DYN81A, DYN11A | 93.6 | 132° | |
| HCH11A, HCH81A | 80.5 | 200° | |
| RW34 | |||
| WFG01A | 19.7 | 100° | |
| WFG92A | 49.6 | 106° | |
| DYN01A | 30.7 | 146° | |
| HCH01A | 31.3 | 177° | |
| LAT91A, LAT01A, IDV91A, IDV01A | 58.6 | 333° | |
| RW35 | |||
| WFG01A | 19.7 | 100° | |
| WFG91A | 49.6 | 106° | |
| DYN91A | 93.6 | 132° | |
| DYN01A | 30.7 | 146° | |
| HCH01A | 31.3 | 177° | |
| IDV91A, LAT01A, LAT91A, IDV01A | 58.6 | 333° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| DYN01A | JDW | NDB | right | 350 (170)° | > 9850ft | 1.0min timed | 230 |
| DYN11A | GUTVO | VHF | left | 260 (80)° | 1.0min timed | 230 | |
| DYN81A | GUTVO | VHF | left | 260 (80)° | 1.0min timed | 230 | |
| DYN91A | GUTVO | VHF | left | 260 (80)° | 1.0min timed | 230 | |
| HCH01A | JDE | NDB | left | 350 (170)° | > 6890ft | 1.0min timed | 230 |
| HCH01A | NOKUD | VHF | right | 24 (204)° | 1.0min timed | 230 | |
| HCH11A | NOKUD | VHF | right | 24 (204)° | 1.0min timed | 230 | |
| HCH81A | NOKUD | VHF | right | 24 (204)° | 1.0min timed | 230 | |
| HCH82A | JD305 | VHF | right | 170 (350)° | > 3940ft | 1.0min timed | 230 |
| HCH82A | NOKUD | VHF | right | 24 (204)° | 1.0min timed | 230 | |
| HCH91A | JD900 | VHF | left | 350 (170)° | > 6890ft | 1.0min timed | 230 |
| HCH91A | NOKUD | VHF | right | 24 (204)° | 1.0min timed | 230 | |
| IDV01A | XDX | NDB | right | 182 (2)° | > 5910ft | 1.0min timed | 230 |
| IDV11A | JD305 | VHF | right | 170 (350)° | > 3940ft | 1.0min timed | 230 |
| IDV11A | XDX | NDB | right | 182 (2)° | > 5910ft | 1.0min timed | 230 |
| IDV81A | JD305 | VHF | right | 170 (350)° | > 3940ft | 1.0min timed | 230 |
| IDV81A | JD700 | VHF | right | 145 (325)° | 1.0min timed | 230 | |
| IDV91A | JD700 | VHF | right | 145 (325)° | 1.0min timed | 230 | |
| LAT01A | XDX | NDB | right | 182 (2)° | > 5910ft | 1.0min timed | 230 |
| LAT11A | JD305 | VHF | right | 170 (350)° | > 3940ft | 1.0min timed | 230 |
| LAT11A | XDX | NDB | right | 182 (2)° | > 5910ft | 1.0min timed | 230 |
| LAT81A | JD305 | VHF | right | 170 (350)° | > 3940ft | 1.0min timed | 230 |
| LAT81A | JD700 | VHF | right | 145 (325)° | 1.0min timed | 230 | |
| LAT91A | JD700 | VHF | right | 145 (325)° | 1.0min timed | 230 | |
| WFG01A | JDW | NDB | right | 350 (170)° | > 9850ft | 1.0min timed | 230 |
| WFG02A | JDE | NDB | left | 350 (170)° | > 6890ft | 1.0min timed | 230 |
| WFG02A | JDW | NDB | right | 350 (170)° | > 9850ft | 1.0min timed | 230 |
| WFG11A | GUTVO | VHF | left | 260 (80)° | 1.0min timed | 230 | |
| WFG81A | GUTVO | VHF | left | 260 (80)° | 1.0min timed | 230 | |
| WFG91A | JD800 | VHF | right | 350 (170)° | > 9850ft | 1.0min timed | 230 |
| WFG92A | JD800 | VHF | right | 350 (170)° | > 9850ft | 1.0min timed | 230 |
| WFG92A | JD900 | VHF | left | 350 (170)° | > 6890ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
