Airports for X-Plane

Qingdao - Qingdao Jiaodong Intl

Airport details

CountryChina
StateShandong
RegionZS
AirspaceShanghai Ctr
MunicipalityQingdao City
Elevation28ft (9m)
TimezoneGMT +8
Coordinates36.36475, 120.08683
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSQD
IATA codeTAO
FAA coden/a

Communication

No airport communication available for ZSQD

Approach frequencies

ILS-cat-IIRW16111.918.00mi
ILS-cat-IIRW17110.1518.00mi
ILS-cat-IRW34108.5518.00mi
ILS-cat-IRW35109.7518.00mi
3° GSRW16111.918.00mi
3° GSRW34108.5518.00mi
3° GSRW17110.1518.00mi
3° GSRW35109.7518.00mi

Runway info

Runway 16 / 34
 length3610m (11844ft)
 bearing159° / 339°
 width60m (197ft)
 surfaceconcrete
 blast zone121m (397ft) / 116m (381ft)
Runway 17 / 35
 length3609m (11841ft)
 bearing159° / 339°
 width45m (148ft)
 surfaceconcrete
 blast zone119m (390ft) / 119m (390ft)

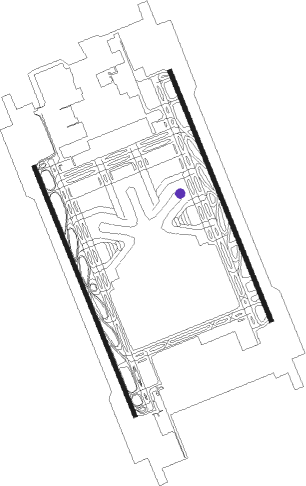

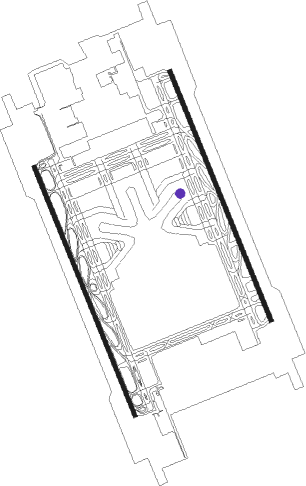

Airport layout - parking location 121B


Parking locations

 101  102  103  104  105  106  107  108
 109  110  111  112  113  114  115  116
 117  118  119  120  121A  121B  122  123
 124  125  126  127  128  129  130  131
 132  133  134  135  136  137  138  139
 140  141  142  143  144  145  146  147
 148  149  150  151  152  153  154  155
 156  157  158  159  160  161  162  163
 164  165  166  167  168  169  170  171
 172

Nearby beacons

codeidentifierdistbearingfrequency
JDGJIAODONG VOR/DME1.2304°114.45
JDWJIAOBEI VOR/DME5.7252°116.85
JDESHANGMA VOR/DME9.2114°116.25
TAOQINGDAO VOR/DME14.4105°117.50
YOGAOMI NDB19.7280°443
XDXXUEJIADAO VOR/DME25.2152°110.40
FDLAIYANG NDB42.944°298
WFGWEIFANG VOR/DME49.6286°116.60

Departure and arrival routes

Transition altitude8860ft
Transition level10830ft
SID end pointsdistanceoutbound heading
RW16
 TEK81D, TEK11D80mi29°
 LAT81D, LAT11D63mi142°
 WFG11D, WFG81D50mi286°
 DYN12D, DYN11D, DYN82D, DYN81D94mi312°
 DOV82D, DOV81D, DOV12D, DOV11D108mi342°
RW17
 TEK81D, TEK11D80mi29°
 LAT11D, LAT81D63mi142°
 WFG11D, WFG81D50mi286°
 DYN11D, DYN12D, DYN81D, DYN82D94mi312°
 DOV81D, DOV11D, DOV12D, DOV82D108mi342°
RW34
 TEK91D, TEK01D80mi29°
 LAT91D, LAT01D63mi142°
 WFG02D, WFG91D50mi286°
 DYN02D, DYN91D94mi312°
 DOV91D, DOV02D108mi342°
RW35
 TEK91D80mi29°
 LAT91D63mi142°
 WFG01D, WFG91D50mi286°
 DYN01D, DYN91D94mi312°
 DOV01D, DOV91D108mi342°

STAR starting pointsdistanceinbound heading
RW16
 HCH82A80.5200°
RW17
 WFG81A, WFG11A49.6106°
 DYN81A, DYN11A93.6132°
 HCH11A, HCH81A80.5200°
RW34
 WFG01A19.7100°
 WFG92A49.6106°
 DYN01A30.7146°
 HCH01A31.3177°
 LAT91A, LAT01A, IDV91A, IDV01A58.6333°
RW35
 WFG01A19.7100°
 WFG91A49.6106°
 DYN91A93.6132°
 DYN01A30.7146°
 HCH01A31.3177°
 IDV91A, LAT01A, LAT91A, IDV01A58.6333°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DYN01AJDWNDBright350 (170)°> 9850ft1.0min timed230
DYN11AGUTVOVHFleft260 (80)°1.0min timed230
DYN81AGUTVOVHFleft260 (80)°1.0min timed230
DYN91AGUTVOVHFleft260 (80)°1.0min timed230
HCH01AJDENDBleft350 (170)°> 6890ft1.0min timed230
HCH01ANOKUDVHFright24 (204)°1.0min timed230
HCH11ANOKUDVHFright24 (204)°1.0min timed230
HCH81ANOKUDVHFright24 (204)°1.0min timed230
HCH82AJD305VHFright170 (350)°> 3940ft1.0min timed230
HCH82ANOKUDVHFright24 (204)°1.0min timed230
HCH91AJD900VHFleft350 (170)°> 6890ft1.0min timed230
HCH91ANOKUDVHFright24 (204)°1.0min timed230
IDV01AXDXNDBright182 (2)°> 5910ft1.0min timed230
IDV11AJD305VHFright170 (350)°> 3940ft1.0min timed230
IDV11AXDXNDBright182 (2)°> 5910ft1.0min timed230
IDV81AJD305VHFright170 (350)°> 3940ft1.0min timed230
IDV81AJD700VHFright145 (325)°1.0min timed230
IDV91AJD700VHFright145 (325)°1.0min timed230
LAT01AXDXNDBright182 (2)°> 5910ft1.0min timed230
LAT11AJD305VHFright170 (350)°> 3940ft1.0min timed230
LAT11AXDXNDBright182 (2)°> 5910ft1.0min timed230
LAT81AJD305VHFright170 (350)°> 3940ft1.0min timed230
LAT81AJD700VHFright145 (325)°1.0min timed230
LAT91AJD700VHFright145 (325)°1.0min timed230
WFG01AJDWNDBright350 (170)°> 9850ft1.0min timed230
WFG02AJDENDBleft350 (170)°> 6890ft1.0min timed230
WFG02AJDWNDBright350 (170)°> 9850ft1.0min timed230
WFG11AGUTVOVHFleft260 (80)°1.0min timed230
WFG81AGUTVOVHFleft260 (80)°1.0min timed230
WFG91AJD800VHFright350 (170)°> 9850ft1.0min timed230
WFG92AJD800VHFright350 (170)°> 9850ft1.0min timed230
WFG92AJD900VHFleft350 (170)°> 6890ft1.0min timed230
*) magnetic outbound (inbound) holding course
