Airports for X-Plane

Huai'an - Huai'an Lianshui

Airport details

CountryChina
StateJiangsu
RegionZS
AirspaceShanghai Ctr
Municipality洪泽县
Elevation36ft (11m)
TimezoneGMT +8
Coordinates33.79000, 119.12334
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSSH
IATA codeHIA
FAA coden/a

Communication

Huai'an Lianshui Huai'an ATIS126.425
Huai'an Lianshui Huai'an Tower130.350

Approach frequencies

ILS-cat-IRW04108.718.00mi
ILS-cat-IRW22109.1518.00mi
3° GSRW04108.718.00mi
3° GSRW22109.1518.00mi

Runway info

Runway 04 / 22
 length2807m (9209ft)
 bearing41° / 221°
 width60m (197ft)
 surfaceconcrete
 blast zone61m (200ft) / 149m (489ft)

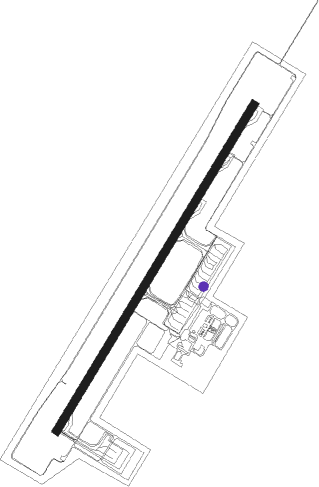

Airport layout - parking location 9


Taxiway locations

 T
Parking locations

 1  10  11  12  13  14  15  16
 2  201  202  3  4  5  6  7
 8  9

Nearby beacons

codeidentifierdistbearingfrequency
HUNHUAIAN VOR/DME1219°113.30
GFKLIANYUNGANG VOR/DME36.14°117.65

Departure and arrival routes

Transition altitude9850ft
SID end pointsdistanceoutbound heading
RW04
 YCH81F, YCH03D, YCH01D58mi109°
 NIX01D, NIX81F51mi177°
 LAG01D, LAG81F29mi232°
 IDK83F, IDK81F, IDK01D18mi280°
RW22
 YCH13D, YCH11D, YCH82F58mi109°
 NIX11D, NIX82F51mi177°
 LAG11D, LAG82F29mi232°
 IDK82F, IDK11D18mi280°

STAR starting pointsdistanceinbound heading
RW04
 LAG01A, LAG91X28.552°
 YCH91X, YCH03A, YCH01A58.3289°
 NIX91X, NIX01A50.9357°
RW22
 LAG11A, LAG92X28.552°
 YCH92X, YCH13A, YCH11A58.3289°
 NIX92X, NIX11A50.9357°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
IDK03AHUNNDBright297 (117)°1.0min timedICAO rules
IDK11AHUNNDBright297 (117)°1.0min timedICAO rules
IDK91XSH604VHFleft41 (221)°> 2960ft1.0min timed215
IDK92XSH706VHFleft221 (41)°1.0min timed205
LAG11AHUNNDBright297 (117)°1.0min timedICAO rules
LAG92XSH706VHFleft221 (41)°1.0min timed205
NIX11AHUNNDBright297 (117)°1.0min timedICAO rules
NIX92XSH706VHFleft221 (41)°1.0min timed205
YCH03AHUNNDBright297 (117)°1.0min timedICAO rules
YCH13AHUNNDBright297 (117)°1.0min timedICAO rules
YCH91XSH706VHFleft221 (41)°1.0min timed205
YCH92XSH706VHFleft221 (41)°1.0min timed205
*) magnetic outbound (inbound) holding course
