Airports for X-Plane

Shanghai - Shanghai Hongqiao Intl

Airport details

CountryChina
StateShanghai Municipality
RegionZS
AirspaceShanghai Ctr
MunicipalityShanghai
Elevation7ft (2m)
TimezoneGMT +8
Coordinates31.21056, 121.33883
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSSS
IATA codeSHA
FAA coden/a

Communication

Shanghai Hongqiao Intl ATIS132.250
Shanghai Hongqiao Intl Hongqiao Delivery121.750
Shanghai Hongqiao Intl Hongqiao Ground (East)121.600
Shanghai Hongqiao Intl Hongqiao Ground (West)121.900
Shanghai Hongqiao Intl Hongqiao Apron (East)121.675
Shanghai Hongqiao Intl Hongqiao Apron (West)121.950
Shanghai Hongqiao Intl Shanghai Approach 11119.075
Shanghai Hongqiao Intl Hongqiao Tower (East)118.100
Shanghai Hongqiao Intl Hongqiao Tower (West)118.650
Shanghai Hongqiao Intl Shanghai Approach 02125.400
Shanghai Hongqiao Intl Shanghai Approach 06126.300
Shanghai Hongqiao Intl Shanghai Approach 10125.625
Shanghai Hongqiao Intl Shanghai Approach 03125.850
Shanghai Hongqiao Intl Shanghai Approach 07121.100
Shanghai Hongqiao Intl Shanghai Approach 04123.800
Shanghai Hongqiao Intl Shanghai Approach 08127.750
Shanghai Hongqiao Intl Shanghai Approach 01120.300
Shanghai Hongqiao Intl Shanghai Approach 05126.650
Shanghai Hongqiao Intl Shanghai Approach 09121.375

Approach frequencies

ILS-cat-IRW18R110.918.00mi
ILS-cat-IRW18L111.318.00mi
ILS-cat-IRW36L111.718.00mi
ILS-cat-IRW36R110.318.00mi
3° GSRW18R110.918.00mi
3° GSRW18L111.318.00mi
3° GSRW36L111.718.00mi
3° GSRW36R110.318.00mi

Runway info

Runway 18L / 36R
 length3403m (11165ft)
 bearing177° / 357°
 width45m (148ft)
 surfaceasphalt
 displ threshold100m (328ft) / 100m (328ft)
 blast zone60m (197ft) / 60m (197ft)
Runway 18R / 36L
 length3303m (10837ft)
 bearing177° / 357°
 width60m (197ft)
 surfaceconcrete
 displ threshold300m (984ft) / 300m (984ft)
 blast zone120m (394ft) / 120m (394ft)

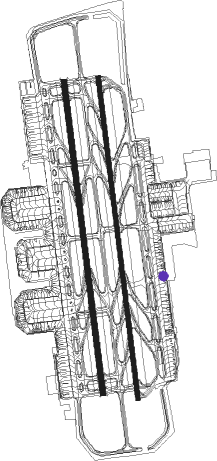

Airport layout - parking location 127


Taxiway locations

 A  A1  A2  B  B4  B6  C  C3
 C4  D13  D9  H1  H2  H3  H4  H5
 H6  H7  T1  T6
Parking locations

 101  102  109  110  111  112  113  114
 115  120  121  126  127  212  213  214
 215  216  217  218  219  220  221  222
 223  224  225  226  227  228  229  230
 231  232  233  234  235  236  237  238E
 240E  246  248  250  256  257  258  259
 259E  260  261  262  263  264  265  266
 267  268  269  270  271  272  273  274
 275  276  277  278  279  280  281  282
 283  284  285  286  287  288  289  290
 301  302  303  304  305  306  307  308
 309  310  311  312  313  314  315  316
 317  318  319  320  321  322  323  324
 325  326  327  328  329  330  331  332
 333  334  335  336  337  338  339  340
 341  342  401  402  403  404  405  406
 407  408  409  410  411  412  413  413E
 501  502  504  506  508  510  511  512
 513  514  517  518  519  520  521  522
 523  524  525  601  602  603  604A  604B
 605  606  607  608

Nearby beacons

codeidentifierdistbearingfrequency
SHAHONGQIAO VOR/DME0.7341°117.20
PKNANXIANG NDB4.3353°208
JTNJIUTING VOR/DME5.2178°109.60
CGTCHONGGU VOR/DME7.4270°112.50
PDLLIUZAO VOR/DME17.7104°109.40
PUDPUDONG VOR/DME22.995°116.90
HSHHENGSHA VOR/DME27.773°114.40
XSYSHUYUAN VOR/DME32.1118°112.70
SUFSHUOFANG VOR/DME49.6288°114.10
NXDNANXUN VOR/DME50.4251°116.50
WXINGDONG (NANTONG) NDB53.5337°425
NTGNANTONG VOR/DME56.3338°115.60
ANDANDONG VOR/DME57.6187°114.80
HGHHANGZHOU VOR/DME73.8222°113

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW18 (ALL)
 IBE31D60mi57°
 SUR31D115mi75°
 LAM31D138mi81°
 MIG31D124mi101°
 PON31D66mi120°
 NXD31D50mi251°
 SAS31D57mi290°
 PIK31D65mi328°
RW18L
 IBE61D60mi57°
 SUR61D115mi75°
 LAM61D138mi81°
 MIG61D124mi101°
 PON61D66mi120°
 NXD61D50mi251°
 SAS61D57mi290°
 PIK61D65mi328°
RW18R
 IBE61D60mi57°
 SUR61D115mi75°
 LAM61D138mi81°
 MIG61D124mi101°
 PON61D66mi120°
 NXD61D50mi251°
 SAS61D57mi290°
 PIK61D65mi328°
RW36 (ALL)
 IBE21D60mi57°
 SUR21D115mi75°
 LAM21D138mi81°
 MIG21D124mi101°
 PON21D66mi120°
 NXD21D50mi251°
 SAS21D57mi290°
 PIK21D65mi328°
RW36L
 IBE73D, IBE71D60mi57°
 SUR73D, SUR71D115mi75°
 LAM71D, LAM73D138mi81°
 MIG71D124mi101°
 PON71D66mi120°
 NXD71D50mi251°
 SAS71D, SAS72D57mi290°
 PIK72D, PIK71D65mi328°
RW36R
 IBE71D, IBE73D60mi57°
 SUR71D, SUR73D115mi75°
 LAM73D, LAM71D138mi81°
 MIG71D124mi101°
 PON71D66mi120°
 NXD71D50mi251°
 SAS71D, SAS72D57mi290°
 PIK71D, PIK72D65mi328°

STAR starting pointsdistanceinbound heading
RW18 (ALL)
 SUP31A, SUP61A75.522°
 SAS31A, SAS61A, SAS62A56.9110°
 PUD31A, PUD61A22.9275°
RW36 (ALL)
 SUP71A, SUP21A75.522°
 SAS71A, SAS21A56.9110°
 PUD72A, PUD71A, PUD21A22.9275°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AND21AAND28VHFright192 (12)°9850ft - 16700ft1.5min timed225
AND31AAND28VHFright192 (12)°9850ft - 16700ft1.5min timed225
AND31ACGTNDBright183 (3)°> 5910ft1.0min timed225
AND32ACGTNDBright183 (3)°> 5910ft1.0min timed225
AND61ASS207VHFright192 (12)°9850ft - 16700ft1.5min timed230
AND71ASS207VHFright192 (12)°9850ft - 16700ft1.5min timed230
PUD21ACGTNDBright183 (3)°> 5910ft1.0min timed225
PUD31ACGTNDBright183 (3)°> 5910ft1.0min timed225
SAS21ACGTNDBright183 (3)°> 5910ft1.0min timed225
SUP31ACGTNDBright183 (3)°> 5910ft1.0min timed225
*) magnetic outbound (inbound) holding course
