Airports for X-Plane

Wenzhou - Wenzhou Longwan Intl

Airport details

CountryChina
StateZhejiang
RegionZS
AirspaceShanghai Ctr
MunicipalityWenzhou
Elevation16ft (5m)
TimezoneGMT +8
Coordinates27.91000, 120.85333
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSWZ
IATA codeWNZ
FAA coden/a

Communication

Wenzhou Longwan Intl ATIS127.050
Wenzhou Longwan Intl Wenzhou Ground121.850
Wenzhou Longwan Intl Wenzhou Tower118.875
Wenzhou Longwan Intl Wenzhou Approach 01119.625
Wenzhou Longwan Intl Wenzhou Approach 02120.250
Wenzhou Longwan Intl Wenzhou Approach 03127.975
Wenzhou Longwan Intl Wenzhou Approach STBY132.150

Approach frequencies

ILS-cat-IRW03110.318.00mi
ILS-cat-IRW21108.718.00mi
3° GSRW03110.318.00mi
3° GSRW21108.718.00mi
Nearby Points of Interest:
Yandangshan Geopark

Runway info

Runway 03 / 21
 length3203m (10509ft)
 bearing31° / 211°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

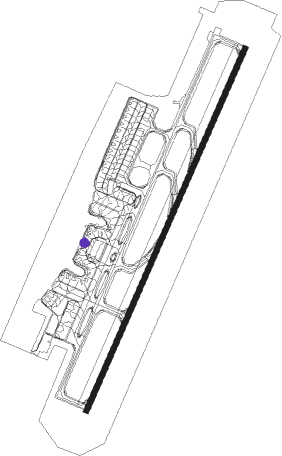

Airport layout - parking location 214


Taxiway locations

 A2  A4  A6  A7  A8  B  C  C2
 C3  C4  C5  C6  C8  L1
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  201  202  203
 204  205  206  207  207A  208  208A  209
 21  210  211  212  213  214  215  216
 217  218  219  22  220  221  222  223
 224  225  226  227  228  229  23  230
 231  24  25  3  4  5  6  7
 8  9

Nearby beacons

codeidentifierdistbearingfrequency
WNZWENZHOU VOR/DME1.231°116.40
DSTDONGSHAN VOR/DME15.2234°109.20

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW03
 BEG52X, BEG51X, BEG13D, BEG11D52mi85°
 OKA52X, OKA51X, OKA13D, OKA11D43mi114°
 LJG52X, LJG51X, LJG13D, LJG11D123mi218°
 BZ52X, BZ51X, BZ13D, BZ11D69mi278°
 SHZ53X, SHZ52X, SHZ51X, SHZ15D, SHZ13D, SHZ11D102mi359°
RW21
 BEG62X, BEG61X, BEG12D52mi85°
 OKA62X, OKA61X, OKA12D43mi114°
 LJG62X, LJG61X, LJG12D123mi218°
 BZ61X, BZ14D, BZ12D69mi278°
 SHZ12D, SHZ14D, SHZ16D, SHZ61X102mi359°

STAR starting pointsdistanceinbound heading
RW03
 LJG01A, LJG51F, LJG52F123.138°
 BZ01A, BZ51F69.498°
 SHZ01A, SHZ51F, SHZ03A101.5179°
 BEG01A, BEG51F52.2265°
 OKA51F, OKA01A43.1294°
RW21
 LJG62F, LJG61F, LJG04A, LJG02A123.138°
 BZ63F, BZ62F, BZ61F, BZ04A, BZ02A69.498°
 SHZ04A, SHZ02A, SHZ61F, SHZ62F, SHZ06A101.5179°
 BEG04A, BEG61F, BEG02A52.2265°
 OKA61F, OKA02A43.1294°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEG01ACHAREVHFleft81 (261)°> 6890ft1.0min timed215
BEG02ACHAREVHFleft81 (261)°> 6890ft1.0min timed215
BEG02AWNZNDBleft19 (199)°> 4930ft1.0min timed215
BEG51FWZ508VHFleft32 (212)°1.0min timed215
BEG61FWZ605VHFleft212 (32)°1.0min timed215
BZ01ADSTNDBright285 (105)°> 4930ft1.0min timed215
BZ02ADSTNDBright285 (105)°> 4930ft1.0min timed215
BZ02AWNZNDBleft19 (199)°> 4930ft1.0min timed215
BZ51FDSTNDBright285 (105)°> 4930ft1.0min timed215
BZ61FDSTNDBright285 (105)°> 4930ft1.0min timed215
BZ61FWZ605VHFleft212 (32)°1.0min timed215
BZ62FWZ605VHFleft212 (32)°1.0min timed215
LJG01ADSTNDBright285 (105)°> 4930ft1.0min timed215
LJG02ADSTNDBright285 (105)°> 4930ft1.0min timed215
LJG02AWNZNDBleft19 (199)°> 4930ft1.0min timed215
LJG04ADSTNDBright285 (105)°> 4930ft1.0min timed215
LJG51FDSTNDBright285 (105)°> 4930ft1.0min timed215
LJG61FDSTNDBright285 (105)°> 4930ft1.0min timed215
LJG61FWZ605VHFleft212 (32)°1.0min timed215
LJG62FDSTNDBright285 (105)°> 4930ft1.0min timed215
OKA01AANDBleft153 (333)°> 3940ft1.0min timed215
OKA02AANDBleft153 (333)°> 3940ft1.0min timed215
OKA02AWNZNDBleft19 (199)°> 4930ft1.0min timed215
OKA51FWZ508VHFleft32 (212)°1.0min timed215
OKA61FWZ605VHFleft212 (32)°1.0min timed215
SHZ01ADSTNDBright285 (105)°> 4930ft1.0min timed215
SHZ02ADSTNDBright285 (105)°> 4930ft1.0min timed215
SHZ02AWNZNDBleft19 (199)°> 4930ft1.0min timed215
SHZ03AWNZNDBleft19 (199)°> 4930ft1.0min timed215
SHZ51FDSTNDBright285 (105)°> 4930ft1.0min timed215
SHZ61FWZ605VHFleft212 (32)°1.0min timed215
*) magnetic outbound (inbound) holding course
