Airports for X-Plane

Mianyang - Mianyang Nanjiao

Airport details

CountryChina
StateSichuan
Region
AirspaceKunming Ctr
MunicipalityFucheng
Elevation1574ft (480m)
TimezoneGMT +8
Coordinates31.43852, 104.73209
Magnetic var
Typeland
Available sinceX-Plane v10.51
ICAO codeZUMY
IATA codeMIG
FAA coden/a

Communication

Mianyang Nanjiao Tower118.300

Runway info

Runway 14 / 32
 length2400m (7874ft)
 bearing138° / 318°
 width45m (148ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)

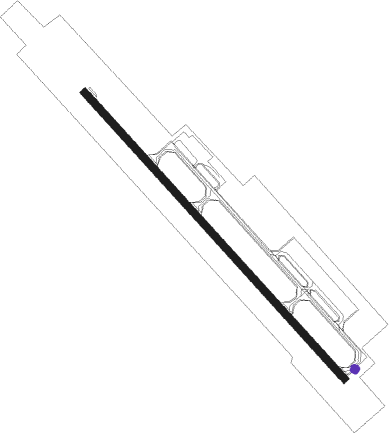

Airport layout - taxiway location A1


Taxiway locations

 A1  A2  A3  A4
Parking locations

 G1  G2  G3  G4  School

Nearby beacons

codeidentifierdistbearingfrequency
MYGMIANYANG VOR/DME0.3167°114.80
CDXDEXIN VOR/DME21.3242°116.35
JTGJINTANG VOR/DME38.3211°115.40
ZGAZHUGAO VOR/DME50.8180°115.25
WFXWUFENGXI VOR/DME51.4196°117.10
BHSBAIHESI VOR/DME62210°117.90
CTUSHUANGLIU VOR/DME65.9222°115.70
ZSHUANGLIU (CHENGDU) NDB67222°396
ZWCHENGDU NDB70.5221°260
