Airports for X-Plane

Kashgar - Kashi

Airport details

CountryChina
StateXinjiang
RegionZW
AirspaceUrumqi Ctr
MunicipalityKashgar City
Elevation4526ft (1380m)
TimezoneGMT +8
Coordinates39.54500, 76.02167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZWSH
IATA codeKHG
FAA coden/a

Communication

Kashi Tower130.000
Kashi Tower118.500

Approach frequencies

ILS-cat-IRW26111.118.00mi
ILS-cat-IRW08109.918.00mi
3° GSRW26111.118.00mi
3° GSRW08109.918.00mi

Runway info

Runway 08 / 26
 length3190m (10466ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

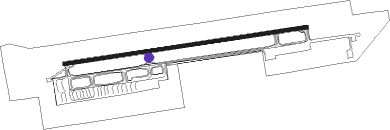

Airport layout - taxiway location A3


Taxiway locations

 A  A1  A3  A7  A8  B1  B2  B3
 B4  B5  T
Parking locations

 1  2  201  202  203  204  205  206
 207  208  209  210  211  212  213  214
 215  216  3  4  5  6

Nearby beacons

codeidentifierdistbearingfrequency
KHGKASHI VOR/DME0.145°115.70
LKASHI NDB1.392°210
XKASHI NDB1.5263°223

Departure and arrival routes

Transition altitude13779ft
Transition level15748ft
SID end pointsdistanceoutbound heading
RW08
 AKS01D, AKS08D221mi68°
 MAG01D, MAG08D90mi123°
RW26
 AKS11D, AKS18D221mi68°
 MAG11D, MAG18D90mi123°

STAR starting pointsdistanceinbound heading
RW08
 AKS01A, AKS09A220.5248°
 MAG01A, MAG09A90.1303°
RW26
 AKS11A, AKS19A220.5248°
 MAG19A, MAG12A, MAG11A90.1303°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKS01AKHGNDBleft83 (263)°> 9850ft1.0min timed205
AKS09ASH807VHFleft83 (263)°> 8860ft1.0min timed230
AKS19ASH604VHFleft32 (212)°> 8860ft1.0min timed230
MAG01AKHGNDBleft83 (263)°> 9850ft1.0min timed205
MAG09ASH807VHFleft83 (263)°> 8860ft1.0min timed230
MAG12AKHGNDBleft83 (263)°> 9850ft1.0min timed205
MAG19ASH605VHFright173 (353)°> 7880ft1.0min timed230
*) magnetic outbound (inbound) holding course
