Airports for X-Plane

Ürümqi - Diwopu

Airport details

CountryChina
StateXinjiang
RegionZW
AirspaceUrumqi Ctr
MunicipalityToutunhe
Elevation2125ft (648m)
TimezoneGMT +8
Coordinates43.90833, 87.47500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZWWW
IATA codeURC
FAA coden/a

Communication

Diwopu ATIS126.700
Diwopu DLV121.900
Diwopu Ground Control121.650
Diwopu Tower118.100
Diwopu Tower125.000

Approach frequencies

ILS-cat-IIRW25110.318.00mi
ILS-cat-IRW07109.718.00mi
3° GSRW07109.718.00mi
3° GSRW25110.318.00mi

Runway info

Runway 07 / 25
 length3589m (11775ft)
 bearing78° / 258°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

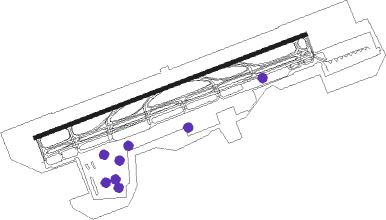

Airport layout - parking location Ramp


Parking locations

 Cargo  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
WURURUMQI VOR/DME1.480°115.30
ODIWOPU (URUMQI) NDB1.5256°212
FKGFUKANG VOR/DME27.162°116.30

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW07
 VAR09D, VAR01D27mi26°
 FKG01D44mi78°
 KEX09D86mi100°
 EPD09D, EPD06D, EPD07D, EPD08D67mi244°
 KAB01D40mi244°
 NIX06D, NIX07D, NIX08D, NIX09D63mi258°
RW25
 VAR11D, VAR18D, VAR19D27mi26°
 VES19D58mi59°
 FKG11D44mi78°
 KEX19D86mi100°
 EPD19D, EPD18D67mi244°
 KAB11D40mi244°
 NIX18D, NIX19D63mi258°
 IKA19D53mi329°

STAR starting pointsdistanceinbound heading
RW07
 EPD01A, EPD08A, EPD09A66.564°
 NIX09A, NIX08A, NIX01A62.978°
 UGP09A, UGP08A39.4164°
 FKG01A43.5258°
 AGO08A, AGO09A60.0263°
 DUM09A, DUM08A57.9268°
RW25
 EPD11A, EPD18A, EPD19A, EPD12A66.564°
 NIX11A, NIX18A, NIX19A, NIX12A62.978°
 IKA19A53.0149°
 UGP17A, UGP19A, UGP18A39.4164°
 FKG11A, FKG12A43.5258°
 AGO17A, AGO18A, AGO19A, AGO16A60.0263°
 DUM19A, DUM18A57.9268°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGO08AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
AGO09AFF807VHFright71 (251)°> 4930ft1.0min timed230
AGO09AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
AGO17AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
AGO18AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
DUM08AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
DUM09AFF807VHFright71 (251)°> 4930ft1.0min timed230
DUM09AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
DUM18AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
DUM19AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
EPD01AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
EPD08AWW433VHFright235 (55)°> 18700ft1.5min timed250
EPD09AWW433VHFright235 (55)°> 18700ft1.5min timed250
EPD11AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
EPD12AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
EPD18AWW433VHFright235 (55)°> 18700ft1.5min timed250
EPD19AWW433VHFright235 (55)°> 18700ft1.5min timed250
FKG01AD245RVHFright65 (245)°> 4930ft1.0min timedICAO rules
FKG01AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
FKG11AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
FKG12AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
NIX01AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
NIX08AWW433VHFright235 (55)°> 18700ft1.5min timed250
NIX09AWW433VHFright235 (55)°> 18700ft1.5min timed250
NIX11AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
NIX12AWUR34VHFleft234 (54)°> 16700ftDME 7.0miICAO rules
NIX18AWW433VHFright235 (55)°> 18700ft1.5min timed250
NIX19AWW433VHFright235 (55)°> 18700ft1.5min timed250
UGP08AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
UGP09AFF807VHFright71 (251)°> 4930ft1.0min timed230
UGP09AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
UGP17AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
UGP18AFKGNDBright65 (245)°> 7880ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
