Airports for X-Plane

Dalian - Zhoushuizi

Airport details

CountryChina
StateLiaoning
RegionZY
AirspaceShenyang Ctr
MunicipalityPaoya Subdistrict
Elevation107ft (33m)
TimezoneGMT +8
Coordinates38.96667, 121.54000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZYTL
IATA codeDLC
FAA coden/a

Communication

ZHOUSHUIZI ATIS126.650
ZHOUSHUIZI Ground Control121.650
ZHOUSHUIZI DALIAN Tower118.250
ZHOUSHUIZI DALIAN Approach01123.850
ZHOUSHUIZI DALIAN Approach02119.600

Approach frequencies

ILS-cat-IRW28111.118.00mi
ILS-cat-IRW10109.118.00mi
3.3° GSRW10109.118.00mi
3° GSRW28111.118.00mi
Nearby Points of Interest:
Modern Buildings on Zhongshan Square in Dalian

Runway info

Runway 10 / 28
 length3302m (10833ft)
 bearing95° / 275°
 width45m (148ft)
 surfaceasphalt
 displ threshold200m (656ft) / 100m (328ft)
 blast zone50m (164ft) / 50m (164ft)

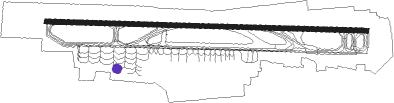

Airport layout - parking location 211


Taxiway locations

 A  A1  A2  B  C  E
Parking locations

 11  12  13  14  145  146  147  15
 16  17  18  19  20  201  202  203
 204  205  206  207  208  209  21  210
 211  212  213  214  215  216  217  218
 219  22  220  23  24  25  26  27
 27L  27R  28

Nearby beacons

codeidentifierdistbearingfrequency
KZHOUSHUIZI (DALIAN) NDB1.397°257
DBLDALIAN VOR/DME1.499°115.40
ZZHOUSHUIZI (DALIAN) NDB1.4272°440
ZFZHOUSHUIZI (DALIAN) NDB2.8274°391
KDZHOUSHUIZI (DALIAN) NDB2.996°530
FCFUJIAZHUANG NDB7.2138°213

Departure and arrival routes

Transition altitude9843ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW10
 SAN09D, SAN08D, SAN02D, SAN01D61mi128°
 KAR09D, KAR01D, KAR02D, KAR08D58mi229°
 ORA09D, ORA03D, ORA02D, ORA01D64mi259°
 SAR09D65mi264°
RW28
 SAN19D, SAN18D, SAN11D61mi128°
 KAR19D, KAR18D, KAR11D, KAR12D, KAR17D58mi229°
 ORA19D, ORA18D, ORA13D, ORA12D, ORA11D64mi259°
 SAR19D65mi264°

STAR starting pointsdistanceinbound heading
RW10
 NIX02A, NIX08A, NIX07A, NIX03A, NIX01A50.238°
 ANR01A, ANR08A, ANR07A, ANR03A, ANR02A76.379°
 SAN08A, SAN07A, SAN02A, SAN01A60.7308°
RW28
 NIX19A, NIX18A, NIX11A50.238°
 ANR19A, ANR18A, ANR11A76.379°
 SAN11A, SAN19A60.7308°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YTL106 (112°)TL106 3940ft
TL102 (6mi, 187°) 2960ft
RW10-YTL107 (76°)TL107 3940ft
TL105 (5mi, 274°)
TL103 (5mi, 7°) 2960ft
TL102 (5mi, 92°) 2960ft
 RNAVTL102 2960ft
TL503 (4mi, 92°) 2960ft
TL501 (6mi, 92°)
TL500 (1mi, 92°) 155ft
TL504 (5mi, 92°)
FC (6mi, 183°) 2960ft
TL111 (7mi, 274°) 4930ft
RW10-ZTL106 (112°)TL106 3940ft
TL102 (6mi, 187°) 2960ft
RW10-ZTL107 (76°)TL107 3940ft
TL105 (5mi, 274°)
TL103 (5mi, 7°) 2960ft
TL102 (5mi, 92°) 2960ft
 RNAVTL102 2960ft
TL502 (5mi, 92°) 2960ft
TL501 (6mi, 92°)
TL500 (1mi, 92°) 159ft
TL504 (5mi, 92°)
FC (6mi, 183°) 2960ft
TL111 (7mi, 274°) 4930ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANR02AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
ANR03AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
ANR07ATL111VHFleft103 (283)°> 4930ft1.0min timed210
ANR08ATL111VHFleft103 (283)°> 4930ft1.0min timed210
ANR11AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
ANR18ATL311VHFright283 (103)°> 4930ft1.0min timed210
CHI02AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
CHI07ATL111VHFleft103 (283)°> 4930ft1.0min timed210
CHI08ATL111VHFleft103 (283)°> 4930ft1.0min timed210
CHI19ATL304VHFright103 (283)°> 3940ft1.0min timed210
NIX01ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX02ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX02AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
NIX03ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX03AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
NIX07ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX07ATL111VHFleft103 (283)°> 4930ft1.0min timed210
NIX08ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX08ATL111VHFleft103 (283)°> 4930ft1.0min timed210
NIX11ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX11AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
NIX18ADOBGAVHFright203 (23)°1.0min timedICAO rules
NIX18ATL311VHFright283 (103)°> 4930ft1.0min timed210
NIX19ADOBGAVHFright203 (23)°1.0min timedICAO rules
SAN01AUDETIVHFleft153 (333)°1.0min timed250
SAN02AFCFIXleft103 (283)°> 4930ft1.0min timedICAO rules
SAN02AUDETIVHFleft153 (333)°1.0min timed250
SAN07ATL111VHFleft103 (283)°> 4930ft1.0min timed210
SAN07AUDETIVHFleft153 (333)°1.0min timed250
SAN08ATL111VHFleft103 (283)°> 4930ft1.0min timed210
SAN08AUDETIVHFleft153 (333)°1.0min timed250
SAN11AUDETIVHFleft153 (333)°1.0min timed250
SAN19ATL304VHFright103 (283)°> 3940ft1.0min timed210
SAN19AUDETIVHFleft153 (333)°1.0min timed250
*) magnetic outbound (inbound) holding course
