Airports for X-Plane

Leduc - Edmonton Intl

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityLeduc County
Elevation2373ft (723m)
TimezoneGMT -7
Coordinates53.30989, -113.57950
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYEG
IATA codeYEG
FAA coden/a

Communication

Edmonton Intl ATIS128.000
Edmonton Intl Clearance124.100
Edmonton Intl Ground121.700
Edmonton Intl Tower118.300
Edmonton Intl Departure133.650

Approach frequencies

ILS-cat-IRW02110.318.00mi
ILS-cat-IRW12109.918.00mi
ILS-cat-IRW30109.118.00mi
3° GSRW02110.318.00mi
3° GSRW12109.918.00mi
3° GSRW30109.118.00mi
Nearby Points of Interest:
Fort Edmonton
-
Alberta Legislature Building
-
Molson Brewery
-
Queen Elizabeth II Planetarium

Runway info

Runway 12 / 30
 length3111m (10207ft)
 bearing121° / 301°
 width61m (200ft)
 surfaceasphalt
 blast zone31m (102ft) / 27m (89ft)
Runway 02 / 20
 length3354m (11004ft)
 bearing49° / 229°
 width61m (200ft)
 surfaceasphalt
 blast zone31m (102ft) / 31m (102ft)

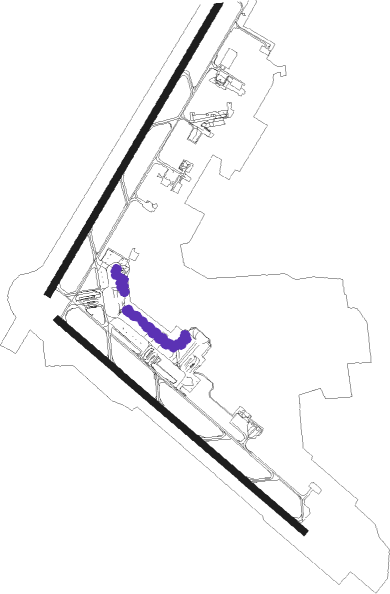

Airport layout - parking location Gate


Taxiway locations

 A  A1  A2  A3  A4  B  B1  B2
 B4  N  V  Y
Parking locations

 Airco  Cargo  Executive  FedEx  Gate  Medevac  North  Ramp
 Shell  Stand  YEG

Nearby beacons

codeidentifierdistbearingfrequency
ZETDEVON (EDMONTON) NDB4.2295°292
ZZDCALMAR (EDMONTON) NDB4.4235°308
ZABLEDUC (EDMONTON) NDB5.1127°215
YEGEDMONTON VOR/DME12.7247°117.60
EBNAMAO (EDMONTON) NDB21.918°256
2KCAMROSE NDB32.2110°405
D3PONOKA INDUS NDB37.6182°363

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 GABET111mi47°
RW12
 JEVON112mi123°
RW20
 HAMPO111mi232°
RW30
 MIPOT111mi298°

STAR starting pointsdistanceinbound heading
RW02
 ESKIE216.287°
 TETAG234.8145°
 RESAX119.5217°
 IGSOX321.6291°
 OILRS215.8355°
RW12
 ESKIE216.287°
 TETAG234.8145°
 RESAX119.5217°
 IGSOX321.6291°
 OILRS215.8355°
RW20
 ESKIE216.287°
 TETAG234.8145°
 RESAX119.5217°
 IGSOX321.6291°
 OILRS215.8355°
RW30
 ESKIE216.287°
 TETAG234.8145°
 RESAX119.5217°
 IGSOX321.6291°
 OILRS215.8355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-YAPKIT (87°)APKIT 8000ft
AXULA (11mi, 99°) 4500ft
URVOG (3mi, 78°) 3600ft
RW02-YHAMPO (52°)HAMPO 5000ft
URVOG (7mi, 49°) 3600ft
RW02-YMASUD (355°)MASUD 7500ft
EMBET (11mi, 327°) 4300ft
URVOG (2mi, 11°) 3600ft
 RNAVURVOG 3600ft
CYEG (4mi, 55°) 2377ft
GABET (11mi, 47°) 5000ft
GABET (turn)
RW02-ZBIPNA (19°)BIPNA 5000ft
HAMPO (5mi, 293°) 5000ft
RW02-ZLENID (23°)LENID 5000ft
HAMPO (5mi, 307°) 5000ft
RW02-ZVIGVI (72°)VIGVI 5000ft
HAMPO (5mi, 113°) 5000ft
 RNAVHAMPO 5000ft
URVOG (7mi, 49°) 3600ft
CYEG (4mi, 55°) 2377ft
GABET (11mi, 47°) 5000ft
GABET (turn)
RW12-YAPKIT (87°)APKIT 8000ft
KAVUD (10mi, 70°) 5100ft
DUTKI (3mi, 94°) 4100ft
RW12-YDAVRU (173°)DAVRU 7600ft
UKPUM (2mi, 301°) 7000ft
XUDGA (3mi, 277°) 6100ft
VESBA (4mi, 199°) 4500ft
DUTKI (2mi, 121°) 4100ft
RW12-YMIPOT (118°)MIPOT 5000ft
VESBA (3mi, 121°) 4500ft
DUTKI (2mi, 121°) 4100ft
RW12-YTILOV (197°)TILOV 8000ft
XUDGA (7mi, 257°) 5800ft
VESBA (4mi, 199°) 4500ft
DUTKI (2mi, 121°) 4100ft
RW12-YTULID (82°)TULID 7000ft
MOGIX (2mi, 301°) 6400ft
KAVUD (4mi, 11°) 5100ft
DUTKI (3mi, 94°) 4100ft
 RNAVDUTKI 4100ft
CYEG (6mi, 116°) 2383ft
JEVON (12mi, 123°) 5000ft
JEVON (turn)
RW12-ZBEMIG (100°)BEMIG 5000ft
MIPOT (5mi, 59°) 5000ft
RW12-ZOBSUK (146°)OBSUK 6000ft
MIPOT (5mi, 239°) 5000ft
 RNAVMIPOT 5000ft
DUTKI (5mi, 121°) 4100ft
CYEG (6mi, 116°) 2383ft
JEVON (12mi, 123°) 5000ft
JEVON (turn)
RW20-YGABET (227°)GABET 5000ft
ONGUL (5mi, 230°) 4000ft
RW20-YGOPEV (281°)GOPEV 8000ft
DENDU (8mi, 343°) 5800ft
ONGUL (5mi, 277°) 4000ft
RW20-YUDLAR (265°)UDLAR 7000ft
GOTUL (2mi, 50°) 6400ft
DENDU (2mi, 20°) 5800ft
ONGUL (5mi, 277°) 4000ft
RW20-YUMIBA (154°)UMIBA 7000ft
APLOS (2mi, 49°) 6400ft
BITKA (4mi, 86°) 5100ft
ONGUL (3mi, 169°) 4000ft
RW20-YVIPSO (149°)VIPSO 8500ft
BITKA (12mi, 118°) 5100ft
ONGUL (3mi, 169°) 4000ft
 RNAVONGUL 4000ft
CYEG (6mi, 225°) 2387ft
HAMPO (11mi, 232°) 5000ft
HAMPO (turn)
RW20-ZDUDKO (195°)DUDKO 5000ft
GABET (5mi, 113°) 5000ft
RW20-ZVOGAP (249°)VOGAP 5000ft
GABET (5mi, 293°) 5000ft
 RNAVGABET 5000ft
ONGUL (5mi, 230°) 4000ft
CYEG (6mi, 225°) 2387ft
HAMPO (11mi, 232°) 5000ft
HAMPO (turn)
RW30-YJEVON (303°)JEVON 5000ft
SEKOB (5mi, 301°) 4100ft
RW30-YKISOD (10°)KISOD 7000ft
PIKPA (2mi, 121°) 6400ft
XUGEX (4mi, 84°) 5000ft
SEKOB (3mi, 345°) 4100ft
RW30-YLETIX (256°)LETIX 8000ft
LIDIR (7mi, 190°) 5800ft
SEKOB (5mi, 258°) 4100ft
RW30-YMASUD (355°)MASUD 7500ft
XUGEX (9mi, 40°) 5000ft
SEKOB (3mi, 345°) 4100ft
RW30-YOMENA (262°)OMENA 7700ft
SEDEN (4mi, 121°) 6500ft
LIDIR (2mi, 150°) 5800ft
SEKOB (5mi, 258°) 4100ft
 RNAVSEKOB 4100ft
CYEG (7mi, 305°) 2430ft
MIPOT (11mi, 298°) 5000ft
MIPOT (turn)
RW30-ZLOBTI (285°)LOBTI 5000ft
JEVON (5mi, 239°) 5000ft
RW30-ZSUVAT (330°)SUVAT 5000ft
JEVON (5mi, 59°) 5000ft
 RNAVJEVON 5000ft
SEKOB (5mi, 301°) 4100ft
XIBES (3mi, 301°) 3070ft
CYEG (3mi, 310°) 2430ft
MIPOT (11mi, 298°) 5000ft
MIPOT (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ESKIE2APKITVHFright253 (73)°1.0min timedICAO rules
ESKIE2ESKIEVHFleft253 (73)°1.0min timedICAO rules
IGSOX3CAMRAVHFleft85 (265)°< 60000ft1.5min timedICAO rules
IGSOX3IGSOXVHFright90 (270)°> 4100ft1.0min timedICAO rules
OILRS2MASUDVHFright162 (342)°1.0min timedICAO rules
OILRS2OILRSVHFleft162 (342)°1.0min timedICAO rules
RESAX1RESAXVHFleft4 (184)°1.0min timedICAO rules
RESAX1RUBSUVHFright4 (184)°1.0min timedICAO rules
TETAG2PESGOVHFright320 (140)°1.0min timed265
TETAG2TETAGVHFright323 (143)°3000ft - 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
