Montréal - Montreal Mirabel Intl

Airport details

Country	Canada
State	Quebec
Region	CY
Airspace	Montreal Ctr
Municipality	Laurentides
Elevation	270ft (82m)
Timezone	GMT -5
Coordinates	45.67931, -74.02657
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	CYMX
IATA code	YMX
FAA code	n/a

Communication

Montreal Mirabel Intl ATIS	125.700
Montreal Mirabel Intl Ground Control	121.800
Montreal Mirabel Intl Tower	119.100
Montreal Mirabel Intl Approach	124.650
Montreal Mirabel Intl VFR ADVSY	134.150
Montreal Mirabel Intl Departure	124.650

Approach frequencies

ILS-cat-II	RW06	111.3	18.00mi
ILS-cat-I	RW24	111.7	18.00mi
ILS-cat-I	RW11	110.9	18.00mi
3° GS	RW24	111.7	18.00mi
3° GS	RW11	110.9	18.00mi
3° GS	RW06	111.3	18.00mi

Runway info

Runway 06 / 24
	length	3656m (11995ft)
	bearing	55° / 235°
	width	61m (200ft)
	surface	concrete
	blast zone	61m (200ft) / 61m (200ft)
Runway 11 / 29
	length	3652m (11982ft)
	bearing	96° / 276°
	width	61m (200ft)
	surface	concrete
	blast zone	46m (151ft) / 46m (151ft)

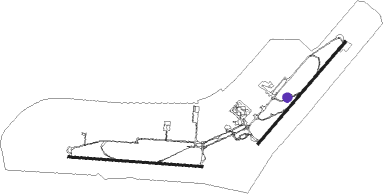

Airport layout - taxiway location B4

Taxiway locations

A	A6	AL	B	B4	B5	B6	D
E	G	H	I	J	K	T

Parking locations

04	05	06	07	08	09	10	11
111	112	113	114	115	116	A1	A2
A3	FBO_1	FBO_2	FBO_3	G	GA_1	GA_2	L3

Nearby beacons

code	identifier	dist	bearing	frequency
ZMR	HERMAS (MONTREAL) NDB	4.1	228°	272
YUL	MONTREAL VOR/DME	4.4	139°	116.30
ZMX	JANVIER (MONTREAL) NDB	5.8	60°	317
ZMM	JOLY (MONTREAL) NDB	6.6	271°	266
ZHU	HAUTS-BOIS (MONTREAL) NDB	29.3	100°	407
YJN	DME	39.1	121°	115.80
MSS	MASSENA TACAN	54.5	222°	114.10
MS	MISSE (MASSENA) NDB	62.1	227°	278
PTD	POTSDAM NDB	67.8	222°	400

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	LONRA (74°)	LONRA ABNEE (5mi, 125°) 3000ft
RW06	TOXON (23°)	TOXON ABNEE (5mi, 305°) 3000ft
	RNAV	ABNEE 3000ft OMSOP (6mi, 55°) 1600ft CYMX (4mi, 48°) 310ft PEMBU (13mi, 57°) 3000ft YUL (14mi, 219°) YUL (turn)
RW11	ADVID (78°)	ADVID GABUX (5mi, 12°) 3000ft
RW11	BEVUT (109°)	BEVUT GABUX (5mi, 192°) 3000ft
	RNAV	GABUX 3000ft KEDNO (6mi, 96°) 1600ft CYMX (7mi, 90°) 301ft (4739mi, 122°) 3000ft VIGMI (4743mi, 302°) 3000ft VIGMI (turn)
RW24	ENARA (255°)	ENARA ODGUS (5mi, 305°) 3000ft
RW24	OLAKI (213°)	OLAKI ODGUS (5mi, 125°) 3000ft
	RNAV	ODGUS 3000ft DERGO (6mi, 235°) 1600ft CYMX (6mi, 240°) 291ft (4739mi, 122°) 3000ft YUL (4736mi, 302°) 3000ft YUL (turn)
RW29	DUROS (259°)	DUROS GABGI (5mi, 192°) 3000ft
	RNAV	GABGI 3000ft AVPUD (6mi, 276°) 1500ft CYMX (3mi, 288°) 321ft KAVNO (6mi, 269°) 3000ft KAVNO (turn)
