Airports for X-Plane

Montréal - Montreal Mirabel Intl

Airport details

CountryCanada
StateQuebec
RegionCY
AirspaceMontreal Ctr
MunicipalityLaurentides
Elevation270ft (82m)
TimezoneGMT -5
Coordinates45.67931, -74.02657
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYMX
IATA codeYMX
FAA coden/a

Communication

Montreal Mirabel Intl ATIS125.700
Montreal Mirabel Intl Ground Control121.800
Montreal Mirabel Intl Tower119.100
Montreal Mirabel Intl VFR ADVSY134.150
Montreal Mirabel Intl Approach124.650
Montreal Mirabel Intl Departure124.650

Approach frequencies

ILS-cat-IIRW06111.318.00mi
ILS-cat-IRW24111.718.00mi
ILS-cat-IRW11110.918.00mi
3° GSRW24111.718.00mi
3° GSRW11110.918.00mi
3° GSRW06111.318.00mi

Runway info

Runway 06 / 24
 length3656m (11995ft)
 bearing55° / 235°
 width61m (200ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 11 / 29
 length3652m (11982ft)
 bearing96° / 276°
 width61m (200ft)
 surfaceconcrete
 blast zone46m (151ft) / 46m (151ft)

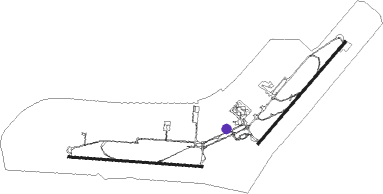

Airport layout - parking location GA_2


Taxiway locations

 A  A6  AL  B  B4  B5  B6  D
 E  G  H  I  J  K  T
Parking locations

 04  05  06  07  08  09  10  11
 111  112  113  114  115  116  A1  A2
 A3  FBO_1  FBO_2  FBO_3  G  GA_1  GA_2  L3

Nearby beacons

codeidentifierdistbearingfrequency
ZMRHERMAS (MONTREAL) NDB4.1228°272
YULMONTREAL VOR/DME4.4139°116.30
ZMXJANVIER (MONTREAL) NDB5.860°317
ZMMJOLY (MONTREAL) NDB6.6271°266
ZHUHAUTS-BOIS (MONTREAL) NDB29.3100°407
YJNDME39.1121°115.80
MSSMASSENA TACAN54.5222°114.10
MSMISSE (MASSENA) NDB62.1227°278
PTDPOTSDAM NDB67.8222°400

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LONRA (74°)LONRA
ABNEE (5mi, 125°) 3000ft
RW06TOXON (23°)TOXON
ABNEE (5mi, 305°) 3000ft
 RNAVABNEE 3000ft
OMSOP (6mi, 55°) 1600ft
CYMX (4mi, 48°) 310ft
PEMBU (13mi, 57°) 3000ft
YUL (14mi, 219°)
YUL (turn)
RW11ADVID (78°)ADVID
GABUX (5mi, 12°) 3000ft
RW11BEVUT (109°)BEVUT
GABUX (5mi, 192°) 3000ft
 RNAVGABUX 3000ft
KEDNO (6mi, 96°) 1600ft
CYMX (7mi, 90°) 301ft
(4739mi, 122°) 3000ft
VIGMI (4743mi, 302°) 3000ft
VIGMI (turn)
RW24ENARA (255°)ENARA
ODGUS (5mi, 305°) 3000ft
RW24OLAKI (213°)OLAKI
ODGUS (5mi, 125°) 3000ft
 RNAVODGUS 3000ft
DERGO (6mi, 235°) 1600ft
CYMX (6mi, 240°) 291ft
(4739mi, 122°) 3000ft
YUL (4736mi, 302°) 3000ft
YUL (turn)
RW29DUROS (259°)DUROS
GABGI (5mi, 192°) 3000ft
 RNAVGABGI 3000ft
AVPUD (6mi, 276°) 1500ft
CYMX (3mi, 288°) 321ft
KAVNO (6mi, 269°) 3000ft
KAVNO (turn)
