Airports for X-Plane

Cold Lake

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityCity of Cold Lake
Elevation1771ft (540m)
TimezoneGMT -7
Coordinates54.40500, -110.27944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYOD
IATA codeYOD
FAA codeYOD

Communication

Cold Lake Ground Control121.900
Cold Lake Tower126.200
Cold Lake ARR/Departure124.500
Cold Lake ARR134.100
Cold Lake ARR120.600
Cold Lake ARR119.400
Cold Lake ARR128.200

Approach frequencies

ILS-cat-IRW31R109.318.00mi
3° GSRW31R109.318.00mi

Runway info

Runway 13L / 31R
 length3843m (12608ft)
 bearing128° / 308°
 width61m (200ft)
 surfaceasphalt
 blast zone30m (98ft) / 30m (98ft)
Runway 04 / 22
 length2523m (8278ft)
 bearing67° / 247°
 width61m (200ft)
 surfaceasphalt
 blast zone0m (0ft) / 68m (223ft)
Runway 13R / 31L
 length3042m (9980ft)
 bearing129° / 309°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

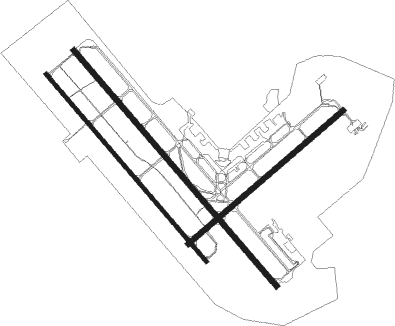

Airport layout


Taxiway locations

 A  A1  A2  A3  B  C  D  E
 G  H  J  K  L  M  N  P
Parking locations

 Gate  North  South

Nearby beacons

codeidentifierdistbearingfrequency
YODCOLD LAKE NDB0.5136°398
UODCOLD LAKE TACAN0.6282°113.50
8MELK POINT NDB35.3224°414

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04EBMUX (81°)EBMUX
OMLUN (5mi, 128°) 4100ft
RW04NORAV (46°)NORAV
OMLUN (5mi, 308°) 4100ft
 RNAVOMLUN 4100ft
RERIM (5mi, 67°) 4050ft
CYOD (7mi, 65°) 1822ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW13LANEKA (153°)ANEKA
UDKAM (5mi, 247°) 4100ft
RW13LNAGDU (110°)NAGDU
UDKAM (5mi, 67°) 4100ft
 RNAVUDKAM 4100ft
AGLAV (5mi, 128°) 4050ft
ITGUG (5mi, 128°) 2620ft
CYOD (4mi, 125°) 1822ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW13RALNAS (152°)ALNAS
SEBAT (5mi, 247°) 4100ft
RW13RBOLRA (109°)BOLRA
SEBAT (5mi, 67°) 4100ft
 RNAVSEBAT 4100ft
UDNIR (5mi, 128°) 4050ft
ELVUV (5mi, 128°) 2620ft
CYOD (4mi, 122°) 1821ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW22ALUXI (262°)ALUXI
EMGUL (5mi, 309°) 4100ft
RW22VITUV (229°)VITUV
EMGUL (5mi, 129°) 4100ft
 RNAVEMGUL 4100ft
TUDEL (5mi, 247°) 4050ft
CYOD (8mi, 248°) 1817ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW31LALSAG (291°)ALSAG
EPBED (5mi, 247°) 4100ft
RW31LILULU (339°)ILULU
EPBED (5mi, 67°) 4100ft
 RNAVEPBED 4100ft
OBMUX (5mi, 309°) 4050ft
BIRDA (3mi, 309°) 3030ft
CYOD (4mi, 315°) 1823ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW31RPITID (337°)PITID
TAMAV (5mi, 67°) 4100ft
RW31RUDPAG (291°)UDPAG
TAMAV (5mi, 247°) 4100ft
 RNAVTAMAV 4100ft
UDLOT (5mi, 309°) 4050ft
APMEG (4mi, 309°) 2650ft
CYOD (3mi, 312°) 1819ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
