Airports for X-Plane

Cold Lake

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityCity of Cold Lake
Elevation1771ft (540m)
TimezoneGMT -7
Coordinates54.40500, -110.27944
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYOD
IATA codeYOD
FAA codeYOD

Communication

Cold Lake Ground Control121.900
Cold Lake Tower126.200
Cold Lake ARR134.100
Cold Lake ARR120.600
Cold Lake ARR119.400
Cold Lake ARR128.200
Cold Lake ARR/Departure124.500

Approach frequencies

ILS-cat-IRW31R109.318.00mi
3° GSRW31R109.318.00mi

Runway info

Runway 13L / 31R
 length3843m (12608ft)
 bearing128° / 308°
 width61m (200ft)
 surfaceasphalt
 blast zone30m (98ft) / 30m (98ft)
Runway 04 / 22
 length2523m (8278ft)
 bearing67° / 247°
 width61m (200ft)
 surfaceasphalt
 blast zone0m (0ft) / 68m (223ft)
Runway 13R / 31L
 length3042m (9980ft)
 bearing129° / 309°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

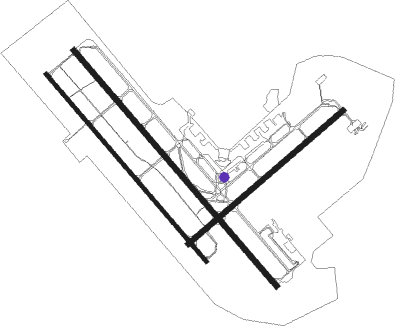

Airport layout - taxiway location P


Taxiway locations

 A  A1  A2  A3  B  C  D  E
 G  H  J  K  L  M  N  P
Parking locations

 Gate  North  South

Nearby beacons

codeidentifierdistbearingfrequency
YODCOLD LAKE NDB0.5136°398
UODCOLD LAKE TACAN0.6282°113.50
8MELK POINT NDB35.3224°414

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04EBMUX (81°)EBMUX
OMLUN (5mi, 128°) 4100ft
RW04NORAV (46°)NORAV
OMLUN (5mi, 308°) 4100ft
 RNAVOMLUN 4100ft
RERIM (5mi, 67°) 4050ft
CYOD (7mi, 65°) 1822ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW13LANEKA (153°)ANEKA
UDKAM (5mi, 247°) 4100ft
RW13LNAGDU (110°)NAGDU
UDKAM (5mi, 67°) 4100ft
 RNAVUDKAM 4100ft
AGLAV (5mi, 128°) 4050ft
ITGUG (5mi, 128°) 2620ft
CYOD (4mi, 125°) 1822ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW13RALNAS (152°)ALNAS
SEBAT (5mi, 247°) 4100ft
RW13RBOLRA (109°)BOLRA
SEBAT (5mi, 67°) 4100ft
 RNAVSEBAT 4100ft
UDNIR (5mi, 128°) 4050ft
ELVUV (5mi, 128°) 2620ft
CYOD (4mi, 122°) 1821ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW22ALUXI (262°)ALUXI
EMGUL (5mi, 309°) 4100ft
RW22VITUV (229°)VITUV
EMGUL (5mi, 129°) 4100ft
 RNAVEMGUL 4100ft
TUDEL (5mi, 247°) 4050ft
CYOD (8mi, 248°) 1817ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW31LALSAG (291°)ALSAG
EPBED (5mi, 247°) 4100ft
RW31LILULU (339°)ILULU
EPBED (5mi, 67°) 4100ft
 RNAVEPBED 4100ft
OBMUX (5mi, 309°) 4050ft
BIRDA (3mi, 309°) 3030ft
CYOD (4mi, 315°) 1823ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
RW31RPITID (337°)PITID
TAMAV (5mi, 67°) 4100ft
RW31RUDPAG (291°)UDPAG
TAMAV (5mi, 247°) 4100ft
 RNAVTAMAV 4100ft
UDLOT (5mi, 309°) 4050ft
APMEG (4mi, 309°) 2650ft
CYOD (3mi, 312°) 1819ft
(6104mi, 116°) 5000ft
OTODI (6092mi, 296°) 5000ft
