Airports for X-Plane

Accra - Kotoka Intl

Airport details

CountryGhana
StateGreater Accra Region
RegionDG
AirspaceAccra Ctr
MunicipalityAccra
Elevation204ft (62m)
TimezoneGMT +0
Coordinates5.60169, -0.16254
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeDGAA
IATA codeACC
FAA coden/a

Communication

Kotoka Intl ATIS113.100
Kotoka Intl Ground Control121.900
Kotoka Intl Tower118.600
Kotoka Intl Approach119.100
Kotoka Intl Approach119.500
Kotoka Intl Departure119.100

Approach frequencies

ILS-cat-IRW21109.918.00mi
3° GSRW21109.918.00mi
Nearby Points of Interest:
Fort Augustaborg
-
Ussher Fort
-
Sakumono Lagoon
-
Densu River
-
Fort Fredensborg

Runway info

Runway 03 / 21
 length3406m (11175ft)
 bearing22° / 202°
 width61m (200ft)
 surfaceasphalt
 displ threshold0m (0ft) / 408m (1339ft)
 blast zone119m (390ft) / 61m (200ft)

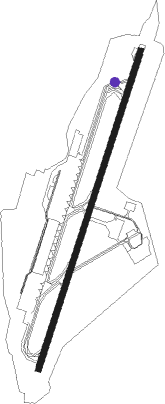

Airport layout - taxiway location A2


Taxiway locations

 A  A1  A2  A3  Y  Z
Parking locations

 B1  B2  B3  C1  C2  C3  C4  C5
 C6  C7  C8  D1  D2  D3  D4  D5
 D6  E1  E2  E3

Nearby beacons

codeidentifierdistbearingfrequency
ACCACCRA VOR/DME1.912°113.10
ALACCRA NDB2.2211°258

Departure and arrival routes

Transition altitude3000ft
Transition level4000ft
SID end pointsdistanceoutbound heading
RW03
 EREK1C61mi68°
 MIMT1C59mi266°
 KEMO1C61mi308°
RW21
 LITE1D62mi3°
 EREK1D61mi68°
 DIRK1D59mi247°
 MIMT1D59mi266°
 KEMO1D61mi308°

STAR starting pointsdistanceinbound heading
RW03
 MIMT1A59.386°
 KEMO1A60.8128°
 EREK1A61.1248°
RW21
 DIRK1B58.867°
 MIMT1B59.386°
 KEMO1B60.8128°
 LITE1B62.2183°
 EREK1B61.1248°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03NARAT (49°)NARAT 3500ft
ANOGA (5mi, 112°) 1900ft
RW03NARVO (359°)NARVO 3500ft
ANOGA (5mi, 292°) 1900ft
 RNAVANOGA 1900ft
AA400 (5mi, 22°) 1900ft
DGAA (6mi, 26°) 227ft
(337mi, 178°) 1100ft
NARVO (325mi, 358°) 3500ft
NARVO (turn) 3500ft
RW21AKMUS (201°)AKMUS 3900ft
KEDOS (5mi, 202°) 2300ft
RW21MISPA (176°)MISPA 3900ft
KEDOS (5mi, 112°) 2300ft
RW21RASET (226°)RASET 3900ft
KEDOS (5mi, 292°) 2300ft
 RNAVKEDOS 2300ft
AA500 (5mi, 202°) 1900ft
DGAA (6mi, 199°) 247ft
(337mi, 178°) 1100ft
RASET (345mi, 360°) 3900ft
RASET (turn) 3900ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DIRK1BAPATIVHFleft268 (88)°> 12000ft1.0min timedICAO rules
EREK1AAPERIVHFleft69 (249)°> 16000ft1.0min timedICAO rules
EREK1BAGSARVHFright85 (265)°> 9000ft1.0min timedICAO rules
KEMO1ASENANVHFright314 (134)°> 15000ft1.0min timedICAO rules
KEMO1BDISNOVHFleft308 (128)°> 11000ft1.0min timedICAO rules
LITE1BEDLABVHFright358 (178)°> 9000ft1.0min timedICAO rules
MIMT1ARAVEXVHFright279 (99)°> 10000ft1.0min timedICAO rules
MIMT1BAPATIVHFleft268 (88)°> 12000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
