Airports for X-Plane

Brussels - Brussels South Charleroi

Airport details

CountryBelgium
StateHainaut
RegionEB
AirspaceBrussels Ctr
MunicipalityCharleroi
Elevation561ft (171m)
TimezoneGMT +1
Coordinates50.46000, 4.45278
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEBCI
IATA codeCRL
FAA coden/a

Communication

Brussels South Charleroi Charleroi ATIS134.625
Brussels South Charleroi Charleroi Ground121.800
Brussels South Charleroi Charleroi Tower121.300
Brussels South Charleroi Charleroi Approach133.130

Approach frequencies

ILS-cat-IIIRW24110.918.00mi
3° GSRW24110.918.00mi
Nearby Points of Interest:
Maison Gaspar-Thibaut
-
Prieuré Saint-Michel de Sart-les-Moines
-
Maison Bertinchamps (Charleroi)
-
Maison La Fleur (Charleroi)
-
Maison des médecins
-
Charleroi City Hall
-
Maison du Bailli
-
Maison Dorée (Charleroi)
-
Maison Dermine
-
Hôtel des Postes
-
Passage de la Bourse (Charleroi)
-
Martinet coal mine
-
Immeuble De Heug
-
Résidence Albert
-
Montignies-sur-Sambre - Chapelle du Calvaire
-
Brasserie des Alliés
-
Amicale Solvay
-
Château Pirmez
-
Farciennes Castle
-
Cité de l'Enfance
-
domaine de Mariemont
-
Villers Abbey
-
Chapelle Notre-Dame de Foy
-
Château de la Cour au Bois
-
Tourette de Nivelles

Runway info

Runway 06 / 24
 length3238m (10623ft)
 bearing74° / 254°
 width45m (148ft)
 surfaceasphalt
 displ threshold447m (1467ft) / 689m (2260ft)

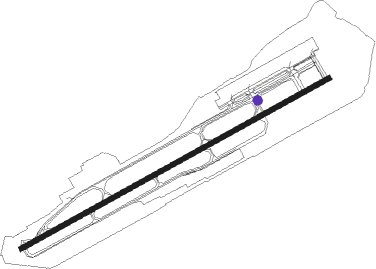

Airport layout - taxiway location N5


Taxiway locations

 M6  N  N3  N4  N5  N6  N7  S
 S3  S4
Parking locations

 GA  Gate  New

Nearby beacons

codeidentifierdistbearingfrequency
GSYGOSLY (CHARLEROI) VOR/DME0.5242°115.70
ONCCHARLEROI NDB4.374°323
BFSFLORENNES TACAN15.2137°111.50
HULHULDENBERG VOR/DME18.833°117.55
HTBBEAUVECHAIN NDB21.447°381
BBEBEAUVECHAIN TACAN21.547°116
OZBRUSSELS NATIONAL NDB222°314
CIVCHIEVRES VORTAC24.6280°113.20
BUBBRUSSELS VOR/DME26.711°114.60
OBBRUSSELS NDB28.320°293
OPBRUSSELS NATIONAL NDB29.216°402
AFIAFFLIGEM VOR/DME29.4325°114.90
FLOFLORA VOR/DME3659°112.05
BUNBRUNO VOR/DME42.231°110.60
ONWANTWERP NDB42.79°355
NIKNICKY VOR/DME43.5339°117.40
ANTANTWERP (DEURNE) VOR/DME43.82°113.50
MAKMACKEL NDB47.3298°360
WDTWOENSDRECHT TACAN59.4354°115
EHVEINDHOVEN TACAN68.843°117.20

Departure and arrival routes

Transition altitude4500ft
SID end pointsdistanceoutbound heading
RW06
 LNO7X49mi84°
 SPI7X45mi87°
 SOPO7X52mi99°
 RITA7X57mi106°
RW24
 LNO4U, LNO8Y49mi84°
 SPI4U, SPI8Y45mi87°
 SOPO4U, SOPO8Y52mi99°
 RITA8Y, RITA4U57mi106°
 MEDI4Y31mi261°

STAR starting pointsdistanceinbound heading
ALL
 ARVO4A36.895°
 KOK4A78.2110°
 NIK4A43.5159°
 BATY4A, BATY5B54.4262°
 LNO4A, LNO5B48.6264°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06GSY (62°)GSY 3000ft
BIBOS (7mi, 278°) 3000ft
ABLIX (4mi, 254°) 2500ft
REKPI (4mi, 144°) 2500ft
 RNAVREKPI 2500ft
CI06F (4mi, 74°) 2500ft
EBCI (6mi, 74°) 654ft
CI06T (6mi, 74°)
GSY (7mi, 253°) 3000ft
GSY (turn) 3000ft
RW24GSY (62°)GSY 3000ft
OSVAM (10mi, 94°) 3000ft
GUGNO (5mi, 74°) 3000ft
VAMKA (5mi, 324°) 3000ft
 RNAVVAMKA 3000ft
CI24F (5mi, 254°) 3000ft
EBCI (8mi, 254°) 630ft
CI24T (7mi, 254°)
GSY (6mi, 75°) 3000ft
GSY (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARVO4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
BATY4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
BATY5BGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
CIV4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
KOK4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
LNO4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
LNO5BGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
NIK4AGSYNDBleft178 (358)°10000ft - 23000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
