Airports4XP | EDDL | Düsseldorf

Düsseldorf - Duesseldorf

Airport details

Country	Germany
State	North Rhine-Westphalia
Region	ED
Airspace	Langen Ctr
Municipality	Dusseldorf
Elevation	145ft (44m)
Timezone	GMT +1
Coordinates	51.27874, 6.75732
Magnetic var	3.3°
Type	land
Available since	X-Plane v10.40
ICAO code	EDDL
IATA code	DUS
FAA code	n/a

Communication

Duesseldorf Duesseldorf ATIS	123.775
Duesseldorf Duesseldorf ATIS	123.780
Duesseldorf Duesseldorf Delivery	121.780
Duesseldorf Duesseldorf Ground	121.905
Duesseldorf Duesseldorf Ground	121.605
Duesseldorf Duesseldorf Tower	118.305
Duesseldorf Duesseldorf Approach	128.650
Duesseldorf Duesseldorf Departure	121.350

Approach frequencies

ILS-cat-III	RW05R	110.15	18.00mi
ILS-cat-III	RW23R	109.3	18.00mi
ILS-cat-III	RW23L	109.9	18.00mi
ILS-cat-I	RW05L	110.95	18.00mi
3° GS	RW05L	110.95	18.00mi
3° GS	RW23R	109.3	18.00mi
3° GS	RW05R	110.15	18.00mi
3° GS	RW23L	109.9	18.00mi

Nearby Points of Interest:

Haus Hannemann

Haus Kaesbach

Haus Weber, Düsseldorf

Atelierhaus für „junge noch unverheiratete Maler und Bildhauer“

Wohn- und Atelierhaus Schwippert

Suitbertus-Stiftsplatz 3

Degodehaus

Suitbertus-Stiftsplatz 14

Am Tannenwäldchen 7 und 10 in Düsseldorf

Kaiserswerther Markt 11/13

Am Tannenwäldchen 4

Rank-Xerox-Haus

Wohn- und Atelierhaus Wach

Amerikanisches Generalkonsulat in Düsseldorf

Dusseldorf Higher Regional Court

Cecilienallee 1–2

Prinz-Georg-Straße 7

Schorlemerstraße 1, Luegallee 66–74

Prinz-Georg-Straße 100

Phoenix-Haus in Düsseldorf-Altstadt

Herderstraße 59

Ratinger Tor

Hofgärtnerhaus Düsseldorf

Jägerhofstraße 21

Aluminiumhaus

Runway info

Runway 05R / 23L
	length	2992m (9816ft)
	bearing	65° / 245°
	width	45m (148ft)
	surface	concrete
	displ threshold	298m (978ft) / 300m (984ft)
	blast zone	205m (673ft) / 221m (725ft)
Runway 05L / 23R
	length	2700m (8858ft)
	bearing	65° / 245°
	width	45m (148ft)
	surface	concrete
	displ threshold	303m (994ft) / 296m (971ft)
	blast zone	255m (837ft) / 255m (837ft)

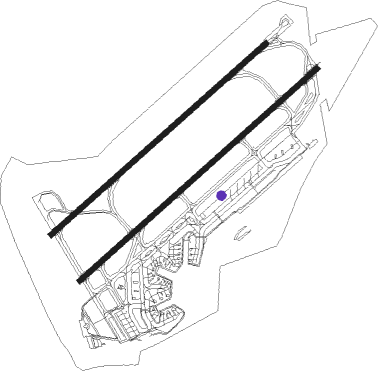

Airport layout - taxiway location V24

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	hotbso
Released	09 Apr 2025
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
DUS	DUESSELDORF VOR/DME	0.2	321°	115.15
DY	DUESSELDORF NDB	4.6	247°	284
LI	DUESSELDORF NDB	6.4	63°	417
MHD	DME	10.3	261°	112.50
MHV	MOENCHENGLADBACH VOR	10.3	261°	109.80
LMA	LIMA NDB	14.6	284°	311
BAM	BARMEN VOR/DME	16	83°	114
BOT	BOTTROP NDB	20.9	41°	406
LJ	COLOGNE-BONN NDB	24	139°	365
WYP	WIPPER VOR	24	114°	109.60
WNN	DME	26.8	191°	109.85
NVO	NOERVENICH VORTAC	27.7	195°	116.20
KBO	COLOGNE-BONN VOR/DME	29	137°	112.15
LAA	NIEDERRHEIN NDB	29.2	299°	352
LW	COLOGNE-BONN NDB	29.5	128°	300
NID	DME	30	298°	115.50
GIX	GEILENKIRCHEN TACAN	32.8	246°	108.10
LV	COLOGNE-BONN NDB	33.8	134°	327
MAS	MAASTRICHT VOR/DME	35.2	249°	108.60
DOR	WICKEDE (DORTMUND) VOR/DME	35.9	74°	108.65
DWI	DORTMUND-WICKEDE NDB	36	74°	357
NW	MAASTRICHT NDB	36.5	254°	373
COL	COLA VOR/DME	43.4	121°	108.80
HMM	HAMM VOR/DME	49.6	59°	115.65
RKN	DME	51.3	0°	116.80
DLN	DEELEN TACAN	57.2	311°	112.20
SLV	SPA NDB	57.7	227°	386
MOD	DME	62.1	47°	114.05

Departure and arrival routes

Transition altitude

5000ft

SID end points		distance	outbound heading
RW05L
	SONE5J	45mi	1°
	MEVE8J	38mi	38°
	NUDG4J	64mi	85°
	KUMI4J	56mi	109°
	DODE6J	65mi	117°
	NVO2Y	28mi	195°
	MODR6J	30mi	249°
	NETE3J	18mi	276°
	LMA6Y	15mi	284°
RW05R
	SONE5Z	45mi	1°
	MEVE9Z	38mi	38°
	NUDG4Z	64mi	85°
	KUMI4Z	56mi	109°
	DODE6Z	65mi	117°
	NVO2Z	28mi	195°
	MODR6Z	30mi	249°
	NETE3Z	18mi	276°
	LMA1Z	15mi	284°
RW23L
	SONE7T	45mi	1°
	MEVE3T	38mi	38°
	NUDG5T	64mi	85°
	KUMI6T	56mi	109°
	DODE9T	65mi	117°
	NVO1T	28mi	195°
	MODR1K, MODR1T	30mi	249°
	NETE5T	18mi	276°
	LMA2T	15mi	284°
RW23R
	SONE3H	45mi	1°
	MEVE3H	38mi	38°
	NUDG3H	64mi	85°
	KUMI3H	56mi	109°
	DODE3H	65mi	117°
	NVO1U	28mi	195°
	MODR1H	30mi	249°
	NETE2H	18mi	276°
	LMA2H	15mi	284°

STAR starting points		distance	inbound heading
RW05 (ALL)
	BIKM1X	10.8	26°
	LMA9X	14.6	104°
	PISA1X	31.2	167°
	HALM1X	30.4	226°
	DOMU2X	30.4	260°
RW05L
	GOGO1A	16.1	35°
	EKDU1A	14.8	101°
RW05R
	GOGO1B	16.1	35°
	EKDU1B	14.8	101°
RW23 (ALL)
	BIKM1G	10.8	26°
	LMA8G	14.6	104°
	PISA1G	31.2	167°
	HALM1G	28.4	223°
	DOMU2G	30.4	260°
RW23L
	TIVI1B	19.3	196°
	RUGA1B	25.6	227°
	OBOM1B	27.1	244°
	NISO1B	25.7	257°
	LONS1B	24.1	263°
RW23R
	TIVI1A	19.3	196°
	RUGA1A	25.6	227°
	OBOM1A	27.1	244°
	NISO1A	25.7	257°
	LONS1A	24.1	263°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW05L	BIK05 (8°)	BIKMU RONAD (12mi, 327°) DL513 (6mi, 319°) IBIKO (8mi, 64°) GAPNU (6mi, 129°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	DOM05 (8°)	DOMUX DOLAV (14mi, 270°) DL502 (19mi, 239°) DL503 (4mi, 244°) DL510 (12mi, 244°) DL510 (turn) DL550 (5mi, 309°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	ELD05 (8°)	ELDAR DL501 (11mi, 62°) DL502 (5mi, 310°) DL503 (4mi, 244°) DL510 (12mi, 244°) DL510 (turn) DL550 (5mi, 309°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	HAL05 (8°)	HALME BOMBA (10mi, 211°) DL524 (29mi, 245°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	LEBTI (9°)	LEBTI 3000ft DL010 (7mi, 246°) 3000ft DL017 (7mi, 309°) 3000ft DIKMI (4mi, 64°) 3000ft
RW05L	LMA05 (8°)	LMA IBIKO (11mi, 71°) GAPNU (6mi, 129°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	PIS05 (8°)	PISAP VALSU (20mi, 160°) GAPNU (5mi, 191°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft DIKMI (8mi, 63°) 3000ft
RW05L	RONAD (93°)	RONAD 4000ft DL016 (7mi, 246°) 4000ft DL017 (5mi, 129°) 3000ft DIKMI (4mi, 64°) 3000ft
	RNAV	DIKMI 3000ft EDDL (9mi, 67°) 166ft DL019 (3mi, 58°) DL020 (4mi, 330°) LMA (14mi, 268°) 4000ft
RW05R	BIK05 (8°)	BIKMU RONAD (12mi, 327°) DL513 (6mi, 319°) IBIKO (8mi, 64°) GAPNU (6mi, 129°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	DOM05 (8°)	DOMUX DOLAV (14mi, 270°) DL502 (19mi, 239°) DL503 (4mi, 244°) DL510 (12mi, 244°) DL510 (turn) DL550 (5mi, 309°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	ELD05 (8°)	ELDAR DL501 (11mi, 62°) DL502 (5mi, 310°) DL503 (4mi, 244°) DL510 (12mi, 244°) DL510 (turn) DL550 (5mi, 309°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	HAL05 (8°)	HALME BOMBA (10mi, 211°) DL524 (29mi, 245°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	LEBTI (9°)	LEBTI 3000ft DL010 (7mi, 246°) DL012 (6mi, 309°) 3000ft NATOS (4mi, 64°) 3000ft
RW05R	LMA05 (8°)	LMA IBIKO (11mi, 71°) GAPNU (6mi, 129°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	PIS05 (8°)	PISAP VALSU (20mi, 160°) GAPNU (5mi, 191°) DL524 (12mi, 244°) DL530 (8mi, 244°) DL530 (turn) DL550 (5mi, 129°) 3000ft NATOS (8mi, 64°) 3000ft
RW05R	RONAD (93°)	RONAD 4000ft DL011 (7mi, 244°) 4000ft DL012 (5mi, 129°) 3000ft NATOS (4mi, 64°) 3000ft
	RNAV	NATOS 3000ft EDDL (9mi, 65°) 171ft DL013 (6mi, 63°) LMA (18mi, 273°) 4000ft
RW23L	BAM (263°)	BAM 3000ft DL001 (7mi, 308°) 3000ft METMA (4mi, 245°) 3000ft
RW23L	BIK23 (8°)	BIKMU DL426 (26mi, 38°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft METMA (18mi, 245°) 3000ft
RW23L	BOT (221°)	BOT 4000ft DL001 (10mi, 169°) 3000ft METMA (4mi, 245°) 3000ft
RW23L	DOM23 (8°)	DOMUX DL405 (18mi, 247°) DL406 (5mi, 310°) DL409 (12mi, 65°) DL410 (6mi, 65°) DL410 (turn) DL450 (5mi, 310°) 3000ft METMA (18mi, 245°) 3000ft
RW23L	HAL23 (8°)	HALME XAMOD (3mi, 257°) DL422 (12mi, 245°) DL426 (6mi, 130°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft METMA (18mi, 245°) 3000ft
RW23L	LMA23 (8°)	LMA DL426 (23mi, 78°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft METMA (18mi, 245°) 3000ft
RW23L	PIS23 (8°)	PISAP AGEDA (14mi, 92°) XAMOD (7mi, 129°) DL422 (12mi, 245°) DL426 (6mi, 130°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft METMA (18mi, 245°) 3000ft
	RNAV	METMA 3000ft EDDL (10mi, 244°) 188ft DL007 (3mi, 247°) LMA (13mi, 291°) BOT (27mi, 71°) 4000ft
RW23R	BAM (263°)	BAM 3000ft DL004 (8mi, 308°) 3000ft REGNO (4mi, 245°) 3000ft
RW23R	BIK23 (8°)	BIKMU DL426 (26mi, 38°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft REGNO (18mi, 246°) 3000ft
RW23R	BOT (221°)	BOT 4000ft DL004 (10mi, 170°) 3000ft REGNO (4mi, 245°) 3000ft
RW23R	DOM23 (8°)	DOMUX DL405 (18mi, 247°) DL406 (5mi, 310°) DL409 (12mi, 65°) DL410 (6mi, 65°) DL410 (turn) DL450 (5mi, 310°) 3000ft REGNO (18mi, 246°) 3000ft
RW23R	HAL23 (8°)	HALME XAMOD (3mi, 257°) DL422 (12mi, 245°) DL426 (6mi, 130°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft REGNO (18mi, 246°) 3000ft
RW23R	LMA23 (8°)	LMA DL426 (23mi, 78°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft REGNO (18mi, 246°) 3000ft
RW23R	PIS23 (8°)	PISAP AGEDA (14mi, 92°) XAMOD (7mi, 129°) DL422 (12mi, 245°) DL426 (6mi, 130°) DL429 (8mi, 65°) DL430 (6mi, 65°) DL430 (turn) DL450 (5mi, 130°) 3000ft REGNO (18mi, 246°) 3000ft
	RNAV	REGNO 3000ft EDDL (10mi, 243°) 174ft DL005 (3mi, 252°) LMA (13mi, 291°) BOT (27mi, 71°) 4000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BIKM1G	BOT	FIX	left	58 (238)°	> 4000ft	1.0min timed	ICAO rules
BIKM1X	RONAD	VHF	right	83 (263)°	> 4000ft	1.0min timed	ICAO rules
DOMU2G	BAM	NDB	left	71 (251)°	3000ft - 24000ft	1.0min timed	ICAO rules
DOMU2X	LEBTI	VHF	right	54 (234)°	> 3000ft	1.0min timed	ICAO rules
HALM1G	BOT	FIX	left	58 (238)°	> 4000ft	1.0min timed	ICAO rules
HALM1X	RONAD	VHF	right	83 (263)°	> 4000ft	1.0min timed	ICAO rules
LMA8G	BOT	FIX	left	58 (238)°	> 4000ft	1.0min timed	ICAO rules
LMA8G	LMA	FIX	right	59 (239)°	4000ft - 14000ft	1.0min timed	ICAO rules
LMA9X	LMA	FIX	right	59 (239)°	4000ft - 14000ft	1.0min timed	ICAO rules
LMA9X	RONAD	VHF	right	83 (263)°	> 4000ft	1.0min timed	ICAO rules
PISA1G	BOT	FIX	left	58 (238)°	> 4000ft	1.0min timed	ICAO rules
PISA1X	RONAD	VHF	right	83 (263)°	> 4000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course

Actual weather data

METAR EDDL 070150Z AUTO 01006KT CAVOK 06/04 Q1021 NOSIG

TAF EDDL 062300Z 0700/0806 01005KT 9999 SCT030 BECMG 0707/0710 04010KT BECMG 0717/0720 04005KT

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
