Airports for X-Plane

Munich - Muenchen Franz-josef-strauss

Airport details

CountryGermany
StateBavaria
RegionED
AirspaceMunich Ctr
MunicipalityOberding
Elevation1481ft (451m)
TimezoneGMT +1
Coordinates48.35378, 11.78609
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDM
IATA codeMUC
FAA coden/a

Communication

Muenchen Franz-Josef-Strauss Muenchen ATIS123.130
Muenchen Franz-Josef-Strauss Muenchen Delivery121.730
Muenchen Franz-Josef-Strauss Muenchen Ground121.980
Muenchen Franz-Josef-Strauss Muenchen Tower South120.505
Muenchen Franz-Josef-Strauss Muenchen Tower North118.705
Muenchen Franz-Josef-Strauss Muenchen Approach123.905
Muenchen Franz-Josef-Strauss Muenchen Depature123.905

Approach frequencies

ILS-cat-IIIRW08L109.518.00mi
ILS-cat-IIIRW26R108.718.00mi
ILS-cat-IIIRW08R109.318.00mi
ILS-cat-IIIRW26L108.318.00mi
3° GSRW08L109.518.00mi
3° GSRW26R108.718.00mi
3° GSRW08R109.318.00mi
3° GSRW26L108.318.00mi
Nearby Points of Interest:
Birkeneck
-
Zum Alten Wirt
-
Abensbergerdenkmal
-
Jägersteig 5
-
Königsstein (Freising)
-
Heiliggeistspital (Freising)
-
Fürstbischöfliches Lyceum
-
Eckherhaus
-
Untere Hauptstraße 7 (Freising)
-
Rathaus
-
Mariensäule
-
Ziererhaus
-
Vimy Kaserne
-
Hofkapelle
-
St. Stephanus
-
Getreidekasten
-
Filialkirche Pauli Bekehrung (Kleinviecht)
-
Hofkapelle Gut Marienhof (Dietersheim, Eching)
-
St. Laurentius (Haindlfing)
-
Kapelle (Palzing)
-
Forschungsreaktor München
-
Wallfahrtskirche St. Ulrich
-
Wohnstallhaus (Grucking)
-
Bildstock (Ismaning)
-
Schloss Ottenburg

Runway info

Runway 08L / 26R
 length3989m (13087ft)
 bearing86° / 266°
 width60m (197ft)
 surfaceconcrete
Runway 08R / 26L
 length3989m (13087ft)
 bearing86° / 266°
 width60m (197ft)
 surfaceconcrete

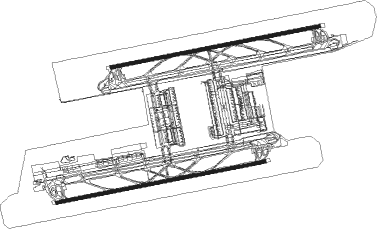

Airport layout


Taxiway locations

 A1  A10  A12  A13  A14  A15  A2  A3
 A4  A5  A6  A9  B1  B10  B11  B12
 B13  B14  B15  B2  B3  B4  B6  B7
 B8  C1  C5  D1  M  N  S
Parking locations

 581  582  583  584  585  586  Apron  Cargo
 Maintenance  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
DMNDME0.831°116
DMSDME0.8211°115
MNEMUNICH NDB4.3271°369
MSWMUNICH NDB4.691°400
MNWMUNICH NDB5.281°338
MSEMUNICH NDB5.4261°358
OTTOTTERSBERG VOR/DME10.4170°112.30
MIQMIKE NDB15319°426
MAHMAISACH VOR/DME19.7259°115.20
IGLINGOLSTADT TACAN23.5329°111.40
IGLINGOLSTADT NDB23.7340°345
OBIOBERPFAFFENHOFEN NDB25.8241°429
WLDWALDA VOR/DME29.4289°112.80
NEUNEUBURG TACAN31.4302°108.90
AUGDME34.1275°115.90
AGBAUGSBURG NDB34.2275°318
LCHLECHFELD TACAN38.3260°108.80
RDGRODING VOR/DME50.647°114.70
HFXHOHENFELS NDB525°286
RTTRATTENBERG NDB55.7171°303

Departure and arrival routes

Transition altitude5000ft
Transition level60ft
SID end pointsdistanceoutbound heading
RW08L
 AKIN1Q27mi40°
 ANKE9Q16mi45°
 BIBA2Q39mi87°
 KIRD2Q42mi98°
 ROTA4Q33mi122°
 VAVO3Q29mi139°
 TURB7Q27mi160°
 TULS2Q39mi180°
 OBAX2T21mi199°
 MERS2T, MERS4Q37mi243°
 ALG2Q65mi257°
 OLAS2Q63mi265°
 RIDA7Q42mi283°
 GIVM6Q27mi310°
 MIQ9Q15mi319°
 INPU3Q21mi322°
 EVIV4Q19mi345°
RW08R
 AKIN1E27mi40°
 ANKE9E16mi45°
 BIBA2E39mi87°
 KIRD2E42mi98°
 ROTA4E33mi122°
 VAVO3E29mi139°
 TURB6E27mi160°
 TULS3E39mi180°
 OBAX2P21mi199°
 MERS2P, MERS4E37mi243°
 ALG2E65mi257°
 OLAS2E63mi265°
 RIDA7E42mi283°
 GIVM6E27mi310°
 MIQ8E15mi319°
 INPU3E21mi322°
 EVIV4E19mi345°
RW26L
 AKIN1S27mi40°
 ANKE7S16mi45°
 BIBA3W, BIBA3S39mi87°
 KIRD3W, KIRD3S42mi98°
 ROTA3W, ROTA3S33mi122°
 VAVO3W, VAVO3S29mi139°
 TURB7S, TURB7W27mi160°
 TULS7S, TULS4W39mi180°
 OBAX6S21mi199°
 MERS5S37mi243°
 ALG2S65mi257°
 OLAS2S63mi265°
 RIDA6S42mi283°
 GIVM6S27mi310°
 MIQ8S15mi319°
 INPU2S21mi322°
 EVIV4S19mi345°
RW26R
 AKIN1N27mi40°
 ANKE9N16mi45°
 BIBA4N39mi87°
 KIRD4N42mi98°
 ROTA4N33mi122°
 VAVO4N29mi139°
 TURB7N27mi160°
 TULS4N39mi180°
 OBAX6N21mi199°
 MERS6N37mi243°
 ALG2N65mi257°
 OLAS2N63mi265°
 RIDA6N42mi283°
 GIVM1N27mi310°
 MIQ9N15mi319°
 INPU2N21mi322°
 EVIV5N19mi345°

STAR starting pointsdistanceinbound heading
RW08 (ALL)
 BETO1A24.457°
 ROKI1A25.3105°
 LULA2C71.9224°
 VESU2C79.8229°
 NIRG2C79.2234°
 LAND2A24.2244°
 BAGS1C101.7277°
 VATE1C101.0289°
 NAPS4A25.6291°
 RAST1C82.3298°
RW26 (ALL)
 BETO1B24.457°
 ROKI1B25.3105°
 LEVB1D65.7116°
 ELMO1D99.1118°
 LAND2B24.2244°
 NAPS1B25.6291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LBET08 (14°)BETOS
DM472 (5mi, 64°)
DM476 (25mi, 86°)
DM457 (7mi, 351°)
DM450 (35mi, 266°)
DM450 (turn)
MAGAT (14mi, 66°) 5000ft
RW08LDM420 (94°)DM420
DM420 (turn)
MAGAT (14mi, 100°) 5000ft
RW08LDM450 (76°)DM450
DM450 (turn)
MAGAT (14mi, 66°) 5000ft
RW08LLAN08 (14°)LANDU
DM428 (7mi, 201°)
DM420 (43mi, 266°)
DM420 (turn)
MAGAT (14mi, 100°) 5000ft
RW08LMIQ (139°)MIQ 5000ft
DM421 (14mi, 240°)
DM431 (5mi, 170°)
MAGAT (6mi, 85°) 5000ft
RW08LNAP08 (14°)NAPSA
DM458 (10mi, 324°)
DM450 (42mi, 266°)
DM450 (turn)
MAGAT (14mi, 66°) 5000ft
RW08LROK08 (14°)ROKIL
DM412 (33mi, 86°)
DM427 (7mi, 170°)
DM420 (35mi, 266°)
DM420 (turn)
MAGAT (14mi, 100°) 5000ft
 RNAVMAGAT 5000ft
EDDM (12mi, 88°) 1517ft
DM551 (2mi, 69°)
(2969mi, 194°) 1900ft
MIQ (2979mi, 13°) 5000ft
RW08RBET08 (14°)BETOS
DM472 (5mi, 64°)
DM476 (25mi, 86°)
DM457 (7mi, 351°)
DM450 (35mi, 266°)
DM450 (turn)
BEGEN (13mi, 69°) 5000ft
RW08RDM420 (94°)DM420
DM420 (turn)
BEGEN (14mi, 104°) 5000ft
RW08RDM450 (76°)DM450
DM450 (turn)
BEGEN (13mi, 69°) 5000ft
RW08RLAN08 (14°)LANDU
DM428 (7mi, 201°)
DM420 (43mi, 266°)
DM420 (turn)
BEGEN (14mi, 104°) 5000ft
RW08RNAP08 (14°)NAPSA
DM458 (10mi, 324°)
DM450 (42mi, 266°)
DM450 (turn)
BEGEN (13mi, 69°) 5000ft
RW08ROTT (350°)OTT 5000ft
DM451 (19mi, 275°)
DM441 (5mi, 350°)
BEGEN (6mi, 85°) 5000ft
RW08RROK08 (14°)ROKIL
DM412 (33mi, 86°)
DM427 (7mi, 170°)
DM420 (35mi, 266°)
DM420 (turn)
BEGEN (14mi, 104°) 5000ft
 RNAVBEGEN 5000ft
EDDM (12mi, 84°) 1536ft
DM561 (turn)
(2968mi, 194°) 1900ft
OTT (2958mi, 14°) 5000ft
RW26LBET26 (14°)BETOS
DM452 (13mi, 50°)
DM459 (34mi, 86°)
DM459 (turn)
NELBI (14mi, 281°) 5000ft
RW26LDM429 (257°)DM429
DM429 (turn)
NELBI (14mi, 247°) 5000ft
RW26LDM459 (275°)DM459
DM459 (turn)
NELBI (14mi, 281°) 5000ft
RW26LLAN26 (14°)LANDU
DM411 (31mi, 266°)
DM422 (7mi, 170°)
DM429 (34mi, 86°)
DM429 (turn)
NELBI (14mi, 247°) 5000ft
RW26LNAP26 (14°)NAPSA
DM463 (31mi, 266°)
DM452 (9mi, 350°)
DM459 (34mi, 86°)
DM459 (turn)
NELBI (14mi, 281°) 5000ft
RW26LOTT (350°)OTT 5000ft
DM458 (18mi, 75°)
DM448 (5mi, 351°)
NELBI (6mi, 266°) 5000ft
RW26LROK26 (14°)ROKIL
DM421 (8mi, 127°)
DM429 (42mi, 86°)
DM429 (turn)
NELBI (14mi, 247°) 5000ft
 RNAVNELBI 5000ft
EDDM (12mi, 268°) 1520ft
DM541 (2mi, 249°)
(2967mi, 194°) 1900ft
OTT (2958mi, 14°) 5000ft
RW26RBET26 (14°)BETOS
DM452 (13mi, 50°)
DM459 (34mi, 86°)
DM459 (turn)
GUDEG (14mi, 285°) 5000ft
RW26RDM429 (257°)DM429
DM429 (turn)
GUDEG (13mi, 250°) 5000ft
RW26RDM459 (275°)DM459
DM459 (turn)
GUDEG (14mi, 285°) 5000ft
RW26RLAN26 (14°)LANDU
DM411 (31mi, 266°)
DM422 (7mi, 170°)
DM429 (34mi, 86°)
DM429 (turn)
GUDEG (13mi, 250°) 5000ft
RW26RMIQ (139°)MIQ 5000ft
DM428 (26mi, 98°)
DM438 (5mi, 171°)
GUDEG (6mi, 266°) 5000ft
RW26RNAP26 (14°)NAPSA
DM463 (31mi, 266°)
DM452 (9mi, 350°)
DM459 (34mi, 86°)
DM459 (turn)
GUDEG (14mi, 285°) 5000ft
RW26RROK26 (14°)ROKIL
DM421 (8mi, 127°)
DM429 (42mi, 86°)
DM429 (turn)
GUDEG (13mi, 250°) 5000ft
 RNAVGUDEG 5000ft
EDDM (12mi, 264°) 1499ft
DM531 (turn)
(2968mi, 194°) 1900ft
MIQ (2979mi, 13°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BETO1ABETOSVHFright247 (67)°> 5000ft1.0min timedICAO rules
BETO1AOTTNDBright260 (80)°> 5000ft1.0min timedICAO rules
BETO1BBETOSVHFright247 (67)°> 5000ft1.0min timedICAO rules
BETO1BOTTNDBright260 (80)°> 5000ft1.0min timedICAO rules
LAND2ALANDUVHFleft33 (213)°> 5000ft1.0min timedICAO rules
LAND2AMIQFIXright260 (80)°> 5000ft1.0min timedICAO rules
LAND2BLANDUVHFleft33 (213)°> 5000ft1.0min timedICAO rules
LAND2BMIQFIXright260 (80)°> 5000ft1.0min timedICAO rules
NAPS1BNAPSAVHFleft93 (273)°> 5000ft1.0min timedICAO rules
NAPS1BOTTNDBright260 (80)°> 5000ft1.0min timedICAO rules
NAPS4ANAPSAVHFleft93 (273)°> 5000ft1.0min timedICAO rules
NAPS4AOTTNDBright260 (80)°> 5000ft1.0min timedICAO rules
ROKI1AMIQFIXright260 (80)°> 5000ft1.0min timedICAO rules
ROKI1AROKILVHFright306 (126)°> 5000ft1.0min timedICAO rules
ROKI1BMIQFIXright260 (80)°> 5000ft1.0min timedICAO rules
ROKI1BROKILVHFright306 (126)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
