Airports4XP | EDDS

Stuttgart

Airport details

Country	Germany
State	Baden-Württemberg
Region	ED
Airspace	Langen Ctr
Municipality	Filderstadt
Elevation	1270ft (387m)
Timezone	GMT +1
Coordinates	48.68324, 9.19706
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	EDDS
IATA code	STR
FAA code	n/a

Communication

Stuttgart Stuttgart ATIS	126.130
Stuttgart Stuttgart Delivery	121.915
Stuttgart Stuttgart Ground	118.605
Stuttgart Stuttgart Tower	118.805
Stuttgart Stuttgart Director	119.850
Stuttgart LANGEN RADAR	119.200
Stuttgart LANGEN RADAR	125.050
Stuttgart Stuttgart Tower 2 /Departure	119.055

Approach frequencies

ILS-cat-III	RW07	109.5	18.00mi
ILS-cat-III	RW25	109.9	18.00mi
3° GS	RW07	109.5	18.00mi
3° GS	RW25	109.9	18.00mi

Runway info

Runway 07 / 25
	length	3337m (10948ft)
	bearing	79° / 259°
	width	45m (148ft)
	surface	concrete
	displ threshold	300m (984ft) / 0m (0ft)
	blast zone	50m (164ft) / 48m (157ft)

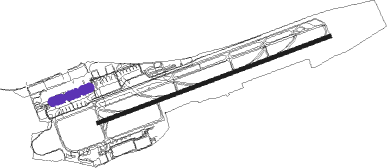

Airport layout - parking location Gate

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
SGD	DME	1.1	80°	115.45
STG	STUTTGART VOR/DME	2.4	77°	116.85
TGO	TANGO TACAN	4.6	136°	112.50
LBU	LUBURG VOR/DME	14.9	32°	109.20
SUL	SULZ VOR	28.4	241°	116.10
KRH	KARLSRUHE VOR/DME	30.5	297°	115.95
SHD	HALL DME	34.6	53°	108.05
LUP	LAUPHEIM NDB	39.8	123°	407
NKR	NECKAR NDB	43.2	325°	292
NDD	DME-ILS	52.1	47°	108.70
NSN	NIEDERSTETTEN NDB	52.3	47°	311
MND	DME	54.3	319°	113.55
TRA	DME	66.9	217°	114.30

Departure and arrival routes

Transition altitude

5000ft

SID end points		distance	outbound heading
RW07
	OKIB4H	32mi	13°
	GEBN6H	41mi	57°
	DKB4H	50mi	66°
	ABTA4H	37mi	79°
	KUNO2H	27mi	129°
	SUL3H	28mi	241°
	ROTW7H	23mi	252°
	KRH2H	31mi	297°
	VESI2H	33mi	320°
	TAGI2H	32mi	334°
	ETAS2H	31mi	352°
RW25
	OKIB4B	32mi	13°
	GEBN7B	41mi	57°
	DKB9B	50mi	66°
	ABTA4B	37mi	79°
	KUNO2B	27mi	129°
	SUL3B	28mi	241°
	ROTW5B	23mi	252°
	KRH5B	31mi	297°
	VESI4B	33mi	320°
	TAGI4B	32mi	334°
	ETAS4B	31mi	352°

STAR starting points		distance	inbound heading
ALL
	BADS2A	24.8	103°
	TEKS5A	34.5	270°
	REUT5A	19.9	332°
RW07
	DENE1E	55.6	76°
	KRH1E	30.5	117°
	NOSB1E	24.3	215°
	BABE1E	18.5	271°
	DITB1E	20.3	290°
RW25
	SUL1W	28.4	61°
	KRH1W	30.5	117°
	TAGI1W	32.2	154°
	GEBN1W	41.0	237°
	TEKS1W	34.5	270°
	LUPO1W	39.8	303°
	REUT1W	19.9	332°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	BAD07 (11°)	BADSO DS417 (18mi, 89°) DS419 (5mi, 179°) DS424 (20mi, 259°) DS414 (5mi, 156°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	IBI07 (11°)	IBIRU DS429 (5mi, 259°) DS434 (21mi, 259°) DS414 (5mi, 336°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	KRH07 (11°)	KRH DS416 (18mi, 95°) DS419 (12mi, 179°) DS424 (20mi, 259°) DS414 (5mi, 156°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	LBU (212°)	LBU 5000ft DS415 (16mi, 245°) 5000ft DS420 (7mi, 244°) 4000ft DS411 (4mi, 156°) 4000ft VATER (4mi, 79°) 4000ft
RW07	LBU07 (11°)	LBU DS418 (12mi, 235°) DS419 (3mi, 259°) DS424 (20mi, 259°) DS414 (5mi, 156°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	NOS07 (11°)	NOSBU DS416 (17mi, 256°) DS419 (12mi, 179°) DS424 (20mi, 259°) DS414 (5mi, 156°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	REU07 (11°)	REUTL DS429 (16mi, 319°) DS434 (21mi, 259°) DS414 (5mi, 336°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
RW07	TEK07 (11°)	TEKSI DS426 (16mi, 267°) DS427 (12mi, 241°) DS428 (23mi, 259°) DS434 (10mi, 285°) DS414 (5mi, 336°) DS413 (4mi, 79°) 6500ft DS412 (4mi, 79°) 5500ft DS411 (4mi, 79°) 5000ft VATER (4mi, 79°) 4000ft
	RNAV	VATER 4000ft EDDS (8mi, 80°) 1317ft DS031 (8mi, 79°) (2966mi, 191°) 5000ft LBU (2977mi, 11°) 5000ft
RW25	ARS25 (11°)	ARSUT DS520 (17mi, 20°) DS522 (16mi, 31°) DS525 (14mi, 80°) DS515 (4mi, 337°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
RW25	BAD25 (11°)	BADSO DS529 (9mi, 151°) DS531 (30mi, 79°) DS535 (19mi, 80°) DS515 (5mi, 158°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
RW25	IBI25 (11°)	IBIRU DS522 (12mi, 78°) DS525 (14mi, 80°) DS515 (4mi, 337°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
RW25	LBU (212°)	LBU 5000ft DS518 (5mi, 118°) 5000ft DS511 (4mi, 118°) 4000ft DS512 (4mi, 157°) 4000ft UNSER (4mi, 260°) 4000ft
RW25	LBU25 (11°)	LBU DS531 (7mi, 148°) DS535 (19mi, 80°) DS515 (5mi, 158°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
RW25	REU25 (11°)	REUTL IBIRU (16mi, 342°) DS522 (12mi, 78°) DS525 (14mi, 80°) DS515 (4mi, 337°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
RW25	TEK25 (11°)	TEKSI DS545 (7mi, 265°) DS542 (11mi, 260°) DS522 (4mi, 337°) DS525 (14mi, 80°) DS515 (4mi, 337°) DS514 (6mi, 260°) 6500ft DS513 (4mi, 260°) 5500ft DS512 (4mi, 259°) 4500ft UNSER (4mi, 260°) 4000ft
	RNAV	UNSER 4000ft EDDS (11mi, 259°) 1231ft DS050 (3mi, 261°) (2961mi, 191°) 5000ft DS054 (2966mi, 10°) LBU (15mi, 65°) 5000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BADS2A	BADSO	VHF	left	354 (174)°	> 7000ft	1.0min timed	ICAO rules
BADS2A	LBU	NDB	left	357 (177)°	> 5000ft	1.0min timed	230
REUT5A	REUTL	VHF	left	163 (343)°	> 6000ft	1.0min timed	ICAO rules
REUT5A	STG	NDB	left	166 (346)°	> 5000ft	1.0min timed	ICAO rules
TEKS5A	STG	NDB	left	166 (346)°	> 5000ft	1.0min timed	ICAO rules
TEKS5A	TEKSI	VHF	right	81 (261)°	> 6000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course
