Airports for X-Plane

Siegerland

Airport details

CountryGermany
StateNorth Rhine-Westphalia
RegionED
AirspaceLangen Ctr
MunicipalityBurbach
Elevation1963ft (598m)
TimezoneGMT +1
Coordinates50.70766, 8.08297
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDGS
IATA codeSGE
FAA coden/a

Communication

Siegerland ATIS128.625
Siegerland Siegerlan-INFO120.380
Siegerland LANGEN RADAR124.900

Approach frequencies

ILS-cat-IRW31108.918.00mi
3° GSRW31108.918.00mi

Runway info

Runway 13 / 31
 length1612m (5289ft)
 bearing116° / 296°
 width30m (98ft)
 surfaceasphalt
Runway 04 / 22
 length503m (1650ft)
 bearing53° / 233°
 width24m (80ft)
 surfacegrass
Runway 13L / 31R
 length690m (2264ft)
 bearing117° / 297°
 width41m (133ft)
 surfacegrass

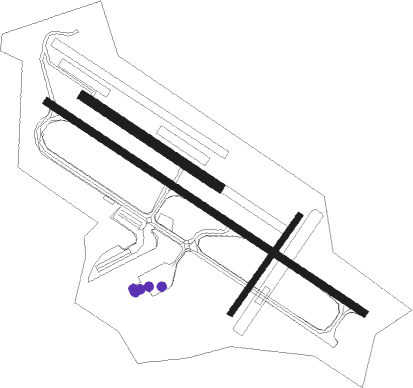

Airport layout - parking location Terminal


Taxiway locations

 T
Parking locations

 GA  New  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
SLDDME0.1259°108.05
SILSIEGERLAND NDB2.6116°489
COLCOLA VOR/DME19.1279°108.80
TAUTAUNUS VOR/DME27.6170°113.35
GMHGERMINGHAUSEN VOR/DME28.7338°115.40
LVCOLOGNE-BONN NDB32.5277°327
LWCOLOGNE-BONN NDB33.5283°300
WYPWIPPER VOR36.6293°109.60
KBOCOLOGNE-BONN VOR/DME36.7279°112.15
MTRMETRO VOR39119°110
WIBWIESBADEN TACAN40.6161°114.10
FWFRANKFURT NDB44.2154°382
FFMFRANKFURT VORTAC44.6140°114.20
FRDDME44.7144°115.90
FRFRANKFURT NDB44.8137°297
VFMNAUHEIM VOR47.2153°113.75
BAMBARMEN VOR/DME50.5304°114
DORWICKEDE (DORTMUND) VOR/DME51.9331°108.65
DWIDORTMUND-WICKEDE NDB51.9331°357
HANHAHN NDB54.1227°376
FHHDME55.7227°117.35
PADDME-ILS57.831°108.50
RIDRIED VOR/DME58.3154°112.20
PADPADERBORN-LIPPSTADT NDB58.831°354
CHACHARLIE VOR/DME59.8129°115.35

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW13
 ARPE2S20mi36°
 TOBA2R28mi101°
 NVO1S, NVO1G55mi275°
RW31
 ARPE2N20mi36°
 TOBA2K28mi101°
 NVO1H, NVO1L55mi275°

STAR starting pointsdistanceinbound heading
ALL
 ERUK1A51.086°
 SIGE5A11.1235°
 TABU3A27.8322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13COL (99°)COL 6000ft
GS130 (9mi, 72°) 5000ft
RW13SIL (296°)SIL 6000ft
GS131 (17mi, 310°) 6000ft
GS130 (4mi, 231°) 5000ft
 RNAVGS130 5000ft
BETUX (4mi, 116°) 5000ft
EDGS (10mi, 116°) 2011ft
GS139 (4mi, 116°)
(3071mi, 189°) 3000ft
SIL (3072mi, 9°) 6000ft
RW31SIL (296°)SIL 6000ft
GS313 (15mi, 103°)
GS312 (3mi, 128°)
GS311 (2mi, 207°)
EBOGI (4mi, 271°) 6000ft
RW31TABUM (322°)TABUM 6000ft
EBOGI (14mi, 11°) 6000ft
 RNAVEBOGI 6000ft
BEDSI (5mi, 297°) 6000ft
EDGS (13mi, 297°) 1978ft
GS319 (3mi, 297°)
(3075mi, 189°) 3000ft
SIL (3072mi, 9°) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ERUK1ASILFIXright288 (108)°> 6000ft1.0min timedICAO rules
SIGE5ASILFIXright288 (108)°> 6000ft1.0min timedICAO rules
TABU3ASILFIXright288 (108)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
