Airports for X-Plane

Memmingen - Memmingen/ Allgaeu

Airport details

CountryGermany
StateBavaria
RegionED
AirspaceMunich Ctr
MunicipalityMemmingerberg
Elevation2062ft (628m)
TimezoneGMT +1
Coordinates47.98882, 10.23948
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDJA
IATA codeFMM
FAA coden/a

Communication

Memmingen/ Allgaeu Memmingen ATIS118.855
Memmingen/ Allgaeu Memmingen Ground121.680
Memmingen/ Allgaeu Memmingen Tower126.855
Memmingen/ Allgaeu Memmingen Departure129.450

Approach frequencies

ILS-cat-IRW06111.118.00mi
ILS-cat-IRW24110.118.00mi
3° GSRW06111.118.00mi
3° GSRW24110.118.00mi

Runway info

Runway 06 / 24
 length2957m (9701ft)
 bearing68° / 248°
 width45m (148ft)
 surfaceasphalt
 displ threshold270m (886ft) / 289m (948ft)
 blast zone32m (105ft) / 0m (0ft)

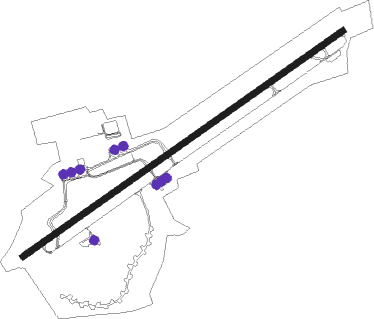

Airport layout - parking location Apron


Taxiway locations

 N  P  W
Parking locations

 Apron

Nearby beacons

codeidentifierdistbearingfrequency
ALD(MEMMINGEN/ALLGAU) DME0.3269°117.20
ALGALLGAEU (MEMMINGEN) NDB169°341
KPTKEMPTEN VOR/DME15.2156°108.40
LUPLAUPHEIM NDB19305°407
LCHLECHFELD TACAN27.672°108.80
FHDDME35.3246°112.60
AGBAUGSBURG NDB38.158°318
AUGDME38.358°115.90
WLDWALDA VOR/DME50.256°112.80
TGOTANGO TACAN54.4303°112.50
STGSTUTTGART VOR/DME57.8306°116.85
NEUNEUBURG TACAN58.253°108.90
LBULUBURG VOR/DME66316°109.20

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW06
 KPT4B15mi156°
 UMTE2B26mi256°
 LUPO5B19mi305°
RW24
 KPT4A15mi156°
 UMTE1A26mi256°
 LUPO5A19mi305°

STAR starting pointsdistanceinbound heading
RW06
 ALOX1C17.151°
 LUPO1C19.0125°
 KPT1C15.2336°
RW24
 ALOX1D17.151°
 LUPO1D19.0125°
 KPT1D15.2336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06ALG (249°)ALG 6000ft
JA555 (10mi, 210°) 6000ft
JA450 (4mi, 248°) 5000ft
JA430 (6mi, 319°) 4000ft
FIMPE (4mi, 68°) 4000ft
RW06JA430 (68°)JA430 4000ft
FIMPE (4mi, 68°) 4000ft
 RNAVFIMPE 4000ft
EDJA (7mi, 68°) 2129ft
JA062 (5mi, 68°)
(2935mi, 192°) 3100ft
ALG (2932mi, 12°) 6000ft
RW24ALG (249°)ALG 6000ft
JA456 (8mi, 101°) 6000ft
JA458 (4mi, 68°) 5000ft
JA438 (6mi, 319°) 4000ft
TUXNE (4mi, 248°) 4000ft
RW24JA438 (248°)JA438 4000ft
TUXNE (4mi, 248°) 4000ft
 RNAVTUXNE 4000ft
EDJA (7mi, 248°) 2110ft
JA248 (5mi, 248°)
(2927mi, 192°) 3100ft
ALG (2932mi, 12°) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KPT1CKPTNDBright70 (250)°15000ft - 31000ft1.5min timedICAO rules
KPT1DKPTNDBright70 (250)°15000ft - 31000ft1.5min timedICAO rules
LUPO1CLUPOLVHFleft311 (131)°> 7000ft1.0min timed230
LUPO1DLUPOLVHFleft311 (131)°> 7000ft1.0min timed230
*) magnetic outbound (inbound) holding course
