Airports for X-Plane

Birmingham

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityMetropolitan Borough of Solihull
Elevation327ft (100m)
TimezoneGMT +0
Coordinates52.45386, -1.74803
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGBB
IATA codeBHX
FAA coden/a

Communication

Birmingham Birmingham Information136.030
Birmingham Birmingham Delivery121.930
Birmingham Birmingham Ground121.805
Birmingham Birmginham Tower118.305
Birmingham Birmingham Approach131.005

Approach frequencies

ILS-cat-IIIRW15110.118.00mi
ILS-cat-IIIRW33110.118.00mi
3° GSRW15110.118.00mi
3° GSRW33110.118.00mi
Nearby Points of Interest:
Packington Hall
-
Packington Old Hall
-
Hay Hall
-
Castle Bromwich Hall
-
Blyth Hall
-
Church of St Oswald
-
Emmanuel Church
-
Berkswell Hall
-
Pype Hayes Hall
-
Stratford House
-
Friends' Institute buildings
-
Moseley School of Art, Balsall Heath
-
Curzon Street railway station
-
Moseley Hall, Birmingham
-
Christopher Wray Lighting works
-
Fox And Grapes
-
Methodist Central Hall, Birmingham
-
Victoria Law Courts
-
Birmingham Children's Hospital
-
Great Western Arcade
-
Singers Hill Synagogue
-
103 Colmore Row
-
17 & 19 Newhall Street, Birmingham
-
Council House, Birmingham
-
Queen's College

Runway info

Runway 15 / 33
 length3056m (10026ft)
 bearing132° / 312°
 width46m (151ft)
 surfaceasphalt
 displ threshold287m (942ft) / 453m (1486ft)

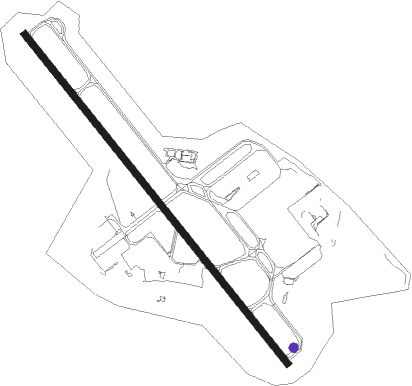

Airport layout - taxiway location S1


Taxiway locations

 A1  A2  AL1  B  C1  E1  F1  G
 L1  S1  S2  T1
Parking locations

 Apron  Elmdon

Nearby beacons

codeidentifierdistbearingfrequency
BHXBIRMINGHAM NDB0.1279°406
HONHONILEY VOR/DME6.6139°113.65
WBAWOLVERHAMPTON NDB19.1277°356
WOLDME19.1277°108.60
TNLTATENHILL NDB21.6357°327
EMWEAST MIDLANDS NDB24.938°393
LELEICESTER NDB27.678°383
DTYDAVENTRY VOR/DME28.5113°116.40
EMEEAST MIDLANDS NDB30.456°353
TNTTRENT VOR/DME36.17°115.70
GSTGLOUCESTERSHIRE NDB37.1217°331
SWBSHAWBURY VOR/DME39.2291°116.80
OXOXFORD NDB40.4146°367
BZBRIZE NORTON NDB42.6168°386
BZNBRIZE NORTON TACAN42.7168°111.90
WCOWESTCOTT NDB46.2127°335
FFAFAIRFORD TACAN46.4184°113.40
WHIWHITEGATE NDB54.1310°368
HENHENTON NDB54.6126°433
BSOBENSON TACAN55.8142°110
MCTMANCHESTER VOR/DME57.3330°113.55
GAMGAMSTON VOR/DME57.544°112.80
CPTCOMPTON VOR/DME61151°114.35
LPLLIVERPOOL NDB63.8312°349
OFFILTON NDB64.1222°325

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW15
 LUVU1L16mi0°
 TNT4G, TNT1K36mi7°
 DTY2Y29mi113°
 WCO2Y46mi127°
 COWL2Y56mi141°
 CPT2Y61mi151°
 LUXT1522mi225°
 MOSU1542mi231°
RW33
 LUVU1M16mi0°
 UNGA1M14mi105°
 ADME1M12mi108°
 DTY4F29mi113°
 UMLU1M10mi253°

STAR starting pointsdistanceinbound heading
ALL
 FIGZ1B43.260°
 DOLO1B82.1112°
 MAKU2B144.8116°
 AMPI1B68.7117°
 MALU1B88.6117°
 WAL1B75.4124°
 CHAS4B76.0146°
 CHAS3G78.5165°
 CHAS3F103.1168°
 CHAS3H64.6172°
 HEME1B62.5296°
 SILV1B45.5309°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMPI1BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
CHAS3FCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
CHAS3GCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
CHAS3HCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
CHAS4BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
DOLO1BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
FIGZ1BGROVEVHFright283 (103)°7000ft - 14000ft1.0min timed210
HEME1BGROVEVHFright283 (103)°7000ft - 14000ft1.0min timed210
MAKU2BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
MALU1BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
SILV1BGROVEVHFright283 (103)°7000ft - 14000ft1.0min timed210
WAL1BCHASEVHFright329 (149)°5000ft - 14000ft1.0min timed210
*) magnetic outbound (inbound) holding course
