Airports for X-Plane

Liverpool

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityLiverpool
Elevation80ft (24m)
TimezoneGMT +0
Coordinates53.33361, -2.84972
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGGP
IATA codeLPL
FAA coden/a

Communication

Liverpool Liverpool Information124.330
Liverpool Liverpool Ground121.955
Liverpool Liverpool Tower126.355
Liverpool Liverpool Approach119.855

Approach frequencies

ILS-cat-IIIRW27111.7518.00mi
ILS-cat-IRW09111.7518.00mi
3° GSRW27111.7518.00mi
3° GSRW09111.7518.00mi

Runway info

Runway 09 / 27
 length2281m (7484ft)
 bearing87° / 267°
 width46m (151ft)
 surfaceasphalt
 displ threshold61m (200ft) / 0m (0ft)

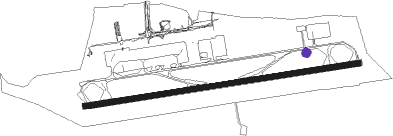

Airport layout - taxiway location A


Taxiway locations

 A  A1  A2  C  D  E  F  G
 T  T1
Parking locations

 1  10  11  12  14  14A  2  3
 32C  33  37  4  5  51  52  53
 54  55  56  6  7  8  9  Flying
 Fyling  GA  Skyport  Stand

Nearby beacons

codeidentifierdistbearingfrequency
LPLLIVERPOOL NDB4.487°349
HAWHAWARDEN NDB10.3220°340
WALWALLASEY VOR/DME10.7282°114.10
WHIWHITEGATE NDB12123°368
MCTMANCHESTER VOR/DME21.188°113.55
WTNWARTON TACAN24.5355°113.20
WTNWARTON NDB25.1360°337
BPLBLACKPOOL NDB27.1338°318
SWBSHAWBURY VOR/DME32.8161°116.80
POLPOLE HILL VOR/DME36.261°112.10
WPLWELSHPOOL NDB43.6203°323
WLBARROW (WALNEY ISLAND) NDB49.8332°385
WBAWOLVERHAMPTON NDB53.5144°356
WOLDME53.5144°108.60

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09
 POL5V36mi61°
 BART1V17mi72°
 NANT2V16mi125°
 REXA2V20mi229°
 WAL2V11mi282°
RW27
 POL4T36mi61°
 BART1T17mi72°
 NANT2T16mi125°
 REXA2T20mi229°
 WAL2T11mi282°

STAR starting pointsdistanceinbound heading
ALL
 KEGU1D, TIPO1J28.936°
 TIPO4A27.696°
 TIPO2B33.6109°
 TIPO1C20.8227°
 TIPO1D36.2241°
 TIPO1E36.1259°
 KEGU2B, TIPO2G45.6283°
 KEGU2A, TIPO2F73.4288°
 TIPO2H, KEGU2C53.9297°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KEGU1DKEGUNVHFleft184 (4)°1.0min timedICAO rules
KEGU2AKEGUNVHFleft184 (4)°1.0min timedICAO rules
KEGU2BKEGUNVHFleft184 (4)°1.0min timedICAO rules
KEGU2CKEGUNVHFleft184 (4)°1.0min timedICAO rules
TIPO1CTIPODVHFright297 (117)°1.0min timed210
TIPO1DTIPODVHFright297 (117)°1.0min timed210
TIPO1ETIPODVHFright297 (117)°1.0min timed210
TIPO1JTIPODVHFright297 (117)°1.0min timed210
TIPO2BTIPODVHFright297 (117)°1.0min timed210
TIPO2FTIPODVHFright297 (117)°1.0min timed210
TIPO2GTIPODVHFright297 (117)°1.0min timed210
TIPO2HTIPODVHFright297 (117)°1.0min timed210
TIPO4ATIPODVHFright297 (117)°1.0min timed210
*) magnetic outbound (inbound) holding course
