Airports for X-Plane

Saint Helier - Jersey

Airport details

CountryJersey
State[Other]
RegionEG
AirspaceBrest Ctr
MunicipalitySt. Peter
Elevation273ft (83m)
TimezoneGMT +0
Coordinates49.20795, -2.19552
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGJJ
IATA codeJER
FAA coden/a

Communication

Jersey Jersey Information134.680
Jersey Jersey Ground121.905
Jersey Jersey Tower119.455
Jersey Jersey Approach120.305

Approach frequencies

ILS-cat-IRW26110.318.00mi
ILS-cat-IRW08110.918.00mi
3° GSRW26110.318.00mi
3° GSRW08110.918.00mi

Runway info

Runway 08 / 26
 length1705m (5594ft)
 bearing85° / 265°
 width46m (151ft)
 surfaceasphalt
 displ threshold61m (200ft) / 92m (302ft)

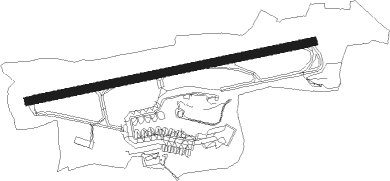

Airport layout


Taxiway locations

 A1  A2  A3  A4  A5  B2  B3  D
 E  F  G  H  J1  J2  J3  M
Parking locations

 Aeroclub  Cargo  North  South  Stand

Nearby beacons

codeidentifierdistbearingfrequency
JWJERSEY NDB0.9265°329
JSYJERSEY VOR/DME5.985°112.20
GURGUERNSEY VOR/DME21299°109.40
ALDALDERNEY NDB30360°383
DINDINARD PLEURTUIT SAINT MA VOR/DME37.6170°114.30
MPCHERBOURG NDB41.262°373
SBSAINT BRIEUC NDB44.9223°353

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW08
 ORTA2B48mi14°
 ORIS1D49mi24°
 BENI3B34mi64°
 LUSI1B16mi89°
 ORVA1B18mi115°
 DIN2B38mi170°
 LERA2B14mi228°
 TUNI2B87mi280°
 OYST2B, SKER2B61mi309°
RW26
 ORTA3A48mi14°
 ORIS1C49mi24°
 BENI5A34mi64°
 LUSI1A16mi89°
 ORVA1A18mi115°
 DIN3A38mi170°
 LERA2A14mi228°
 TUNI3A87mi280°
 SKER3A61mi309°

STAR starting pointsdistanceinbound heading
RW08
 LERA1K14.148°
 TUNI1K33.1102°
 SKER1K60.9129°
 BIGN1K53.5142°
 LELN1K46.6187°
 ORTA1K48.0194°
 BEVA1K21.5286°
RW26
 LERA1J14.148°
 TUNI1J33.1102°
 SKER1L, SKER1J60.9129°
 BIGN1J, BIGN1L53.5142°
 LELN1J46.6187°
 ORTA1J48.0194°
 BEVA1J21.5286°
 MINQ1J11.8322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08BAGIN (67°)BAGIN 2000ft
GIPTA (5mi, 349°) 2000ft
RW08LAPLI (102°)LAPLI 2000ft
GIPTA (5mi, 169°) 2000ft
 RNAVGIPTA 2000ft
JJ08F (5mi, 85°) 2000ft
EGJJ (6mi, 85°) 323ft
JJM01 (4mi, 85°)
JJM02 (5mi, 169°)
GAMDU (3mi, 265°) 3000ft
RW26TIDMA (248°)TIDMA 2000ft
NENRI (5mi, 169°) 2000ft
RW26TIXON (282°)TIXON 2000ft
NENRI (5mi, 349°) 2000ft
 RNAVNENRI 2000ft
JJ26F (5mi, 265°) 2000ft
EGJJ (6mi, 265°) 324ft
JJM03 (3mi, 265°)
JJM04 (5mi, 169°)
TIXON (14mi, 85°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEVA1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
BEVA1KJWFIXright263 (83)°> 2000ft1.0min timed185
BEVA1KSHARKVHFright265 (85)°DME 4.8miICAO rules
BIGN1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
BIGN1KGURNDBleft268 (88)°> 2000ft1.0min timedICAO rules
BIGN1KJWFIXright263 (83)°> 2000ft1.0min timed185
BIGN1KSHARKVHFright265 (85)°DME 4.8miICAO rules
BIGN1LJSYNDBleft85 (265)°> 2000ft1.0min timed185
LELN1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
LELN1KD045WVHFleft259 (79)°1.0min timedICAO rules
LELN1KJWFIXright263 (83)°> 2000ft1.0min timed185
LELN1KSHARKVHFright265 (85)°DME 4.8miICAO rules
LERA1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
LERA1KJWFIXright263 (83)°> 2000ft1.0min timed185
LERA1KSHARKVHFright265 (85)°DME 4.8miICAO rules
MINQ1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
ORTA1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
ORTA1KD045WVHFleft259 (79)°1.0min timedICAO rules
ORTA1KJWFIXright263 (83)°> 2000ft1.0min timed185
ORTA1KSHARKVHFright265 (85)°DME 4.8miICAO rules
SKER1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
SKER1KGURNDBleft268 (88)°> 2000ft1.0min timedICAO rules
SKER1KJWFIXright263 (83)°> 2000ft1.0min timed185
SKER1KSHARKVHFright265 (85)°DME 4.8miICAO rules
SKER1LJSYNDBleft85 (265)°> 2000ft1.0min timed185
TUNI1JJSYNDBleft85 (265)°> 2000ft1.0min timed185
TUNI1KJWFIXright263 (83)°> 2000ft1.0min timed185
TUNI1KSHARKVHFright265 (85)°DME 4.8miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
