Airports for X-Plane

London - London Gatwick

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityCrawley
Elevation203ft (62m)
TimezoneGMT +0
Coordinates51.14806, -0.19028
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGKK
IATA codeLGW
FAA coden/a

Communication

London Gatwick Gatwick ATIS136.525
London Gatwick Gatwick Clearance Delivery121.955
London Gatwick Gatwick Ground121.805
London Gatwick Gatwick Tower124.230
London Gatwick Gatwick Approach118.950
London Gatwick Gatwick Approach126.825
London Gatwick Gatwick Approach129.025

Approach frequencies

ILS-cat-IIIRW08R110.918.00mi
ILS-cat-IIIRW26L110.918.00mi
3° GSRW08R110.918.00mi
3° GSRW26L110.918.00mi
Nearby Points of Interest:
Charlwood House
-
Beehive
-
Tree House
-
Ancient Priors
-
Friary Church of St Francis and St Anthony, Crawley
-
Broadfield House, Crawley
-
Town Hall
-
Wray Common Mill, Reigate
-
Broome Hall
-
Saint Hill Manor
-
Tyes Place
-
Stone Farm Rocks
-
Balcombe Place
-
Chesworth House
-
Milton Court
-
Greathed Manor
-
Leonardslee
-
New Mill
-
Goddards
-
Juniper Hall
-
Abinger Common War Memorial
-
Cherkley Court
-
Barrow Green Court
-
Birch Grove

Runway info

Runway 08R / 26L
 length3311m (10863ft)
 bearing82° / 262°
 width46m (150ft)
 surfaceasphalt
 displ threshold393m (1289ft) / 424m (1391ft)
 blast zone0m (0ft) / 31m (102ft)
Runway 08L / 26R
 length2559m (8396ft)
 bearing82° / 262°
 width45m (148ft)
 surfaceasphalt
 displ threshold321m (1053ft) / 417m (1368ft)

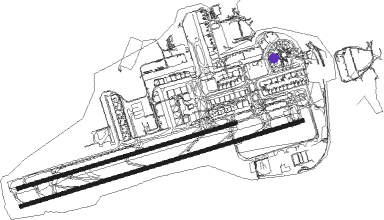

Airport layout - parking location 34R


Taxiway locations

 101  A  A1  A3  AN  C3  CR  FR
 G1  G2  GR  H1  H2  H3  J  J2
 J3  J4  J5  M  M1  M3  N1  Q1
 R1  S1  T1  U1  V  W  W1  Y1
 Y2  Y3  Z  Z1
Parking locations

 10  101  102  103  104  105  106  107
 11  112  113  12  13  130  131  132
 133  134  135  13L  13R  14  140  140L
 140R  141  142  142R  143  143L  143R  144
 144L  144R  145  15  150  150L  150R  151
 152  152L  152R  153  154  157  158  159
 16  160  160L  160R  161  17  170  171
 171L  171R  172  172L  172R  173  174  175
 175L  175R  176  176L  176R  177  178  18
 180  19  20  21  22  23  230  230L
 230R  231  231L  231R  232  232L  232R  233
 233L  233R  234  234L  234R  235  235L  235R
 24  25  27  28  31  31L  31R  32
 32L  32R  33  33L  33R  34  34L  34R
 35  35L  35R  36  36L  36R  37  37L
 37R  38  38L  38R  41  41E  41W  42
 43  43E  43W  46  47  47L  48  48L
 48R  49  49L  49R  50  51  51L  51R
 52  52L  52R  53  54  54L  54R  551
 552  553  554  555  557  558  559  560
 561  562  563  564  565  566  567  568
 569  570  572  573  574  64  64L  64R
 65  66  66L  66R  67  68  Gate  Maintenance

Nearby beacons

codeidentifierdistbearingfrequency
EPMEPSOM NDB12.3313°316
OCKOCKHAM VOR/DME13.5301°115.30
BIGBIGGIN VOR/DME13.851°115.10
MAYMAYFIELD VOR/DME13.9113°117.90
MIDMIDHURST VOR/DME17.3258°114
SHMSHOREHAM NDB19.1199°332
SRHDME-ILS19.1198°109.95
LONLONDON VOR/DME22.8321°113.60
LCYLONDON CITY NDB23.436°322
SFDSEAFORD VOR/DME26141°117
BLCDME26.7285°116.20
BLKBLACKBUSHE NDB26.7285°328
GWCGOODWOOD VOR/DME27.7243°114.75
BURBURNHAM NDB28.8307°421
ODHODIHAM TACAN28.9276°109.60
CHTCHILTERN NDB31325°277
DETDETLING VOR/DME3179°117.30
HLSDME31.690°115.95
LSHHEADCORN (LASHENDEN) NDB31.690°340
WODWOODLEY NDB31.6294°352
LAMLAMBOURNE VOR/DME32.534°115.60
BPKBROOKMANS PARK VOR/DME36.28°117.50
BNNBOVINGDON VOR/DME37.2328°113.75
LYDLYDD VOR/DME41.398°114.05
SNDSOUTHEND NDB42.164°362
HENHENTON NDB43316°433
BSOBENSON TACAN44.1297°110
LZDLYDD NDB44.1100°397
LUTLUTON NDB44.8355°345
WCOWESTCOTT NDB51.2312°335
BKYBARKWAY VOR/DME51.417°116.25
CITCRANFIELD NDB60.5340°850
CLNCLACTON VOR/DME65.362°114.55
WTZWATTISHAM TACAN7249°109.30

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW08L
 LAM5W33mi34°
 FRAN1W34mi74°
 DVR2W58mi89°
 SFD9W26mi141°
 SAM3W45mi261°
 KENE3W52mi286°
RW08R
 LAM5P, LAM1Z33mi34°
 FRAN1Z, FRAN1P34mi74°
 ODVI2Z25mi88°
 DVR2P58mi89°
 SFD9P, SFD4Z26mi141°
 SAM3P45mi261°
 IMVU1Z13mi274°
 KENE3P52mi286°
RW26L
 LAM6M, TIGE3M, TIGE1X33mi34°
 DAGA1X, DAGA1M65mi62°
 FRAN1M34mi74°
 MIMF1M26mi83°
 WIZA1X, WIZA4M43mi92°
 HARD5M, HARD1X48mi135°
 SFD5M, SFD1X26mi141°
 BOGN1X, BOGN1M27mi188°
 NOVM1X, NOVM1M22mi259°
RW26R
 TIGE3V, LAM6V33mi34°
 DAGA1V65mi62°
 FRAN1V34mi74°
 MIMF1V26mi83°
 WIZA4V43mi92°
 HARD5V48mi135°
 SFD5V26mi141°
 BOGN1V27mi188°
 NOVM1V22mi259°

STAR starting pointsdistanceinbound heading
ALL
 NEVI1G69.29°
 TELT1G29.459°
 VASU1G55.959°
 GWC1G27.763°
 ABSA1G48.163°
 MID1X17.378°
 OTME1G92.379°
 BEDE1G53.199°
 KIDL1G57.6118°
 DISI1G80.6122°
 BARM1G129.9244°
 TEBR2G70.6259°
 KONA2G82.5270°
 ARNU1G42.6275°
 AMDU1G46.9296°
 KUNA1G60.9297°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABSA1GGWCNDBleft355 (175)°7000ft - 13000ft1.0min timed220
ABSA1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
AMDU1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
ARNU1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
BARM1GARNUNVHFright36 (216)°10000ft - 14000ft1.0min timed220
BARM1GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
BEDE1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
DISI1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
GWC1GGWCNDBleft355 (175)°7000ft - 13000ft1.0min timed220
GWC1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
KIDL1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
KONA2GARNUNVHFright36 (216)°10000ft - 14000ft1.0min timed220
KONA2GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
KUNA1GAMDUTVHFright132 (312)°16000ft - 19000ft1.0min timedICAO rules
KUNA1GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
MID1XTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
NEVI1GAMDUTVHFright132 (312)°16000ft - 19000ft1.0min timedICAO rules
NEVI1GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
OTME1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
TEBR2GARNUNVHFright36 (216)°10000ft - 14000ft1.0min timed220
TEBR2GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
TELT1GTIMBAVHFright128 (308)°7000ft - 14000ft1.0min timed220
VASU1GWILLOVHFleft103 (283)°7000ft - 14000ftDME 5.1mi220
*) magnetic outbound (inbound) holding course
