Airports for X-Plane

Yateley - Blackbushe

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityHart
Elevation325ft (99m)
TimezoneGMT +0
Coordinates51.32472, -0.84055
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGLK
IATA codeBBS
FAA coden/a

Communication

Blackbushe Blackbushe Radio122.300

Runway info

Runway 07 / 25
 length1284m (4213ft)
 bearing78° / 258°
 width46m (151ft)
 surfaceasphalt
 displ threshold148m (486ft) / 137m (449ft)

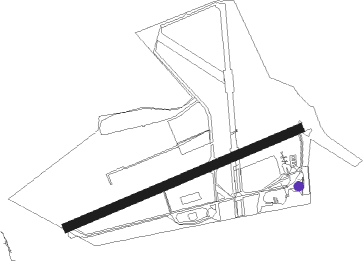

Airport layout - parking location 3


Taxiway locations

 A  C  D  E
Parking locations

 1  2  3  4  Apron  Grass  Hangar  Helo
 RWY

Nearby beacons

codeidentifierdistbearingfrequency
BLCDME0.1253°116.20
BLKBLACKBUSHE NDB0.1251°328
ODHODIHAM TACAN6.8230°109.60
WODWOODLEY NDB7.8343°352
BURBURNHAM NDB13.140°421
OCKOCKHAM VOR/DME14.893°115.30
LONLONDON VOR/DME1767°113.60
CPTCOMPTON VOR/DME17.3294°114.35
EPMEPSOM NDB17.591°316
MIDMIDHURST VOR/DME18.1141°114
BSOBENSON TACAN19.9318°110
CHTCHILTERN NDB21.547°277
HENHENTON NDB26.17°433
BNNBOVINGDON VOR/DME26.436°113.75
GWCGOODWOOD VOR/DME28.3170°114.75
SAMSOUTHAMPTON VOR/DME29.2234°113.35
EASSOUTHAMPTON (EASTLEIGH) NDB29.5234°391
WCOWESTCOTT NDB32347°335
BIGBIGGIN VOR/DME32.890°115.10
OXOXFORD NDB35.4316°367
LCYLONDON CITY NDB35.679°322
BDNBOSCOMBE DOWN TACAN35.8259°108.20
SHMSHOREHAM NDB35.8132°332
SRHDME-ILS35.8132°109.95
BPKBROOKMANS PARK VOR/DME37.460°117.50
BZBRIZE NORTON NDB38.1299°386
BZNBRIZE NORTON TACAN38.1299°111.90
MAYMAYFIELD VOR/DME40.4108°117.90
LUTLUTON NDB40.646°345
FFAFAIRFORD TACAN41.7290°113.40
LAMLAMBOURNE VOR/DME41.872°115.60
CITCRANFIELD NDB49.519°850
SFDSEAFORD VOR/DME49.6120°117
BKYBARKWAY VOR/DME52.254°116.25
DTYDAVENTRY VOR/DME52.3342°116.40
DETDETLING VOR/DME53.991°117.30
HLSDME56.997°115.95
LSHHEADCORN (LASHENDEN) NDB56.997°340
SNDSOUTHEND NDB59.681°362
CAMCAMBRIDGE NDB65.449°332
LYDLYDD VOR/DME67.6101°114.05
LZDLYDD NDB70.5102°397

Departure and arrival routes

Transition altitude6000ft
STAR starting pointsdistanceinbound heading
ALL
 ABSA1P42.926°
 KATH1V51.731°
 SOKD1V59.961°
 CPT1P, CPT1V17.3114°
 ELDA1V75.7299°
 NOTG1P47.1330°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABSA1PPEPISVHFright184 (4)°7000ft - 10000ft1.0min timed210
ABSA1PRUDMOVHFleft96 (276)°8000ft - 11000ft1.0min timed210
CPT1PPEPISVHFright184 (4)°7000ft - 10000ft1.0min timed210
CPT1VVEXUBVHFleft237 (57)°3000ft - 3000ft1.0min timed185
ELDA1VVEXUBVHFleft237 (57)°3000ft - 3000ft1.0min timed185
KATH1VRUDMOVHFleft96 (276)°8000ft - 11000ft1.0min timed210
KATH1VVEXUBVHFleft237 (57)°3000ft - 3000ft1.0min timed185
NOTG1PPEPISVHFright184 (4)°7000ft - 10000ft1.0min timed210
NOTG1PRUDMOVHFleft96 (276)°8000ft - 11000ft1.0min timed210
SOKD1VRUDMOVHFleft96 (276)°8000ft - 11000ft1.0min timed210
SOKD1VVEXUBVHFleft237 (57)°3000ft - 3000ft1.0min timed185
*) magnetic outbound (inbound) holding course
