Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

airport apron international airport concrete tarmac road airbus landing railway station airdock passengers runway lighting luggage arrival jet city airfield traffic pattern airport check-in non-towered airport corporation gravel

Airports for X-Plane

London - London Heathrow

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityLondon
Elevation83ft (25m)
TimezoneGMT +0
Coordinates51.46229, -0.45141
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeEGLL
IATA codeLHR
FAA coden/a

Communication

London Heathrow Heathrow ATIS128.080
London Heathrow Heathrow Delivery121.980
London Heathrow Heathrow Ground 2121.705
London Heathrow Heathrow Ground 3121.855
London Heathrow Heathrow Ground 1121.905
London Heathrow Heathrow Tower 3124.475
London Heathrow Heathrow Tower 1118.505
London Heathrow Heathrow Tower 2118.705
London Heathrow Heathrow Director 4120.400
London Heathrow Heathrow Director 1119.730
London Heathrow Heathrow Director 2134.980
London Heathrow Heathrow Director 3127.525
London Heathrow Heathrow Control 4119.780
London Heathrow Heathrow Control 1118.825
London Heathrow Heathrow Control 5133.180
London Heathrow Heathrow Control 2120.530
London Heathrow Heathrow Control 3134.125

Approach frequencies

ILS-cat-IIIRW09L110.318.00mi
ILS-cat-IIIRW09R109.518.00mi
ILS-cat-IIIRW27L109.518.00mi
ILS-cat-IIIRW27R110.318.00mi
3° GSRW09L110.318.00mi
3° GSRW09R109.518.00mi
3° GSRW27L109.518.00mi
3° GSRW27R110.318.00mi
Nearby Points of Interest:
Longford Meeting House
-
Wraysbury and Hythe End Gravel Pits
-
Kneller Hall
-
The Angel
-
Windmill Bridge
-
London International College
-
Iver Grove
-
The Cottage
-
Chertsey Abbey
-
Garrick's Temple to Shakespeare
-
Garrick's Villa
-
Chapel in the Wood
-
Strawberry Hill House
-
Town Hall
-
Twickenham War Memorial
-
Rose and Crown
-
Beaumont College
-
York House
-
Hillingdon House
-
isleworth
-
Hillingdon Court
-
Founder's Building
-
Bushy House
-
Wharncliffe Viaduct
-
Hillingdon Civic Centre

Runway info

Runway 09L / 27R
 length3892m (12769ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceasphalt
 displ threshold306m (1004ft) / 0m (0ft)
 blast zone0m (0ft) / 55m (180ft)
Runway 09R / 27L
 length3651m (11978ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceasphalt
 displ threshold306m (1004ft) / 0m (0ft)
 blast zone0m (0ft) / 28m (92ft)

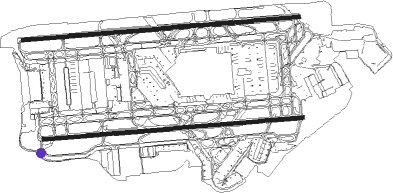

Airport layout - taxiway location S11


Taxiway locations

 A  A1  A10E  A10W  A2  A3  A4  A5
 A6  A7  A8  A9E  A9W  AB11  AB12  AB13
 B  C  D  E  F  G  K  L
 L53  LA  LINK11  LINK12  LINK13  LINK22  LINK23  LINK25
 LINK27  LINK28  LINK30  LINK31  LINK32  LINK33  LINK34  LINK35
 LINK36  LINK41  LINK42  LINK43  LINK51  LINK53  LINK56  LINK57
 LINK58  N  N10  N11  N4E  N4W  N5E  N5W
 N6  N7  N8  NB10  NB11  NB8  R  S
 S1  S11  S3  S4W  S5W  S6  SB3  SB7
 T  W  Y
Parking locations

 209  209L  209R  210  210L  210R  211  212
 212L  212R  213  213L  213R  216  217  218
 218L  218R  219  220  221  221L  221R  223
 224  225  226  231  232  233  233L  233R
 236  236L  236R  238  239  241  242  243
 243L  243R  244  246  246L  246R  247  247L
 247R  248  249  251  252  253  253L  253R
 254  254L  254R  255  255L  255R  256  257
 258  258L  258R  301  303  303L  303R  305
 305L  305R  307  309  311  313  316  317
 318  319  320  321  322  323(constr)  325(constr)  326
 327  328  329  330  331  332  334  335
 336  340  340L  340R  342  351  353  355
 357  357L  357R  363  364  365  401  402
 403  405  406  407  408  409  410  410L
 410R  411  412  414  415  416  417  419
 420  421  422  423  424  425  429  430
 431  432  440  441  449  450  451  452
 453  454  455  456  457  457L  457R  458
 461  501  502  503  505  506  507  508
 509  511  512  513  514  515  516  517
 518  519  520  521  522  523  524  525
 526  527  531  532  533  534  535  536
 537  538  539  541  542  543  544  544L
 544R  545  545L  545R  546  546L  546R  547
 547L  547R  548  548L  548R  551  552  553
 554  555  556  557  558  561  562  563
 564  565  566  567  568  572  573  575
 576  581  582  583  590  591  592  594
 595  596  601  602  603  604  605  606
 607  608  609  611  612  613  614  615
 616  701  702  703  Maintenance  TA1  TA2  TA3
 TA4  TA5  TA6  TC1  TE1  TE2  TF3  TF4
 TF5

Nearby beacons

codeidentifierdistbearingfrequency
LONLONDON VOR/DME1.6329°113.60
EPMEPSOM NDB9151°316
BURBURNHAM NDB9.1284°421
OCKOCKHAM VOR/DME9.4178°115.30
CHTCHILTERN NDB9.9337°277
WODWOODLEY NDB16269°352
BNNBOVINGDON VOR/DME16.2340°113.75
BLCDME16.9251°116.20
BLKBLACKBUSHE NDB16.9251°328
LCYLONDON CITY NDB19.585°322
BIGBIGGIN VOR/DME19.8105°115.10
BPKBROOKMANS PARK VOR/DME21.550°117.50
HENHENTON NDB21.8311°433
ODHODIHAM TACAN23.1245°109.60
LAMLAMBOURNE VOR/DME2573°115.60
MIDMIDHURST VOR/DME25.3203°114
BSOBENSON TACAN25.8283°110
LUTLUTON NDB2725°345
CPTCOMPTON VOR/DME28.7272°114.35
WCOWESTCOTT NDB30.2307°335
MAYMAYFIELD VOR/DME34.2128°117.90
BKYBARKWAY VOR/DME36.944°116.25
SHMSHOREHAM NDB38166°332
SRHDME-ILS38166°109.95
GWCGOODWOOD VOR/DME38.2207°114.75
OXOXFORD NDB39.4293°367
CITCRANFIELD NDB40.3351°850
DETDETLING VOR/DME40.499°117.30
SNDSOUTHEND NDB43.584°362
HLSDME45.3106°115.95
LSHHEADCORN (LASHENDEN) NDB45.3106°340
SAMSOUTHAMPTON VOR/DME45.3240°113.35
EASSOUTHAMPTON (EASTLEIGH) NDB45.6241°391
SFDSEAFORD VOR/DME47.3141°117
DTYDAVENTRY VOR/DME49.6317°116.40
CAMCAMBRIDGE NDB50.740°332
LYDLYDD VOR/DME57.2109°114.05
LZDLYDD NDB60.4110°397
CLNCLACTON VOR/DME63.976°114.55
MLDMILDENHALL TACAN64.346°115.90
WTZWATTISHAM TACAN65.165°109.30
LKHLAKENHEATH TACAN67.747°110.20
DVRDOVER VOR/DME70.399°114.95

Departure and arrival routes

Transition altitude6000ft
Transition level70ft
SID end pointsdistanceoutbound heading
RW09L
 ULTI1K14mi41°
 DET1K40mi99°
 MAY2K34mi128°
 MODM1K14mi189°
 GASG2K24mi243°
 CPT4K29mi272°
RW09R
 ULTI1J14mi41°
 DET1J40mi99°
 MAY2J34mi128°
 MODM1J14mi189°
 GASG2J24mi243°
 CPT5J29mi272°
RW27L
 DET2G40mi99°
 MAY2G34mi128°
 MAXI1G13mi207°
 GOGS2G23mi253°
 CPT3G29mi272°
 UMLA1G16mi311°
RW27R
 DET2F40mi99°
 MAY3F34mi128°
 MAXI1F13mi207°
 GOGS2F23mi253°
 CPT3F29mi272°
 UMLA1F16mi311°

STAR starting pointsdistanceinbound heading
ALL
 ROXO1H83.243°
 HAZE1H33.949°
 OTME1H90.869°
 BEDE1H28.478°
 BEDE1Z41.885°
 HON1H70.0126°
 FITB1H38.5127°
 TOBI1X58.9127°
 NUGR1H116.1130°
 BARM1H127.3251°
 LAM1Y, LAM1Z, LAM1X25.0253°
 LOGA2H78.8262°
 TANE1Z51.5271°
 ALES1H58.8296°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALES1HBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
ALES1HTIGERVHFright135 (315)°15000ft - 24000ft1.5min timedICAO rules
BARM1HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
BARM1HLAMNDBleft83 (263)°> 7000ft1.0min timed220
BARM1HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
BARM1HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
BEDE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
BEDE1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
BIG1ZOCKNDBright148 (328)°> 7000ft1.0min timed220
FITB1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
FITB1HFITBOVHFright315 (135)°18000ft - 29000ft1.5min timedICAO rules
FITB1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
HAZE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
HON1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
HON1HHONNDBright325 (145)°15000ft - 35000ft1.5min timed240
HON1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
LAM1XBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
LAM1YOCKNDBright148 (328)°> 7000ft1.0min timed220
LAM1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
LOGA2HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
LOGA2HLAMNDBleft83 (263)°> 7000ft1.0min timed220
LOGA2HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
LOGA2HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
NUGR1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
NUGR1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
OCK1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
OTME1HOCKNDBright148 (328)°> 7000ft1.0min timed220
ROXO1HOCKNDBright148 (328)°> 7000ft1.0min timed220
TANE1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
TOBI1XOCKNDBright148 (328)°> 7000ft1.0min timed220
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
