Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

airliner airport terminal flight airfield traffic pattern consulate plane commuter asphalt field stol helipad concrete port control tower aerodrome frankfurt airport airborne airport traffic city

Airports for X-Plane

London - London Heathrow

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityLondon
Elevation83ft (25m)
TimezoneGMT +0
Coordinates51.46229, -0.45141
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeEGLL
IATA codeLHR
FAA coden/a

Communication

London Heathrow Heathrow ATIS128.080
London Heathrow Heathrow Delivery121.980
London Heathrow Heathrow Ground 1121.905
London Heathrow Heathrow Ground 2121.705
London Heathrow Heathrow Ground 3121.855
London Heathrow Heathrow Tower 1118.505
London Heathrow Heathrow Tower 2118.705
London Heathrow Heathrow Tower 3124.475
London Heathrow Heathrow Director 2134.980
London Heathrow Heathrow Director 3127.525
London Heathrow Heathrow Director 4120.400
London Heathrow Heathrow Director 1119.730
London Heathrow Heathrow Control 2120.530
London Heathrow Heathrow Control 3134.125
London Heathrow Heathrow Control 4119.780
London Heathrow Heathrow Control 1118.825
London Heathrow Heathrow Control 5133.180

Approach frequencies

ILS-cat-IIIRW09L110.318.00mi
ILS-cat-IIIRW09R109.518.00mi
ILS-cat-IIIRW27L109.518.00mi
ILS-cat-IIIRW27R110.318.00mi
3° GSRW09L110.318.00mi
3° GSRW09R109.518.00mi
3° GSRW27L109.518.00mi
3° GSRW27R110.318.00mi
Nearby Points of Interest:
Longford Meeting House
-
Wraysbury and Hythe End Gravel Pits
-
Kneller Hall
-
The Angel
-
Windmill Bridge
-
London International College
-
Iver Grove
-
The Cottage
-
Chertsey Abbey
-
Garrick's Temple to Shakespeare
-
Garrick's Villa
-
Chapel in the Wood
-
Strawberry Hill House
-
Town Hall
-
Twickenham War Memorial
-
Rose and Crown
-
Beaumont College
-
York House
-
Hillingdon House
-
isleworth
-
Hillingdon Court
-
Founder's Building
-
Bushy House
-
Wharncliffe Viaduct
-
Hillingdon Civic Centre

Runway info

Runway 09L / 27R
 length3892m (12769ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceasphalt
 displ threshold306m (1004ft) / 0m (0ft)
 blast zone0m (0ft) / 55m (180ft)
Runway 09R / 27L
 length3651m (11978ft)
 bearing90° / 270°
 width50m (164ft)
 surfaceasphalt
 displ threshold306m (1004ft) / 0m (0ft)
 blast zone0m (0ft) / 28m (92ft)

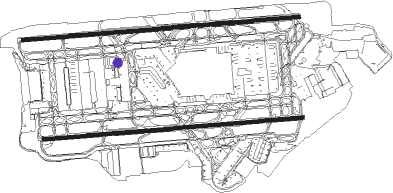

Airport layout - parking location 596


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
LONLONDON VOR/DME1.6329°113.60
EPMEPSOM NDB9151°316
BURBURNHAM NDB9.1284°421
OCKOCKHAM VOR/DME9.4178°115.30
CHTCHILTERN NDB9.9337°277
WODWOODLEY NDB16269°352
BNNBOVINGDON VOR/DME16.2340°113.75
BLCDME16.9251°116.20
BLKBLACKBUSHE NDB16.9251°328
LCYLONDON CITY NDB19.585°322
BIGBIGGIN VOR/DME19.8105°115.10
BPKBROOKMANS PARK VOR/DME21.550°117.50
HENHENTON NDB21.8311°433
ODHODIHAM TACAN23.1245°109.60
LAMLAMBOURNE VOR/DME2573°115.60
MIDMIDHURST VOR/DME25.3203°114
BSOBENSON TACAN25.8283°110
LUTLUTON NDB2725°345
CPTCOMPTON VOR/DME28.7272°114.35
WCOWESTCOTT NDB30.2307°335
MAYMAYFIELD VOR/DME34.2128°117.90
BKYBARKWAY VOR/DME36.944°116.25
SHMSHOREHAM NDB38166°332
SRHDME-ILS38166°109.95
GWCGOODWOOD VOR/DME38.2207°114.75
OXOXFORD NDB39.4293°367
CITCRANFIELD NDB40.3351°850
DETDETLING VOR/DME40.499°117.30
SNDSOUTHEND NDB43.584°362
HLSDME45.3106°115.95
LSHHEADCORN (LASHENDEN) NDB45.3106°340
SAMSOUTHAMPTON VOR/DME45.3240°113.35
EASSOUTHAMPTON (EASTLEIGH) NDB45.6241°391
SFDSEAFORD VOR/DME47.3141°117
DTYDAVENTRY VOR/DME49.6317°116.40
CAMCAMBRIDGE NDB50.740°332
LYDLYDD VOR/DME57.2109°114.05
LZDLYDD NDB60.4110°397
CLNCLACTON VOR/DME63.976°114.55
MLDMILDENHALL TACAN64.346°115.90
WTZWATTISHAM TACAN65.165°109.30
LKHLAKENHEATH TACAN67.747°110.20
DVRDOVER VOR/DME70.399°114.95

Departure and arrival routes

Transition altitude6000ft
Transition level70ft
SID end pointsdistanceoutbound heading
RW09L
 ULTI1K14mi41°
 DET1K40mi99°
 MAY2K34mi128°
 MODM1K14mi189°
 GASG2K24mi243°
 CPT4K29mi272°
RW09R
 ULTI1J14mi41°
 DET1J40mi99°
 MAY2J34mi128°
 MODM1J14mi189°
 GASG2J24mi243°
 CPT5J29mi272°
RW27L
 DET2G40mi99°
 MAY2G34mi128°
 MAXI1G13mi207°
 GOGS2G23mi253°
 CPT3G29mi272°
 UMLA1G16mi311°
RW27R
 DET2F40mi99°
 MAY3F34mi128°
 MAXI1F13mi207°
 GOGS2F23mi253°
 CPT3F29mi272°
 UMLA1F16mi311°

STAR starting pointsdistanceinbound heading
ALL
 ROXO1H83.243°
 HAZE1H33.949°
 OTME1H90.869°
 BEDE1H28.478°
 BEDE1Z41.885°
 HON1H70.0126°
 FITB1H38.5127°
 TOBI1X58.9127°
 NUGR1H116.1130°
 BARM1H127.3251°
 LAM1Y, LAM1Z, LAM1X25.0253°
 LOGA2H78.8262°
 TANE1Z51.5271°
 ALES1H58.8296°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALES1HBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
ALES1HTIGERVHFright135 (315)°15000ft - 24000ft1.5min timedICAO rules
BARM1HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
BARM1HLAMNDBleft83 (263)°> 7000ft1.0min timed220
BARM1HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
BARM1HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
BEDE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
BEDE1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
BIG1ZOCKNDBright148 (328)°> 7000ft1.0min timed220
FITB1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
FITB1HFITBOVHFright315 (135)°18000ft - 29000ft1.5min timedICAO rules
FITB1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
HAZE1HOCKNDBright148 (328)°> 7000ft1.0min timed220
HON1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
HON1HHONNDBright325 (145)°15000ft - 35000ft1.5min timed240
HON1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
LAM1XBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
LAM1YOCKNDBright148 (328)°> 7000ft1.0min timed220
LAM1ZBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
LOGA2HBRASOVHFleft83 (263)°18000ft - 24000ft1.5min timed240
LOGA2HLAMNDBleft83 (263)°> 7000ft1.0min timed220
LOGA2HLOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
LOGA2HSABERVHFleft83 (263)°13000ft - 14000ft1.0min timed220
NUGR1HBNNNDBright296 (116)°> 7000ft1.0min timedICAO rules
NUGR1HWCOFIXright8 (188)°9000ft - 14000ft1.0min timed220
OCK1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
OTME1HOCKNDBright148 (328)°> 7000ft1.0min timed220
ROXO1HOCKNDBright148 (328)°> 7000ft1.0min timed220
TANE1ZBIGNDBright122 (302)°7000ft - 14000ft1.0min timed220
TOBI1XOCKNDBright148 (328)°> 7000ft1.0min timed220
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
