Airports for X-Plane

Cambridge

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityCambridgeshire
Elevation43ft (13m)
TimezoneGMT +0
Coordinates52.20500, 0.17500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGSC
IATA codeCBG
FAA coden/a

Communication

Cambridge Cambridge Info134.600
Cambridge Cambridge Tower125.900
Cambridge Cambridge Approach123.600
Cambridge Cambridge Radar124.975

Approach frequencies

ILS-cat-IRW23111.318.00mi
3° GSRW23111.318.00mi
Nearby Points of Interest:
Cherry Hinton Hall
-
Abbey House
-
Festival Theatre
-
Chesterton Hall
-
Goldie Boathouse
-
Scott Polar Research Institute
-
County Hall
-
Cambridge Medical School building
-
Cambridge Corn Exchange
-
Memorial Chapel, The Leys School
-
Cambridge Guildhall
-
William Stone Building
-
Quy Hall
-
Senate House
-
Pepys Library
-
Wren Library
-
Garret Hostel Bridge Between Clare Bridge And Trinity Bridge On The Cam
-
Newnham Grange
-
School of Pythagoras
-
Old Vicarage, Grantchester
-
Brent Ditch
-
Thriplow Meadows
-
Hardwick Wood
-
Spinney Abbey
-
Bourn Hall Clinic

Runway info

Runway 05 / 23
 length1956m (6417ft)
 bearing63° / 243°
 width46m (151ft)
 surfaceasphalt
 displ threshold211m (692ft) / 143m (469ft)
Runway 05R / 23L
 length898m (2946ft)
 bearing63° / 243°
 width35m (115ft)
 surfacegrass
Runway 10 / 28
 length698m (2290ft)
 bearing96° / 276°
 width35m (115ft)
 surfacegrass

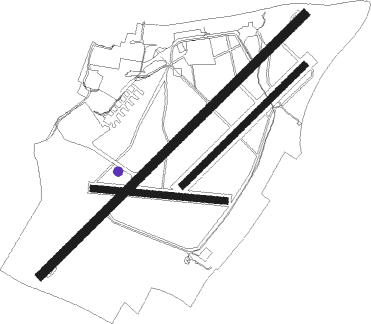

Airport layout - taxiway location D


Taxiway locations

 A  B  C  D  J  L  M  U
 V
Parking locations

 Customs  GA  Marshall  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
CAMCAMBRIDGE NDB0.455°332
BKYBARKWAY VOR/DME13.5208°116.25
MLDMILDENHALL TACAN14.963°115.90
LKHLAKENHEATH TACAN18.262°110.20
LUTLUTON NDB24.4234°345
CITCRANFIELD NDB27.3264°850
WTZWATTISHAM TACAN28.696°109.30
BPKBROOKMANS PARK VOR/DME29.2212°117.50
MAMMARHAM TACAN3041°108.70
LAMLAMBOURNE VOR/DME33.5182°115.60
WITWITTERING TACAN34.5301°117.60
BNNBOVINGDON VOR/DME39.3237°113.75
CLNCLACTON VOR/DME41.8110°114.55
LCYLONDON CITY NDB42.2189°322
SNDSOUTHEND NDB42.4140°362
CHTCHILTERN NDB43.3230°277
HENHENTON NDB44.6245°433
WCOWESTCOTT NDB47253°335
DTYDAVENTRY VOR/DME47.4269°116.40
LONLONDON VOR/DME49.2222°113.60
LELEICESTER NDB50.4288°383
BURBURNHAM NDB51.9231°421
BIGBIGGIN VOR/DME52.7189°115.10
CGYCONINGSBY TACAN54.6339°111.10
CWLCRANWELL NDB54.9321°423
CWZCRANWELL TACAN55321°117.40
DETDETLING VOR/DME56.3155°117.30
EPMEPSOM NDB56.9212°316
OCKOCKHAM VOR/DME58.7215°115.30
BSOBENSON TACAN59245°110
WODWOODLEY NDB59.7234°352
WADWADDINGTON TACAN63324°117.10
BLCDME65.1229°116.20
BLKBLACKBUSHE NDB65.1229°328
ODHODIHAM TACAN71.8229°109.60

Departure and arrival routes

Transition altitude6000ft
STAR starting pointsdistanceinbound heading
ALL
 BKY1X13.528°
 TELT1L90.634°
 AVAN1L93.039°
 BEDE1L81.564°
 SILV1L48.673°
 FINM1L47.080°
 BARM2A89.4263°
 RINI1A81.2278°
 XAMA1A79.8282°
 TOSV1A77.1286°
 LOGA2A59.8288°
 ABOT1Z19.3294°
 DET2A56.3335°
 BANV1L102.0341°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05BEPOX (74°)BEPOX 3000ft
SC05I (4mi, 91°) 2000ft
 RNAVSC05I 2000ft
SC05F (3mi, 62°) 1600ft
EGSC (5mi, 63°) 86ft
(3135mi, 180°) 1600ft
CAM (3136mi, 0°) 2000ft
CAM (turn)
RW23GOPOD (262°)GOPOD 3000ft
SC23I (5mi, 306°) 2000ft
RW23TIPGO (214°)TIPGO 3000ft
SC23I (5mi, 126°) 2000ft
 RNAVSC23I 2000ft
SC23F (4mi, 243°) 1700ft
EGSC (6mi, 243°) 87ft
(3135mi, 180°) 2000ft
CAM (3136mi, 0°) 2000ft
CAM (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABOT1ZABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
ABOT1ZLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
AVAN1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
AVAN1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BANV1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
BANV1LUNDUGVHFright139 (319)°20000ft - 24000ft1.5min timed240
BANV1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BARM2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
BARM2ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
BEDE1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
BEDE1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BKY1XABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
BPK1XABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
DET2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
FINM1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
FINM1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
LIST1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
LIST1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
LOGA2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
LOGA2ALOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
RINI1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
RINI1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
SILV1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
SILV1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
TELT1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
TELT1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
TOSV1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
TOSV1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
XAMA1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
XAMA1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
*) magnetic outbound (inbound) holding course
