Airports for X-Plane

London - London Stansted

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityUttlesford
Elevation348ft (106m)
TimezoneGMT +0
Coordinates51.88500, 0.23500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGSS
IATA codeSTN
FAA coden/a

Communication

London Stansted Stansted Information127.180
London Stansted Stansted Delivery121.955
London Stansted Stansted Ground121.730
London Stansted Stansted Tower123.805
London Stansted Stansted Tower125.550
London Stansted Essex Radar120.625

Approach frequencies

ILS-cat-IIIRW04110.518.00mi
ILS-cat-IIIRW22110.518.00mi
3° GSRW04110.518.00mi
3° GSRW22110.518.00mi
Nearby Points of Interest:
Stansted Hall
-
Portingbury Hills
-
Hatfield Forest
-
Stansted Mountfitchet Windmill
-
Orford House
-
Barrington Hall
-
Boar's Head Inn
-
Horham Hall
-
Sawbridgeworth Marsh
-
Aythorpe Roding Windmill
-
Berden Priory
-
Patmore Heath
-
Debden Water SSSI
-
St Leonard's Church, Sandridge
-
West Wood, Little Sampford
-
Town Hall
-
Hunsdon House
-
Plashes Wood
-
Hare Street House
-
Hunsdon Mead
-
Hales and Shadwell Woods
-
Duck End Mill
-
Youngsbury
-
Spains Hall
-
Blake Hall

Runway info

Runway 04 / 22
 length3051m (10010ft)
 bearing56° / 236°
 width46m (151ft)
 surfaceasphalt
 displ threshold303m (994ft) / 0m (0ft)
 blast zone0m (0ft) / 9m (30ft)

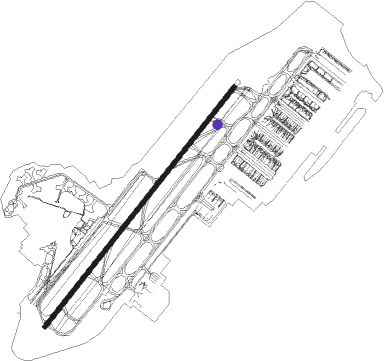

Airport layout - taxiway location Q1


Taxiway locations

 G  G1  H  H1  H3  J  K1  K3
 L1  L3  N1  N3  PR  Q1  QR  R1
 R3  S1  S3  U  V1  V3  W3
Parking locations

 Fayair  GA  Hanger  Harrod's  Inflite  Ryanair  Stand  Titan

Nearby beacons

codeidentifierdistbearingfrequency
BKYBARKWAY VOR/DME8.9301°116.25
LAMLAMBOURNE VOR/DME14.6199°115.60
BPKBROOKMANS PARK VOR/DME15248°117.50
LUTLUTON NDB18271°345
CAMCAMBRIDGE NDB19.6351°332
LCYLONDON CITY NDB23.6204°322
SNDSOUTHEND NDB25.3124°362
WTZWATTISHAM TACAN29.771°109.30
MLDMILDENHALL TACAN30.228°115.90
BNNBOVINGDON VOR/DME30.6259°113.75
CHTCHILTERN NDB32.1251°277
CITCRANFIELD NDB32.7287°850
LKHLAKENHEATH TACAN33.331°110.20
CLNCLACTON VOR/DME33.992°114.55
BIGBIGGIN VOR/DME34.1200°115.10
LONLONDON VOR/DME35.3240°113.60
DETDETLING VOR/DME37.4148°117.30
HENHENTON NDB38.7263°433
BURBURNHAM NDB40.4248°421
EPMEPSOM NDB40.8227°316
OCKOCKHAM VOR/DME43.1230°115.30
WCOWESTCOTT NDB44.4268°335
HLSDME46.5150°115.95
LSHHEADCORN (LASHENDEN) NDB46.5150°340
MAMMARHAM TACAN47.323°108.70
WODWOODLEY NDB48.9249°352
WITWITTERING TACAN51.1315°117.60
BSOBENSON TACAN52.2259°110
MAYMAYFIELD VOR/DME52.3188°117.90
BLCDME52.5243°116.20
BLKBLACKBUSHE NDB52.5243°328
DTYDAVENTRY VOR/DME52.8282°116.40
LYDLYDD VOR/DME58.3144°114.05
CPTCOMPTON VOR/DME59255°114.35
ODHODIHAM TACAN59241°109.60
MIDMIDHURST VOR/DME59.3226°114
LZDLYDD NDB61.5143°397
LELEICESTER NDB63.7300°383

Departure and arrival routes

Transition altitude6000ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW04
 CLN4S34mi92°
 DET1D, DET1S37mi148°
 LAM2S15mi199°
 NUGB1S12mi286°
 UTAV1S13mi287°
 BKY2S15mi321°
RW22
 CLN1E, CLN8R34mi92°
 DET1R37mi148°
 LAM3R15mi199°
 NUGB1R12mi286°
 UTAV1R13mi287°
 BKY5R11mi311°

STAR starting pointsdistanceinbound heading
ALL
 TELT1L74.443°
 AVAN1L77.648°
 BEDE1L73.674°
 SILV1L46.088°
 FINM1L48.195°
 ABOT1Z15.6250°
 BARM2A93.0256°
 RINI1A77.3269°
 XAMA1A74.0273°
 LOGA2A51.7276°
 TOSV1A69.4276°
 DET2A37.4328°
 BANV1L82.8339°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABOT1ZABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
ABOT1ZLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
AVAN1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
AVAN1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BANV1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
BANV1LUNDUGVHFright139 (319)°20000ft - 24000ft1.5min timed240
BANV1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BARM2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
BARM2ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
BEDE1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
BEDE1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
BKY1XABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
BPK1XABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
DET2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
FINM1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
FINM1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
LIST1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
LIST1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
LOGA2AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
LOGA2ALOGANVHFleft108 (288)°15000ft - 41000ft1.5min timed240
RINI1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
RINI1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
SILV1LBOMBOVHFleft271 (91)°< 14000ftDME 5.0mi220
SILV1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
TELT1LLORELVHFleft8 (188)°> 7000ftDME 4.0mi220
TELT1LVATONVHFleft205 (25)°18000ft - 20000ft1.5min timed240
TOSV1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
TOSV1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
XAMA1AABBOTVHFright85 (265)°8000ft - 14000ftDME 6.0mi220
XAMA1ALAPRAVHFright64 (244)°15000ft - 21000ft1.5min timed240
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
