Airports for X-Plane

Eindhoven

Airport details

CountryNetherlands
StateNorth Brabant
RegionEH
AirspaceAmsterdam Ctr
MunicipalityEindhoven
Elevation75ft (23m)
TimezoneGMT +1
Coordinates51.44489, 5.37551
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEHEH
IATA codeEIN
FAA coden/a

Communication

Eindhoven ATIS126.030
Eindhoven Ground Control121.930
Eindhoven Tower122.100
Eindhoven Tower131.005
Eindhoven Approach124.530
Eindhoven Approach122.100
Eindhoven Approach123.180

Approach frequencies

ILS-cat-IRW21109.7518.00mi
ILS-cat-IRW03109.7518.00mi
3° GSRW21109.7518.00mi
3° GSRW03109.7518.00mi
Nearby Points of Interest:
Berkt 50, Zandoerle
-
Vilderstraat 1, Veldhoven
-
statue of Sacred Heart of Jesus Christ
-
Constant Rebecque Kazerne
-
Batalaan 5, Best
-
Armenhoef
-
Witte Dame
-
stella
-
De Admirant
-
Lichttoren (Light tower)
-
Water Mill at Gennep
-
Dommelstraat 9, Eindhoven
-
Kasteel Oud Bijsterveld
-
Klooster Mariënhage, Eindhoven
-
De Laak (villa)
-
Dr. A.F. Philips Observatorium
-
Dommelhoef
-
Old Tower
-
H.H. Andreas en Antonius van Paduakerk
-
Brouwerij De Kroon
-
Villa Kortonjo
-
Torenstraat 1, Oirschot
-
Nutsschool Reigerlaan, Eindhoven
-
Rooms-Katholieke Begraafplaats
-
De Bult

Runway info

Runway 03 / 21
 length2998m (9836ft)
 bearing48° / 228°
 width45m (148ft)
 surfaceasphalt
 displ threshold243m (797ft) / 243m (797ft)

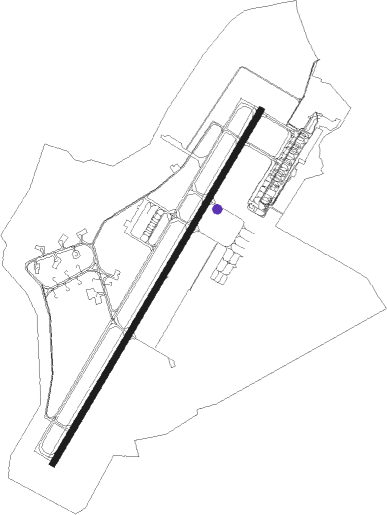

Airport layout - taxiway location L3


Taxiway locations

 HOOK  K  L1  L2  L3  L4  L5  P
 R  R1  R2  R3  R4  R5  R6  R7
Parking locations

 Cargo  Mil  New  R1  Ramp  S1  S10  S11
 S12  S2  S3  S4  S5  S6  S7  S8
 S9

Nearby beacons

codeidentifierdistbearingfrequency
EHVEINDHOVEN TACAN0.1350°117.20
BBLKLEINE BROGEL TACAN16.9162°109.60
VKLVOLKEL TACAN17.658°108.30
GZRGILZE-RIJEN TACAN18285°116.40
BUNBRUNO VOR/DME28239°110.60
NIDDME3079°115.50
LAANIEDERRHEIN NDB31.279°352
NWMAASTRICHT NDB31.7130°373
ONWANTWERP NDB34.6251°355
FLOFLORA VOR/DME35.3203°112.05
MASMAASTRICHT VOR/DME35.9129°108.60
ANTANTWERP (DEURNE) VOR/DME37.1254°113.50
GIXGEILENKIRCHEN TACAN38.3126°108.10
FRTDME40.4313°117.15
DLNDEELEN TACAN41.139°112.20
OPBRUSSELS NATIONAL NDB42.3237°402
OBBRUSSELS NDB42.5235°293
ONLLIEGE NDB45.1167°290
BUBBRUSSELS VOR/DME45.3237°114.60
RTMROTTERDAM VOR/DME46301°110.40
BBEBEAUVECHAIN TACAN47.2221°116
HTBBEAUVECHAIN NDB47.3221°381
LGELIEGE VOR/DME47.6173°115.45
HULHULDENBERG VOR/DME50.1227°117.55
OZBRUSSELS NATIONAL NDB50.5236°314
LNOOLNO VOR/DME53.1159°112.80
PAMPAMPUS VOR/DME54.4342°117.80
SPISPRIMONT VOR/DME56.6165°113.10
SPLSCHIPHOL (AMSTERDAM) VOR/DME58.1325°108.40
AMSDME58.8323°113.95
SLVSPA NDB61.5151°386
ONCCHARLEROI NDB65.2221°323
GSYGOSLY (CHARLEROI) VOR/DME69.2223°115.70

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW03
 TENL2J58mi47°
 VELN2J31mi84°
 OSGO3J26mi116°
 LNO5J53mi159°
 ELSI3J21mi236°
 WOOD5J38mi268°
 ABNE2J86mi280°
 PESE3J33mi281°
 TULI6J79mi301°
 INKE4J32mi301°
 EH741mi352°
RW21
 TENL2K58mi47°
 VELN4K31mi84°
 OSGO4K26mi116°
 LNO6K53mi159°
 ELSI4K21mi236°
 WOOD1S, WOOD5K38mi268°
 ABNE2K, ABNE2S86mi280°
 PESE4K, PESE1S33mi281°
 TULI2S, TULI6K79mi301°
 INKE1S, INKE4K32mi301°
 EH541mi352°

STAR starting pointsdistanceinbound heading
ALL
 ELSI2E20.656°
 HELE6E57.882°
 DENU2E65.683°
 COA5E75.987°
 REDF4E114.5103°
 LAMS4E117.0118°
 INKE3E31.6121°
 MOLI4E118.6121°
 TOPA4E135.0137°
 LOPI2E30.5153°
 RUME2E21.7251°
 ROTE3E29.3256°
 OSGO2E25.6296°
 LNO4E53.1339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YIPT2D (6°)IPTAS
EH582 (4mi, 100°)
EH595 (7mi, 196°) 4000ft
RUSAL (8mi, 196°)
ERSUL (5mi, 114°) 2000ft
RW03-YOKL2D (6°)OKLOV
EH589 (8mi, 231°)
DERUV (5mi, 238°)
SOMEM (9mi, 238°)
EH588 (8mi, 259°) 4000ft
MITSA (3mi, 259°)
ERSUL (5mi, 293°) 2000ft
RW03-YRUM2D (6°)RUMER
EH590 (2mi, 204°)
DERUV (9mi, 204°)
SOMEM (9mi, 238°)
EH588 (8mi, 259°) 4000ft
MITSA (3mi, 259°)
ERSUL (5mi, 293°) 2000ft
RW03-YSOP2D (6°)SOPVI
EH586 (5mi, 289°)
EH587 (4mi, 289°)
SOMEM (3mi, 289°)
EH588 (8mi, 259°) 4000ft
MITSA (3mi, 259°)
ERSUL (5mi, 293°) 2000ft
 RNAVERSUL 2000ft
EH573 (2mi, 48°) 2000ft
EHEH (6mi, 50°) 124ft
EH550 (4mi, 45°) 2000ft
EHOJI (3mi, 228°) 3000ft
EHOJI (turn) 3000ft
RW03-ZMITSA (8°)MITSA 2000ft
ERSUL (5mi, 293°) 2000ft
RW03-ZTILVU (105°)TILVU 2000ft
RUSAL (8mi, 167°)
ERSUL (5mi, 114°) 2000ft
 RNAVERSUL 2000ft
EH573 (2mi, 48°) 2000ft
EHEH (6mi, 50°) 124ft
EH550 (4mi, 45°) 2000ft
EHOJI (3mi, 228°) 3000ft
EHOJI (turn) 3000ft
RW21-YIPT2F (6°)IPTAS
EH582 (4mi, 100°)
EH594 (5mi, 91°)
BESTI (3mi, 75°) 4000ft
GILIV (5mi, 113°) 2000ft
RW21-YOKL2F (6°)OKLOV
EH589 (8mi, 231°)
DERUV (5mi, 238°)
GEMTI (8mi, 301°) 4000ft
GILIV (5mi, 294°) 2000ft
RW21-YRUM2F (6°)RUMER
EH591 (1mi, 238°)
VENAV (3mi, 238°)
EH596 (4mi, 238°)
GEMTI (3mi, 301°) 4000ft
GILIV (5mi, 294°) 2000ft
RW21-YSOP2F (6°)SOPVI
EH585 (6mi, 335°)
DERUV (7mi, 335°)
GEMTI (8mi, 301°) 4000ft
GILIV (5mi, 294°) 2000ft
 RNAVGILIV 2000ft
EH567 (4mi, 228°) 2000ft
EHEH (7mi, 226°) 117ft
EH558 (3mi, 232°) 2000ft
EHOJI (4mi, 48°) 3000ft
EHOJI (turn) 3000ft
RW21-ZBESTI (195°)BESTI 2000ft
GILIV (5mi, 113°) 2000ft
RW21-ZGEMTI (249°)GEMTI 2000ft
GILIV (5mi, 294°) 2000ft
 RNAVGILIV 2000ft
EH567 (4mi, 228°) 2000ft
EHEH (7mi, 226°) 117ft
EH558 (3mi, 232°) 2000ft
EHOJI (4mi, 48°) 3000ft
EHOJI (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
COA5EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
DENU2EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
ELSI2EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
HELE6EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
INKE3EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
LAMS4EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
LNO4EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
LOPI2EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
MOLI4EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
OSGO2EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
REDF4EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
ROTE3EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
RUME2EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
TOPA4EEHOJIVHFleft213 (33)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
