Airports for X-Plane

Rotterdam - Rotterdam The Hague

Airport details

CountryNetherlands
StateSouth Holland
RegionEH
AirspaceAmsterdam Ctr
MunicipalityRotterdam
Elevation-15ft (-5m)
TimezoneGMT +1
Coordinates51.95694, 4.43722
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEHRD
IATA codeRTM
FAA coden/a

Communication

Rotterdam The Hague Rotterdam Information128.565
Rotterdam The Hague Rotterdam Delivery122.180
Rotterdam The Hague Rotterdam Tower118.205
Rotterdam The Hague Rotterdam Tower VDF119.705
Rotterdam The Hague Rotterdam Approach122.990
Rotterdam The Hague Rotterdam Departure119.055

Approach frequencies

ILS-cat-IRW06109.118.00mi
ILS-cat-IRW24110.918.00mi
3° GSRW06109.118.00mi
3° GSRW24110.918.00mi
Nearby Points of Interest:
De Tempel estate
-
Bergpolderflat
-
Giraffenhuis en theeschenkerij
-
Berentheater met dienstgebouwen
-
Bergdierenrots
-
Rijksmonumenten in Diergaarde Blijdorp
-
Rivièrahal
-
Speelgebouw
-
Roofdierenverblijf (Diergaarde Blijdorp)
-
Administratiegebouw (Diergaarde Blijdorp)
-
Van Nelle Factory
-
Ungerpleinflat
-
Courthouse Noordsingel
-
Stopplaats Beukelsdijk
-
Kasteel Hilligersberg
-
Schiekade 77
-
Vrouwe Groenevelt's Liefdegesticht
-
Groothandelsgebouw
-
Station postal building
-
Bouwcentrum
-
Heineken Building
-
Justus van Effencomplex
-
Thalia
-
Rotterdam City Hall
-
Proveniershuis, Schiedam

Runway info

Runway 06 / 24
 length2194m (7198ft)
 bearing68° / 248°
 width45m (148ft)
 surfaceasphalt
 displ threshold194m (636ft) / 197m (646ft)

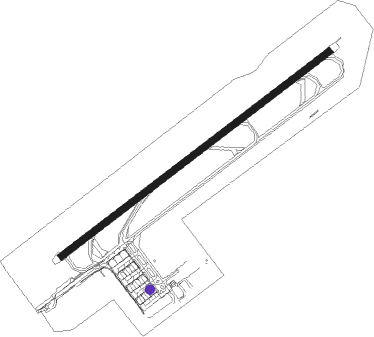

Airport layout - parking location D3


Taxiway locations

 J  V  V1  V2  V3  V4  V5  V6
 Y
Parking locations

 A1  A2  A3  B1  B2  B3  C1  C2
 C3  D1  D2  D3  F  Jet  the

Nearby beacons

codeidentifierdistbearingfrequency
RTMROTTERDAM VOR/DME1.969°110.40
FRTDME12.682°117.15
AMSDME24.636°113.95
SPLSCHIPHOL (AMSTERDAM) VOR/DME25.340°108.40
GZRGILZE-RIJEN TACAN29.8128°116.40
WDTWOENSDRECHT TACAN30.7190°115
PAMPAMPUS VOR/DME33.160°117.80
SPYDME38.236°113.30
ANTANTWERP (DEURNE) VOR/DME46177°113.50
EHVEINDHOVEN TACAN46.3118°117.20
ONWANTWERP NDB47.6171°355
NIKNICKY VOR/DME48.4198°117.40
BUNBRUNO VOR/DME52.5154°110.60
HDRHELDER DME58.319°115.55
MAKMACKEL NDB69.2223°360

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW06
 ANDI2A56mi47°
 LUNI2A43mi82°
 ARNE3A61mi85°
 NEPT2A35mi93°
 INKE2A15mi113°
 WOOD2A33mi187°
 COA2A54mi241°
 SOME2A, SOM2AY47mi265°
 TUL4AY, TULI4A33mi305°
RW24
 ANDI2B56mi47°
 LUNI2B43mi82°
 ARNE3B61mi85°
 NEPT2B, NEP2BY35mi93°
 INK2BY, INKE2B15mi113°
 WOO2BY, WOOD2B33mi187°
 COA2BY, COA2B54mi241°
 SOM2BY, SOME2B47mi265°
 TUL3BY, TULI3B33mi305°

STAR starting pointsdistanceinbound heading
ALL
 HELE4R48.238°
 DENU2R52.147°
 COA2R54.461°
 REDF3R72.695°
 LAMS3R70.5118°
 MOLI3R72.2122°
 TOPP3R92.4149°
 ENKO3R52.4228°
 EEL3R108.9242°
 RKN3R86.5266°
 SONE3R86.1268°
 INKE2R15.0293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06DOFMU (42°)DOFMU
RD201 (4mi, 323°)
HELHO (4mi, 11°) 2000ft
RW06MASOS (79°)MASOS
RD254 (12mi, 79°)
HELHO (11mi, 89°) 2000ft
 RNAVHELHO 2000ft
RD250 (4mi, 68°) 2000ft
EHRD (6mi, 68°) 36ft
RD212 (9mi, 69°) 2000ft
RD213 (5mi, 134°)
KAKKO (7mi, 248°)
DOFMU (15mi, 243°) 2000ft
RW24DOFMU (42°)DOFMU
KAKKO (15mi, 63°)
REWIK (10mi, 64°) 2000ft
RD203 (3mi, 353°)
ATWIT (4mi, 267°) 2000ft
RW24MASOS (79°)MASOS
KAKKO (36mi, 84°)
REWIK (10mi, 64°) 2000ft
RD203 (3mi, 353°)
ATWIT (4mi, 267°) 2000ft
 RNAVATWIT 2000ft
RD252 (3mi, 248°) 2000ft
EHRD (7mi, 249°) 35ft
RD214 (13mi, 248°) 2000ft
DOFMU (7mi, 134°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
COA2RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
DENU2RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
EEL3RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
EEL3RKAKKOVHFright206 (26)°> 2000ft1.0min timed230
ENKO3RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
ENKO3RKAKKOVHFright206 (26)°> 2000ft1.0min timed230
HELE4RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
INKE2RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
INKE2RKAKKOVHFright206 (26)°> 2000ft1.0min timed230
LAMS3RMASOSVHFleft18 (198)°> 5000ft1.0min timed230
MOLI3RMASOSVHFleft18 (198)°> 5000ft1.0min timed230
REDF3RMASOSVHFleft18 (198)°> 5000ft1.0min timed230
RKN3RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
RKN3RKAKKOVHFright206 (26)°> 2000ft1.0min timed230
SONE3RDOFMUVHFright154 (334)°> 2000ft1.0min timed230
SONE3RKAKKOVHFright206 (26)°> 2000ft1.0min timed230
TOPP3RMASOSVHFleft18 (198)°> 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
