Airports for X-Plane

Limerick - Shannon

Airport details

CountryIreland
StateCounty Clare
RegionEI
AirspaceShannon Ctr
MunicipalityShannon Municipal District
Elevation41ft (12m)
TimezoneGMT +0
Coordinates52.70195, -8.92472
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEINN
IATA codeSNN
FAA coden/a

Communication

Shannon ATIS130.950
Shannon Ground Control121.800
Shannon Tower118.700
Shannon Approach121.400

Approach frequencies

ILS-cat-IIRW24110.9518.00mi
ILS-cat-IRW06109.518.00mi
3° GSRW06109.518.00mi
3° GSRW24110.9518.00mi
Nearby Points of Interest:
The Burren
-
Shantraud Ogham-Runic Stone

Runway info

Runway 06 / 24
 length3190m (10466ft)
 bearing65° / 245°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 143m (469ft)

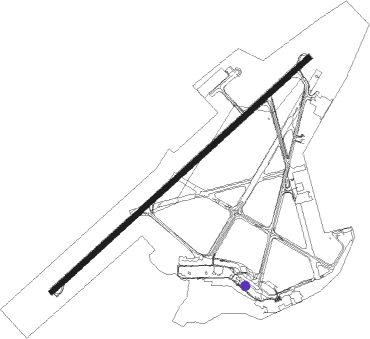

Airport layout - parking location 26C


Taxiway locations

 A  C  D1  D2  E3  G
Parking locations

 11A  11B  11C  21  22  23  24  24A
 24B  25  25A  25B  25C  26A  26B  26C
 26D  26E  26F  27  27A  28  30  32
 34  37  39  41  42  43  9  GA
 SAR  Westair

Nearby beacons

codeidentifierdistbearingfrequency
SHASHANNON VOR/DME1.864°113.30
OLSHANNON NDB4.665°339
FOYFOYNES NDB12.7243°395
KERKERRY NDB38.1229°334
CRKCORK VOR/DME54153°114.60

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW06
 AGIN3A30mi37°
 DIGA3A30mi72°
 TOMT3A30mi77°
 ABAG3A48mi99°
 LUNI3A30mi115°
 KURU3A30mi151°
 UNBE3A30mi277°
 ERAB3A30mi296°
 MOMI3A30mi311°
RW24
 AGIN3B30mi37°
 PELI3B65mi73°
 OSGA3B63mi78°
 ABAG3B48mi99°
 LUNI3B30mi115°
 KURU3B30mi151°
 BUNO3B30mi242°
 LUPO3B30mi258°
 UNBE3B30mi277°
 ERAB3B30mi296°
 MOMI3B30mi311°

STAR starting pointsdistanceinbound heading
RW06
 BUNO2E29.962°
 LUPO2E29.978°
 UNBE2E29.997°
 ERAB2E29.9116°
 MOMI2E29.9131°
 AGIN2E29.9217°
 RIKU2E29.9238°
 DIGA2E29.9252°
 TIPU2E29.9278°
 KURU2E29.9331°
RW24
 BUNO3D29.962°
 LUPO3D29.978°
 UNBE3D29.997°
 ERAB3D29.9116°
 MOMI3D29.9131°
 AGIN2D29.9217°
 RIKU2D29.9238°
 DIGA2D29.9252°
 TIPU2D29.9278°
 KURU2D29.9331°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGIN2DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
AGIN2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
BUNO2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
BUNO3DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
BUNO3DEKNISVHFleft254 (74)°> 3500ft1.0min timedICAO rules
DIGA2DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
DIGA2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
ERAB2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
ERAB3DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
ERAB3DEKNISVHFleft254 (74)°> 3500ft1.0min timedICAO rules
KURU2DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
KURU2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
LUPO2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
LUPO3DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
LUPO3DEKNISVHFleft254 (74)°> 3500ft1.0min timedICAO rules
MOMI2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
MOMI3DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
MOMI3DEKNISVHFleft254 (74)°> 3500ft1.0min timedICAO rules
RIKU2DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
RIKU2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
TIPU2DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
TIPU2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
UNBE2EELPOMVHFleft236 (56)°3000ft - 14000ft1.0min timed220
UNBE3DDERAGVHFright57 (237)°3000ft - 14000ft1.0min timed220
UNBE3DEKNISVHFleft254 (74)°> 3500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
