Airports for X-Plane

Copenhagen - Kastrup

Airport details

CountryDenmark
StateCapital Region of Denmark
RegionEK
AirspaceCopenhagen Ctr
MunicipalityTårnby Kommune
Elevation17ft (5m)
TimezoneGMT +1
Coordinates55.61792, 12.65597
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEKCH
IATA codeCPH
FAA coden/a

Communication

Kastrup ATIS122.850
Kastrup ATIS122.750
Kastrup Clearance Delivery119.900
Kastrup Apron121.900
Kastrup Apron121.625
Kastrup Apron121.725
Kastrup Tower (departure)119.350
Kastrup Tower (arrival)118.100
Kastrup Tower118.575
Kastrup Tower (VFR)118.700
Kastrup Final120.205
Kastrup Arrival118.455
Kastrup Approach119.805
Kastrup Departure124.980
Kastrup Departure120.255

Approach frequencies

ILS-cat-IIIRW22L109.518.00mi
ILS-cat-IIRW04L110.518.00mi
ILS-cat-IRW30108.918.00mi
ILS-cat-IRW04R109.318.00mi
ILS-cat-IRW22R110.918.00mi
ILS-cat-IRW12109.918.00mi
3° GSRW30108.918.00mi
3° GSRW04L110.518.00mi
3° GSRW12109.918.00mi
3° GSRW22L109.518.00mi
3° GSRW22R110.918.00mi
3° GSRW04R109.318.00mi

Runway info

Runway 04R / 22L
 length3296m (10814ft)
 bearing57° / 237°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 0m (0ft)
Runway 04L / 22R
 length3595m (11795ft)
 bearing57° / 237°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 601m (1972ft)
 blast zone50m (164ft) / 0m (0ft)
Runway 12 / 30
 length3091m (10141ft)
 bearing110° / 290°
 width45m (148ft)
 surfaceasphalt
 displ threshold733m (2405ft) / 270m (886ft)

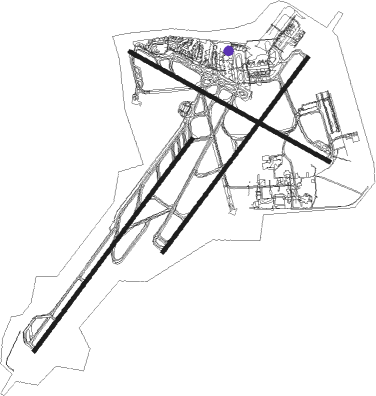

Airport layout - parking location C27


Taxiway locations

 A  A1  A11  A2  A3  A4  A5  A6
 A7  A8  A9  B  C  D  E2  E3
 E4  F  F1  F2  G1  G2  I  K
 K1  L  N2  R  S  V1  Y  Z
Parking locations

 A11  A12  A14  A15  A17  A18  A20  A21
 A22  A23  A25  A26  A27  A28  A30  A31
 A32  A33  A34  A4  A6  A7  A8  A9
 B10  B15  B16  B19  B4  B6  B7  B8
 B9  C27  C28  C29  C30  C32  C33  C34
 C35  C36  C37  C39  D1  D2  D3  D4
 E22  E27  E33  E36  E70  E72  E73  E75
 E76  E77  E78  F1  F4  F5  F7  F8
 F89  F9  F90  F91  F92  F93  F94  F95
 F96  F98  G112  G113  G114  G121  G124  G127
 G130  G133  G136  H102

Nearby beacons

codeidentifierdistbearingfrequency
KASKASTRUP (COPENHAGEN) VOR/DME2.1237°112.50
BELDME21.6287°114.65
RKROSKILDE (COPENHAGEN) NDB22.3270°368
SUPSTURUP (MALMO) VOR/DME2597°113
SVDDME33.2352°116.20
LJULJUNGBYHED VOR/DME33.450°113.40
CDACODAN VOR/DME38.2204°114.90
AHANGELHOLM NDB39.721°417
LBANGELHOLM NDB43.99°370

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW04L
 ASTO1E32mi31°
 KEMA1E41mi57°
 SIME1E36mi114°
 BALO1E44mi127°
 BETU1E37mi192°
 NEXE1E60mi232°
 KOPE1E56mi241°
 LANG1E74mi250°
 ODN2E68mi269°
 MIKS2E50mi299°
 GOLG2E54mi307°
 VEDA2E58mi330°
RW04R
 ASTO3A32mi31°
 KEMA4A41mi57°
 SIME7A36mi114°
 BALO4A44mi127°
 BETU1A37mi192°
 NEXE1A60mi232°
 KOPE1A56mi241°
 LANG1A74mi250°
 ODN2A68mi269°
 MIKS2A50mi299°
 GOLG2A54mi307°
 VEDA3A58mi330°
RW12
 ASTO4B32mi31°
 KEMA5B41mi57°
 SIME8B36mi114°
 BALO5B44mi127°
 BETU2B37mi192°
 NEXE2B60mi232°
 KOPE2B56mi241°
 LANG2B74mi250°
 ODN2B68mi269°
 MIKS2B50mi299°
 GOLG2B54mi307°
 VEDA2B58mi330°
RW22L
 ASTO1F32mi31°
 KEMA1F41mi57°
 SIME1F36mi114°
 BALO1F44mi127°
 BETU1F37mi192°
 NEXE1F60mi232°
 KOPE1F56mi241°
 LANG1F74mi250°
 ODN1F68mi269°
 MIKS1F50mi299°
 GOLG1F54mi307°
 VEDA1F58mi330°
RW22R
 ASTO3C32mi31°
 KEMA4C41mi57°
 SIME8C36mi114°
 BALO4C44mi127°
 BETU1C37mi192°
 NEXE1C60mi232°
 KOPE1C56mi241°
 LANG1C74mi250°
 ODN1C68mi269°
 MIKS1C50mi299°
 GOLG1C54mi307°
 VEDA1C58mi330°
RW30
 ASTO4D32mi31°
 KEMA5D41mi57°
 SIME8D36mi114°
 BALO5D44mi127°
 BETU2D37mi192°
 NEXE2D60mi232°
 KOPE2D56mi241°
 LANG2D74mi250°
 ODN2D68mi269°
 MIKS2D50mi299°
 GOLG2D54mi307°
 VEDA2D58mi330°

STAR starting pointsdistanceinbound heading
RW04L
 MONA1M, MONA2E42.027°
 TUDL2E, TUDL1M60.180°
 TESP1M, TESP2E59.998°
 ERNO1E, ERNO1M33.2172°
 TIDV1M, TIDV1E33.0283°
RW04R
 MONA2A38.224°
 TUDL2A60.180°
 TESP2A59.998°
 ERNO1A33.2172°
 TIDV1A33.0283°
RW12
 MONA2B42.027°
 TUDL2B60.180°
 TESP2B59.998°
 ERNO1B33.2172°
 TIDV1B33.0283°
RW22L
 MONA2F, MONA1N42.027°
 TUDL2F, TUDL1N60.180°
 TESP1N, TESP2F59.998°
 ERNO1N, ERNO1F33.2172°
 TIDV1N, TIDV1F33.0283°
RW22R
 MONA2C42.027°
 TUDL2C60.180°
 TESP2C59.998°
 ERNO1C33.2172°
 TIDV1C33.0283°
RW30
 MONA2D38.224°
 TUDL2D60.180°
 TESP2D59.998°
 ERNO1D33.2172°
 TIDV1D33.0283°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ERNO1AERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1BERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1CERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1DERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1EERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1FERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1MERNOVVHFleft359 (179)°> 10000ft1.5min timed230
ERNO1NERNOVVHFleft359 (179)°> 10000ft1.5min timed230
MONA1MCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA1NCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2ACDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2BCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2CCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2DCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2ECDANDBright212 (32)°3500ft - 14000ft1.0min timed230
MONA2FCDANDBright212 (32)°3500ft - 14000ft1.0min timed230
TESP1MROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP1NROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2AROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2BROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2CROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2DROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2EROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TESP2FROSBIVHFleft283 (103)°3500ft - 30000ft1.0min timed230
TIDV1ATIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1BTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1CTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1DTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1ETIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1FTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1MTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TIDV1NTIDVUVHFright113 (293)°> 5000ft1.5min timed230
TUDL1MLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL1NLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2ALUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2BLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2CLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2DLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2ELUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
TUDL2FLUGASVHFleft253 (73)°3500ft - 30000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
